Introduction
Olympic Regulation Rink Ice Arena Steel Building

Size: 19,700m2
Wall System: Sandwich Panel
Wall Color: Polar White & Midnight Black
Roof System: Al-Mg-Mn Standing Seam
Roof Color: Galvalume
End Use: National Regulation Ice Arena Steel Building

Olympic_Regulation_Rink_Ice_Arena_Steel_Building_4_great-park-ice-2


Olympic_Regulation_Rink_Ice_Arena_Steel_Building_1_great-park-ice-4


Olympic_Regulation_Rink_Ice_Arena_Steel_Building_2_great-park-ice-1


This massive 37160m2 warehouse utilizes one gable symmetrical 150m x 240m framing system. Many framed openings are integrated into the structure’s design for windows and 20 vertical lift doors for shipping and receiving.Olympic Regulation Rink Ice Arena Steel Building

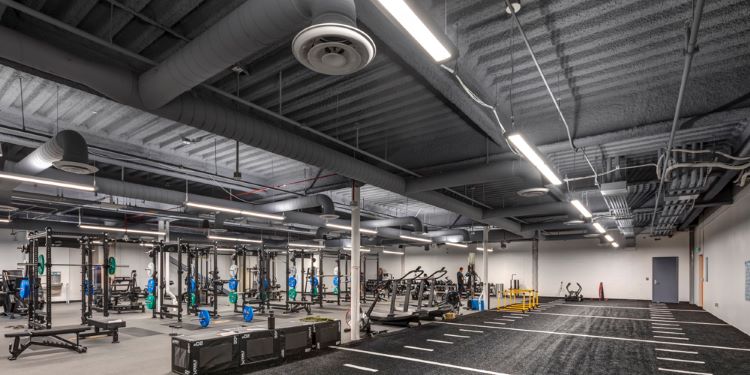

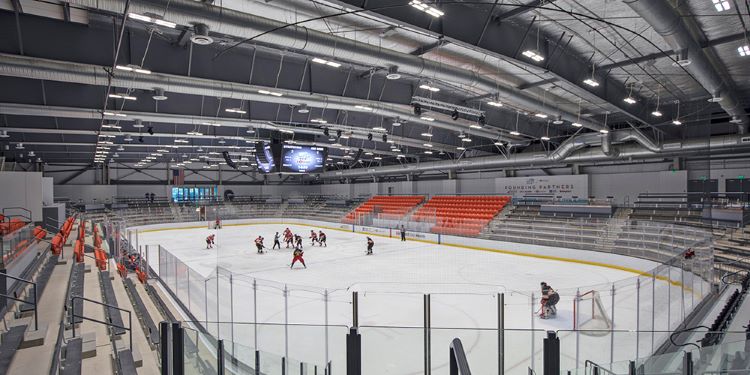

This incredible steel building facility features three indoor regulation ice rinks and one Olympic regulation rink. The rinks serve as the training facility for the professional team,  and offer public skating, skate lessons, curling, youth and adult hockey. Additionally, there is an in-house pro shop, indoor gym, restaurant, and bar and café within the facility.

It consists of two ZHM Huawu pre-engineered metal buildings, with a full mezzanine. One of the buildings, housing the Olympic-size rink and two international standard rinks, is a 67m x 129m x 10.7m clear span structure. The other, an arena with an  international standard rink and 2,500 seat capacity, is also a clear span building measuring 51m x 86m x 11.6m . Due to housing four ice rinks and keeping the building at a constant 55 degrees in Southern, the facility was designed similar to a cold storage facility by utilizing ZHM Huawu Insulated Metal Wall Panels to keep the interior temperature at that temperature. In addition, a steel buckling restrained brace system was utilized for this large of a facility. The braces are steel tubes that have a bar inside encased in concrete that create the brace.

This project was featured in a case study.


Olympic_Regulation_Rink_Ice_Arena_Steel_Building_3_great-park-ice-3


Olympic_Regulation_Rink_Ice_Arena_Steel_Building_5_great-park-ice-5

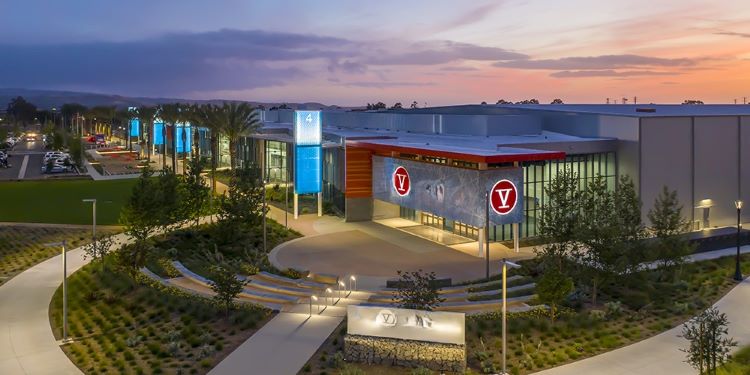

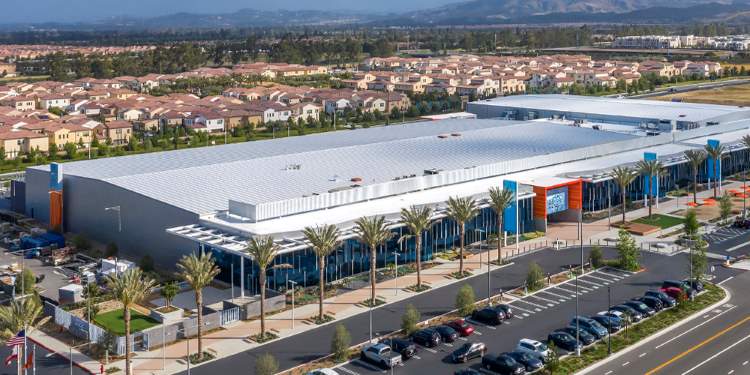

Exterior wall panels feature a split color combination with polar white above and midnight black below. The facility is enclosed using Al-Mg-Mn Standing Seam roof system in galvalume.
