Introduction

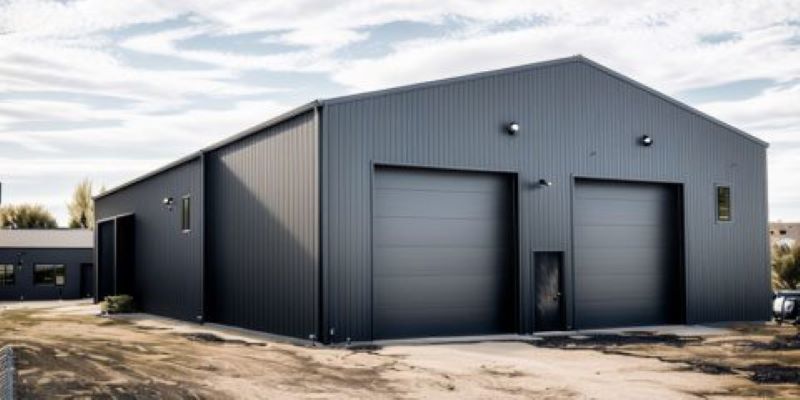

40x60 Metal Garage Shop | Customize & Compare Quotes


This 40' x 60' x 16' metal garage offers 2,400 square feet of unobstructed clearspan floor space and can comfortably store six vehicles with an additional 400 square feet of storage/workspace. The building is fitted with (2) 14' x 14' overhead doors, (2) 3070 walk doors and (10) windows.

Dimensions: 40' (W) x 60' (L) x 16' (H)

Choose your custom options for this garage and get competing quotes from local suppliers.


40x60 Metal Garage Shop | Customize & Compare Quotes

40x60 Metal Garage Shop | Customize & Compare Quotes


2,400 sq. ft. | 1-6 Cars I-Beam Steel Made in China

Available color options



Mix and match siding, roof, trim and wainscot colors for a custom look or to complement your existing structures.

30x40 Metal Garage (base model) | Custom Kit Packages: Available color options



Garage features


Start your project by customizing the base 30x40 metal building kit package to create a garage that meets your needs for access and functionality.

Get exactly the 30x40 garage you need by specifying height, roof style and pitch, exterior finishes, color, door and window sizes, and types.

By configuring these options, you can create a garage that meets your storage or workshop needs and complements your existing structures.


Similar Top selling products


Below are some of our most popular garage designs, showing various door configurations for typical setups. You can customize any of these to meet your specific size, access, and style requirements.

Popular garage sizes include: 30x40, 30x50 and 40x60.

Unsure what size you need? See our sample garage plans for inspiration and layout ideas.


30x40 Metal Garage Base Model

30x40 Metal Garage Base Model

30x40 Garage Kit With Workshop

30x40 Garage Kit With Workshop

30x40 Garage with Loft

30x40 Garage with Loft




30x40 Workshop Garage 2 Bay Taupe

30x40 Workshop Garage 2 Bay Taupe

30x40x12 Motor Home Garage Colony Green

30x40x12 Motor Home Garage Colony Green

30x40x12 Garage Office Classic

30x40x12 Garage Office Classic




30x40x9 Metal Garage 3 Car Detached Side Wall Desert Sand

30x40x9 Metal Garage 3 Car Detached Side Wall Desert Sand

30x40x14 Large Drive Through Garage Black

30x40x14 Large Drive Through Garage Black

30x40x9 Modetal Garage Lean to quaker Gray

30x40x9 Modetal Garage Lean to quaker Gray




30x40x10 3-car Garage side wall gray

30x40x10 3-car Garage side wall gray

30x40x9 Metal Garage 3-car Brown

30x40x9 Metal Garage 3-car Brown

30x40x10 Base steel Garage Building Colony green

30x40x10 Base steel Garage Building Colony green




30x40x9 Metal Garage 2 bay front beige

30x40x9 Metal Garage 2 bay front beige

30x50x12 Garage kit Gray

30x50x12 Garage kit Gray

30x50x10 Garage Drive Through

30x50x10 Garage Drive Through




30x50x12 Garage lean-to Black

30x50x12 Garage lean-to Black

30x50x12 3-bay garage loft blue

30x50x12 3-bay garage loft blue

30x50x10 Garage  Shop 2 Bay

30x50x10 Garage  Shop 2 Bay




30x50x14 Metal Garage 4 Bay Bronze

30x50x14 Metal Garage 4 Bay Bronze

30x50x12 RV Garage

30x50x12 RV Garage

40x60x10 Commercial Garage Building Gray

40x60x10 Commercial Garage Building Gray




40x60x12 Garage drive through

40x60x12 Garage drive through

30x40x10 Garage Shop 2 Bay Front Wall Green

30x40x10 Garage Shop 2 Bay Front Wall Green

Metal_Garage Kits_Premium_Steel_Garages_Buildings_25_40x60x14-commercial-garage-4-bay-233

40x60x14 Commercial Garage 4 Bay




40x60x14 Steel Garage

40x60x14 Steel Garage

40x60x18 Metal Garage Shop

40x60x18 Metal Garage Shop

40x60x16 Garage Loft

40x60x16 Garage Loft





All metal building kits





 What is a 'Red Iron' garage?


Red iron buildings are a notch above your typical metal buildings. They are engineered with commercial-grade steel I-beams and securely bolted together on-site for lasting durability. Each one is custom-designed to meet local building codes, handling up to 160 MPH wind and 110 PSF snow loads. Unlike simpler tubular structures, these are made from high-quality steel, designed for long-term use with low maintenance, and have warranties of 30+ years.

Customer garage projects


30x40 Double Garage GT West

30x40 Double Garage GT West

30x40x12 3-Car Metal Garage GT West

30x40x12 3-Car Metal Garage GT West



30x40-Detachedd Garage

30x40-Detachedd Garage

3-Bay-Detached Garage

3-Bay-Detached Garage

Why choose a metal garage kit?


Steel garage buildings are a durable, cost-effective, and low-maintenance alternative to traditional 'stick-built' buildings.

Compared to a pole barn, you get to maximize your floor plan with 100% usable, column-free space.Their trussless roof design also provides loft space for additional storage, an office, or an apartment.

The roof can easily be engineered to support a winch or crane for auto maintenance etc.

Precision engineering ensures your building goes together without a hitch the first time. The easy bolt-together framing enables fast install times for both DIY and professional projects.

Unlike tubular carport-style metal garages, 'Red Iron' buildings add value to your property, are engineered to meet all local codes, and can be certified for occupancy should you want to add living quarters.

  • Fast, simple assembly
  • Custom manufactured
  • Near-zero maintenance
  • Adds value to your property
  • Improved fire resistance
  • Cost effective compared to wood
  • Engineered to meet all local codes
  • Easily expanded for future growth

Garage features


Start your project by customizing a standard-size metal building kit package to create a space that meets your specifications for access and functionality.

You get exactly the garage you need by specifying height, roof style and pitch, exterior finishes, colors, door and window sizes, and types.

By configuring these options, you can create a space that meets your storage or workshop requirement and complements your existing buildings.


Garage packages include:


Steel I-Beam framing
Steel roof & wall panels (26ga)
Complete trim package
Two framed door openings
Foundation anchor bolt plans
Engineer stamped plans
Kit delivery
Installation instructions
All bolts, flashing & sealants

Metal Steel Frame Garage



Metal building features


Bolt-up construction
Trussless roof design
Clearspan widths to 300'
Certified to 160 MPH wind
Certified to 110 PSF snow
30+ year warranty
Fast, free delivery
Fast build & times



Custom options:


 Doors - Choose overhead garage doors, rollup, sliding or bifold door options.
Roof profile & pitch - Adjust the gable roof pitch or select a single-slope, gambrel, or monitor profile
Insulation - Opt for vinyl-faced fiberglass, spray foam, or insulated metal panels (IMPs).
Structural upgrades - Add porches, overhangs, a carport lean-to, or a mezzanine for loft storage.
Colors - Mix & match siding, roof, trim, and wainscot color options for a custom look.



Items not included:


Permits
Foundation
Installation
Insulation
Interior build out


How much do metal garages cost?


The average turnkey cost to erect a metal garage ranges from $25 to $45 per square foot. This includes the kit, foundation and installation costs. Our 2-car metal garages start at $26,100, 3-car at $34,800, and 4-car at $43,500.

Costs vary based on your location, the number and size of overhead doors, and the level of interior finishing required.


Nine ways to save on metal buildings


Based on conversations with our previous customers, contractors, and suppliers, here are some quick tips to help you save on your new steel building.

1. Shop around. With so many suppliers offering different deals, getting quotes from multiple suppliers is essential. Also, most suppliers offer free shipping, so you don’t need to buy locally if you don’t want to.

2. DIY. If manageable, erecting the structure yourself can lead to substantial savings. Most people can reduce the total cost by approximately 20% to 30% by taking on this task.

3. Simplify the design. Opt for a straightforward design. Complex designs necessitate extra steel and more engineering effort, increasing the final cost of your new build.

38x42x12 RV Garage GT Two bay garage/shop

Two bay garage/shop

4. Minimize expensive design changes. As with any large project, careful planning is critical; overlooking current requirements can lead to unexpected future expenses. Once production starts, making changes can be costly.

5. Choose a basic roof style and low pitch. A single-slope roof with a 1:12 pitch is the most economical choice. Like the design aspect mentioned earlier, intricate roof styles like monitor and gambrel require additional materials and engineering time. A gable roof with a 2:12 pitch strikes the perfect balance for most buyers.

6. Minimize door and window openings. Framed openings should be kept to the bare minimum as their costs accumulate rapidly. Also, opt for standard-sized options wherever possible, preferably those that are easily obtainable in your local area.

7. Reduce the height. Try to be realistic about the height of your steel garage; the higher you go, the more materials are required, which will, in turn, increase the price. The additional space will also impact your heating, ventilation, and air-conditioning (HVAC) expenses.

8. Plan ahead for expansion. Red iron buildings can be expanded later if you specify ‘expandable end walls’ on your initial order. If you fail to do this, the expenditure of adding additional bays later will be significantly more expensive due to the additional engineering required.

9. Schedule off-season installation.  Schedule construction in early spring or late autumn to save on contractor fees, especially in colder climates where these times are more cost-effective than summer.



30x40 Metal Garage Shop

30' x 40' Shop/garage

TIP: Choose as large a garage as your budget and space will allow. The #1 complaint we hear is, ‘I wish I had opted for a slightly larger size.’

Pitfalls to avoid when buying a garage


Pre-engineered metal buildings are known for their affordability, durability, and fast install times. However, attention to specific details is essential for a successful project and a space that fulfills your requirements.

Not thoroughly planning the project. Avoid rushing the planning phase. Carefully consider all design elements to prevent costly modifications, budget overruns, and delays.

Ignoring local codes. Engage early with local authorities to prevent zoning or code violations, which could lead to legal issues.

Hiring the wrong contractors. Ensure the crew you hire has substantial experience installing pre-engineered buildings. Proper vetting is crucial.


Collapsed Steel Carport Garages


Don't let this happen to you!



Not comparing apples to apples. When comparing prices, ensure you're evaluating similar quality kits. Prefab metal buildings come in different grades. Cheaper options often found in online retail or big-box stores use tubular framing, which lacks commercial-grade steel I-beam frames' durability and load-bearing capacity. Remember, opting for a less expensive option means compromising on longevity, strength, and possibly safety.

Overlooking the importance of the foundation. A weak foundation is the leading cause of failure in pre-engineered buildings. It's crucial to hire a certified structural engineer for the slab design and choose a reputable concrete installation company.

Overlooking future growth. Anticipate potential growth. Including "expandable end walls" in your initial order is more economical than making modifications later.

Insulation and ventilation oversight. Proper insulation and ventilation are crucial for maintaining energy efficiency. Neglecting these can cause heat and moisture build-up, potentially damaging the framing and siding.

Buying purely on price. Steel garage kits vary in price and quality. Be wary of suppliers who pressure for quick sales. Avoid making hasty decisions based on cost alone. Instead, obtain detailed written quotes from at least three suppliers and compare them thoroughly.

Questions to ask yourself before buying


After helping customers plan, configure, and purchase metal garages for over twenty years, here are some of the most important points to consider.

How many vehicles do I need to store? Allow 240 square feet for cars and 300 square feet for medium-sized trucks. This provides two feet of clearance on either side of the vehicle and three feet down the length. We recommend creating a floor plan to visualize your intended layout.


Do I need additional workshop or storage space for garden equipment, tools, ATVs, boats, etc.?


What is the maximum height of the vehicle I need to park? Add 2 feet above the door opening to the eave height for steel garages. For example, an 8-foot door requires a 10-foot eave height.


Will you require a half bathroom? (allow approx. 25 sq ft)

30x60 RV Garage Floor Plan



Will you need office space? (allow approx. 80-120 sq ft)


Layout for PEMB with office and half bathroom


30' x 60' Garage with office & half bathroom


Do you need a second-story loft apartment or storage area? If so, choose a 16’ to 20’ height and install a mezzanine level.


Do you need heat? The most economical option is installing radiant underfloor heating, propane, or a natural gas convection heater. For 2-car garages, you will need approx. 35,000 BTUs, and for 3-car, you will need a 45,000 BTU system. For a low-cost option, consider a pellet stove.


Will you be washing cars inside? Then, plan to have floor drains installed in each bay for drainage.


Do you have (or will have) an electric vehicle? Consider running a 230-volt 40 Amp service to charge an EV.


Metal garage building installation


Here is a brief overview of the build project; for additional details, see our article on how to plan, design, and build a garage.


Site prep and concrete foundations


Before erecting your new building, you must prep the site, including grading, clearing, etc.

All garages will typically require a concrete slab. Although it is possible to have a dirt floor (if required), only piers are required in this case. For light loads, such as one to two light cars or trucks, the concrete should be at least four inches(100mm) thick, and for medium loads, such as one to two medium-sized trucks, a thickness of six inches(150mm) is recommended.
Concrete Slab Foundation For Metal Building

Concrete Slab Foundation For Metal Building



Construction options


When it comes to erecting your building, you have three options.

Do-it-yourself (DIY). We only advise going this route on smaller buildings and if you have previous experience.
Self-manage. You will hire and manage the various sub-trades to erect the building.
Hire a General Contractor (GC). A GC will manage the entire project on your behalf, from pulling permits and installation to the final inspection
Steel Garage Carport Installation

Steel Garage Carport Installation



Interior finishing


The final stage will include running utilities and adding insulation.

If you plan on having a separate bathroom, office, or shop space, these can be framed out using either 2x4 wood studs or steel studs and finished with drywall.

Alternatively, you could install a mezzanine to provide a loft area. If this is a requirement, plan for an eave height of 14 to 16 feet.
Metal Garage Building Mezzanine

Metal Garage Building Mezzanine




Garage kits FAQ


What is a typical garage height?

With a metal garage building, the height is measured at the eave. As a rule of thumb, you will need 2 feet above your highest opening. So for cars and trucks, you will need an 8-foot overhead door plus 2 feet to give you an eave height of 10 feet. For oversized vehicles, you will most likely need 12-14 feet.

What roof pitches are available for metal buildings?

Our steel building kits come with either a 1:12 or 2:12 pitch. Steeper pitches up to 6:12 are available as a special order.

Are other exterior finishes available?



Yes, our buildings can be customized with alternate exterior finishes to the standard PBR panels. Options include stucco, brick/stone veneer, and insulated metal panels (IMP). Please note that it is essential you discuss this option with your salesperson or project manager in advance to ensure that your steel building is appropriately engineered for these modifications. Retrofitting or remodelling a steel building isn't straightforward.

What are the lead times on metal buildings?

The timeframe for delivery is influenced by its size, complexity, and type, among other variables. Typical lead times can range from 30 to 90 days.
