ZHM Huawu Steel manufactured and delivered a pre-engineered multiuse metal building in January 2022. Now part of a retail center, the clear-span steel building contains versatile flex space well-suited for retail, office, warehouse or other uses.

The flex space building was designed to offer rentable units to businesses in the area, giving tenants the freedom to tailor each space to their unique needs.  The units can be used as warehouse, retail, or office space.  Each unit offers a variety of windows, roll-up doors and storefront doors.  The complex also features awnings above the doors and windows to create shade and add charm to the exterior façade.

Building Specifications

The multi-use metal building is comprised of (3) separate buildings constructed together as follows.

Building A: 16m width x 70m length x5.7m/7m Height; single-slope roof with a 1:12 roof pitch
Building B: 23m width x61m length x6.3m/8.2m; single-slope roof with a 1:12 roof pitch
Building C: 3.7m width x18m length x5.3/5.7m; single-slope roof with a 1:12 roof pitch

Distributed among them are (16) framed door openings; (9) 3070 commercial walk doors and (7) 3m x3.6m overhead garage-style doors.

The buildings are equal parts fashionable and functional, sporting a combination of Polar White and Ash Gray exterior paint and Charcoal Gray trim. They were engineered to follow a 144-mph wind load and a 3.5-psf roof snow load requirement by the local jurisdiction.

These attractive, contemporary additions to the local landscape are a boon for area businesses, acting as centers for both commerce and community engagement.

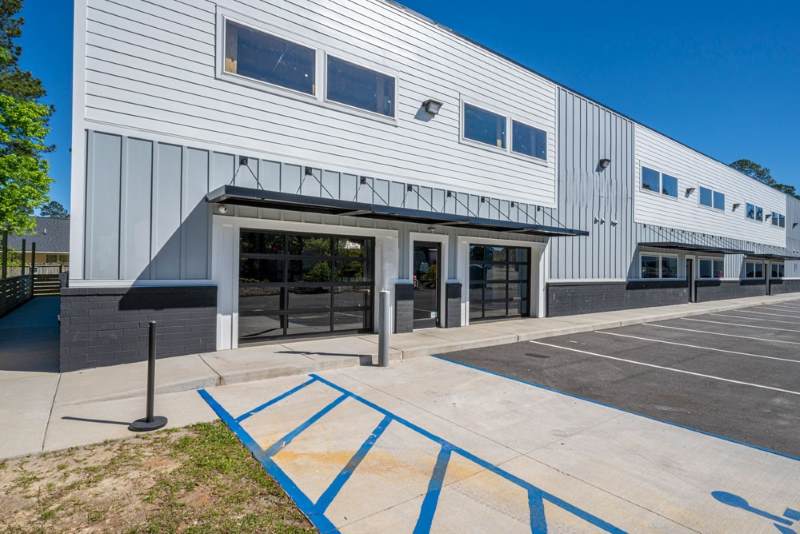

Prefabricated Steel Flex Space Building For Multiuse: Front Door View

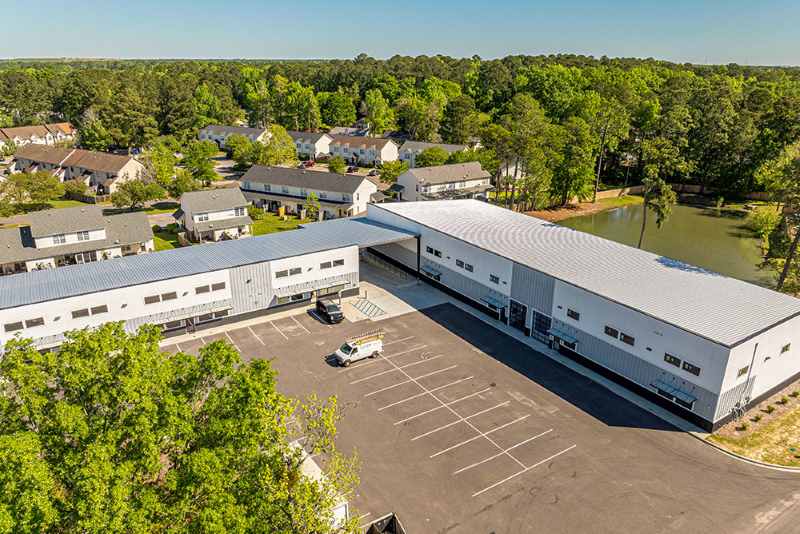

Prefabricated Steel Flex Space Building For Multiuse: Bird View

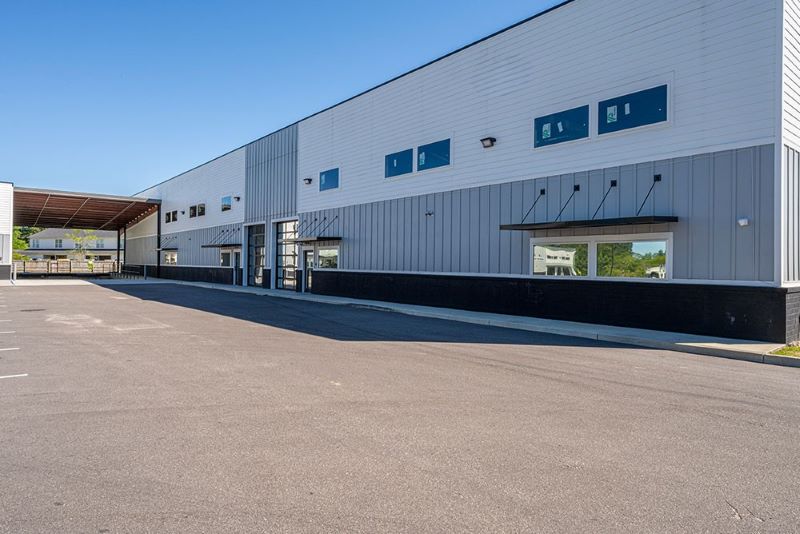

Prefabricated Steel Flex Space Building For Multiuse: Side View Elevation

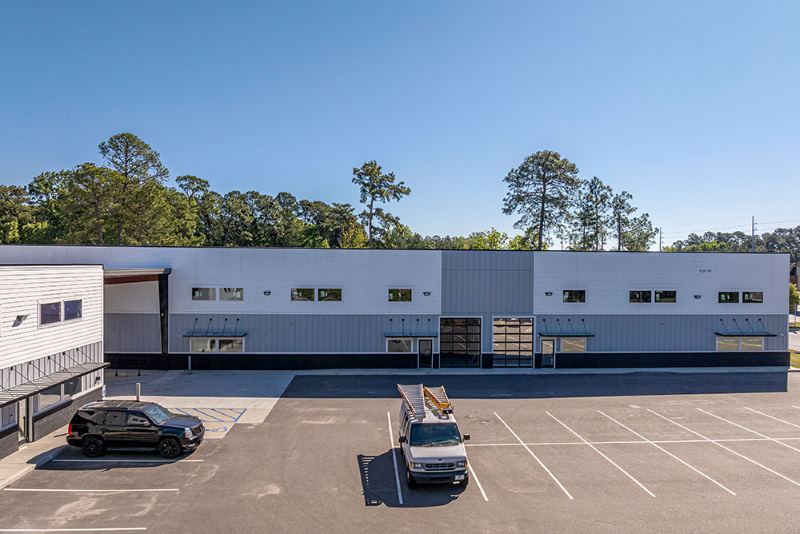

Prefabricated Steel Flex Space Building For Multiuse: Front Side Elevation

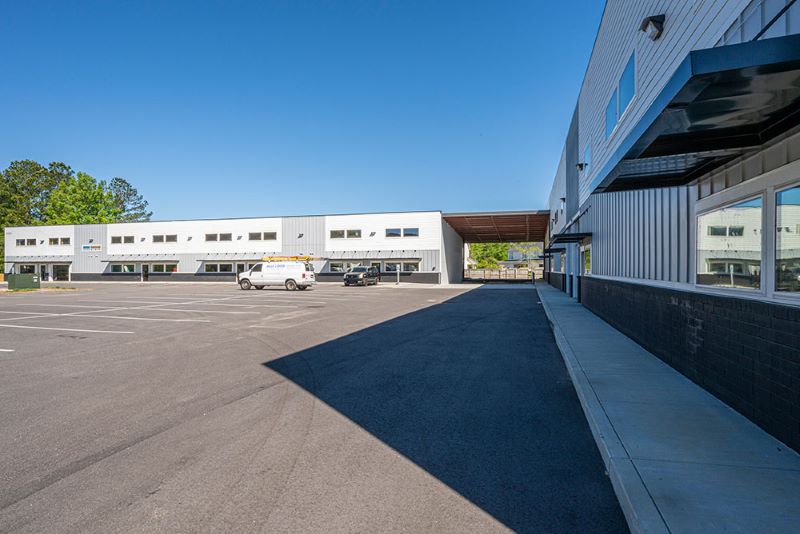

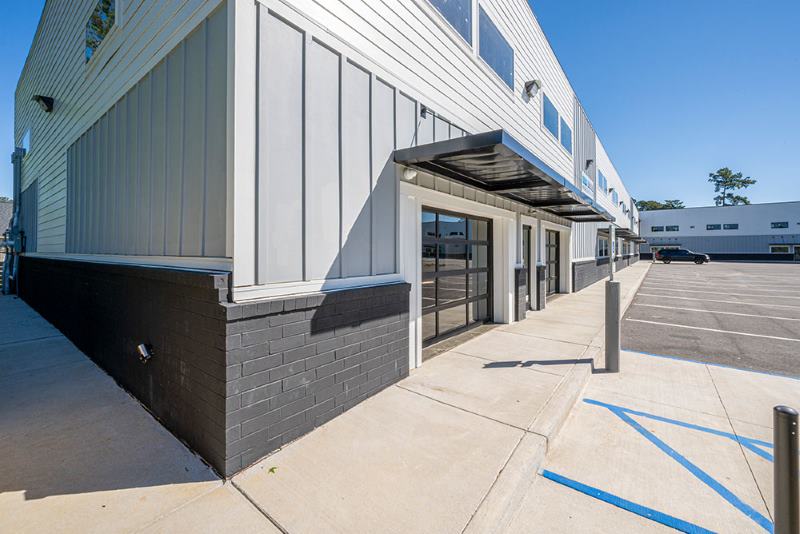

Prefabricated Steel Flex Space Building For Multiuse: Commercial Building

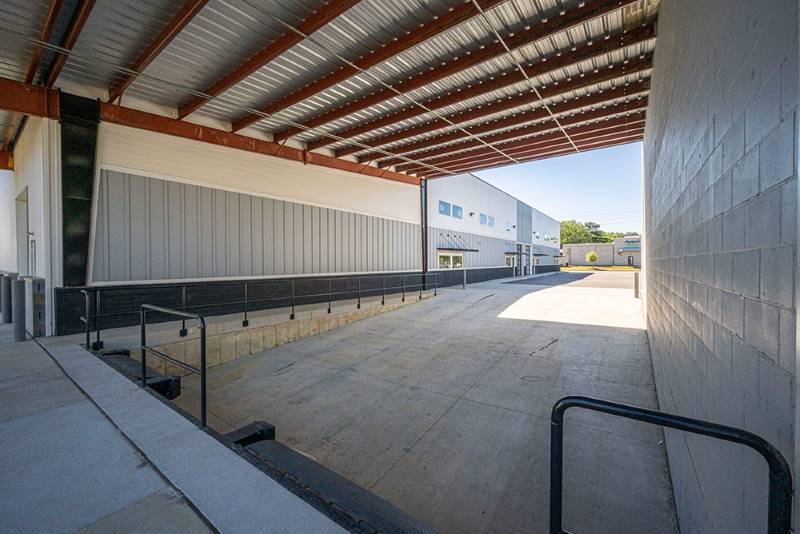

Prefabricated Steel Flex Space Building For Multiuse: Lean to steel Building



Prefabricated Steel Flex Space Building For Multiuse: Flex Space Buildings



Prefabricated Steel Flex Space Building For Multiuse: Flex Space Buildings
