Steel Structure Observation Towers

This figure is a 15-meter angle steel combination observation watch tower, the structure of the use of lattice angle steel, steel bolts. The seismic intensity is 8 degrees, wrapped in ice 7mm, tower height 1/1000 height. Tower steels are hot-dip galvanized.

Design and Drawings composition: instructions, 15M FIG total observation tower, lightning rod needle configuration diagram, FIG tower structure, the structure of FIG JP1 internet, FIG guardrail, staircase configuration diagram , FIG bolt arrangement, basic foundation plan , a total of 7 sheets of drawings.

Observation tower advantages: durable and easy to move. The service life is 30 years. The tower body is made of high-quality steel structure with stairs for easy up, down and maintenance. The tower body is hot-dip galvanized.

Specifications and Requirements:

1, the basic wind pressure: w0 = 0.4 and 0.7KN/m2 two
2. Earthquake fortification intensity: 8 degrees and less than 8 degrees
3. Foundation bearing capacity: 100 and 200 KN/m2
4, ice thickness: ≤ 10mm 5, verticality: ≤ 1/1000

Tower design basis:

1. Design Rules for Lightning Protection of Buildings (GB50057-94)
2, tall structure design specification (GBJ135-90)
3, steel structure design specification (GB50017-2003)
4. Construction and acceptance procedures for tower steel structure (CECS 80:2006)

Welcome global businessmen to negotiate business.

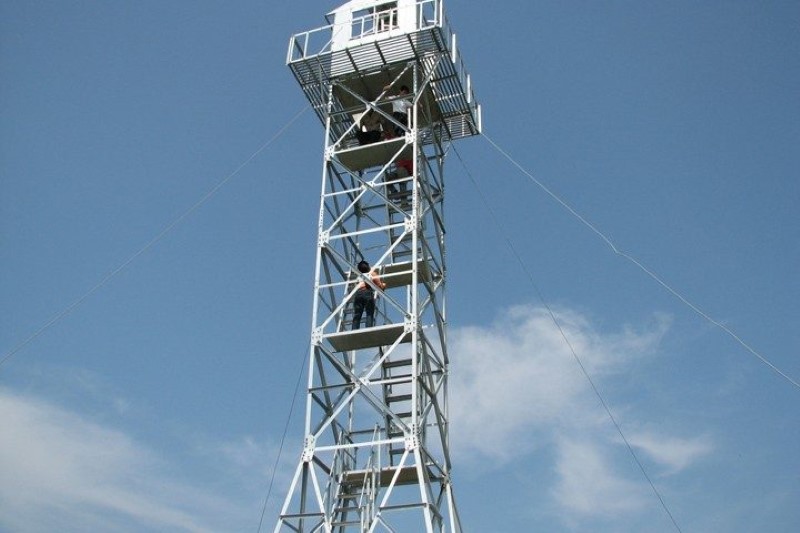

Forest fire observation tower

The observation tower is used for forest fire prevention and the border guards checkpoints look out.

Products:

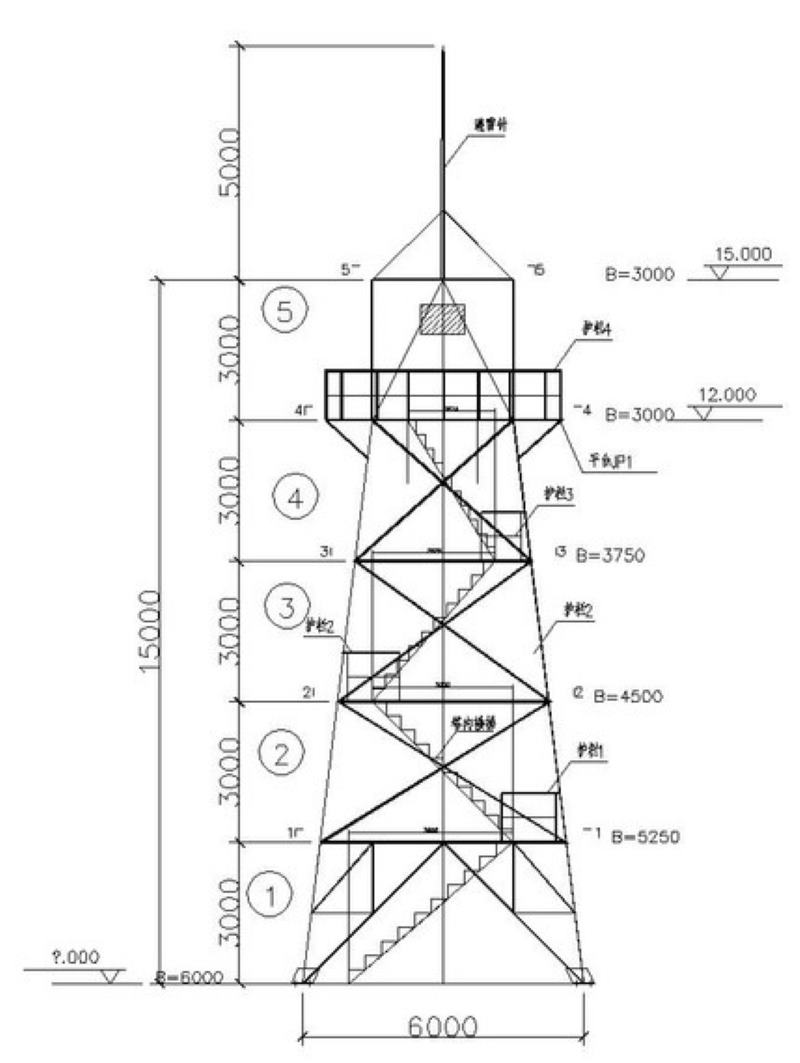

Steel Structure Observation Towers: 15m Tower General Layout Observation Towers

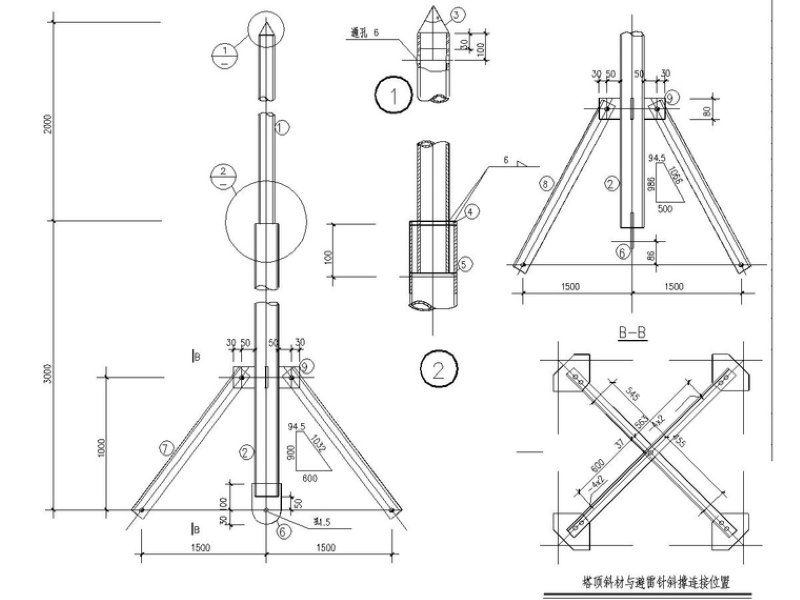

Steel Structure Observation Towers: Lighting Rod Structure Diagrams

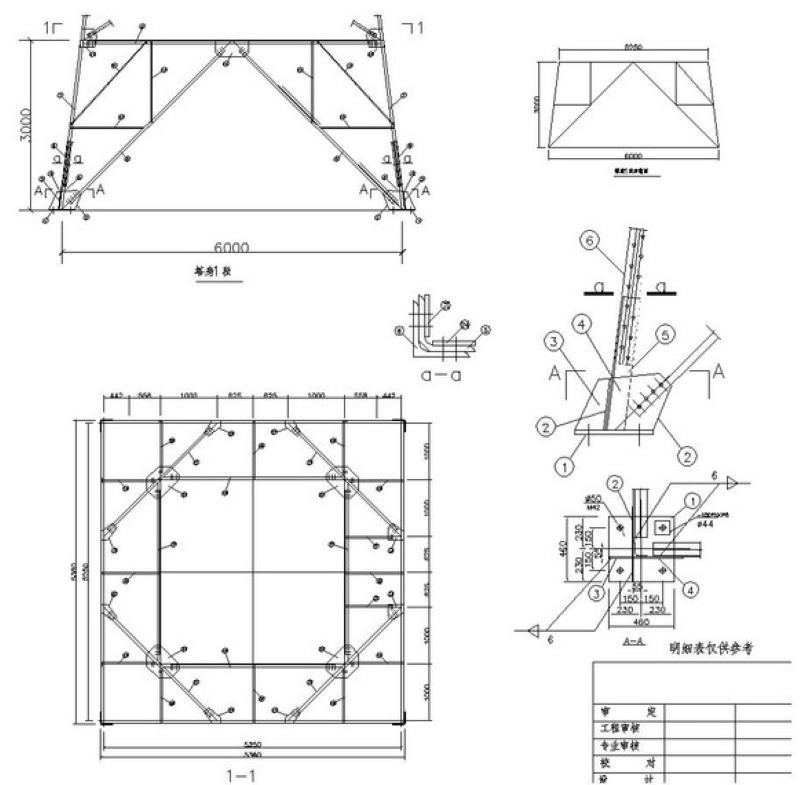

Steel Structure Observation Towers: Tower 1 Section Structures

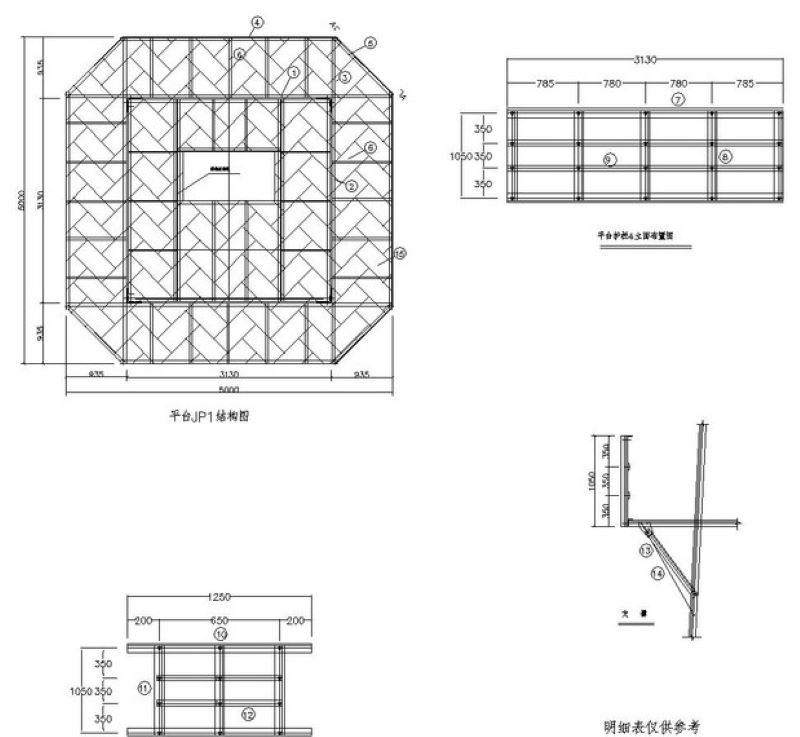

Steel Structure Observation Towers: Steel Structure Observation Towers: Platform JP1 Structure Diagram

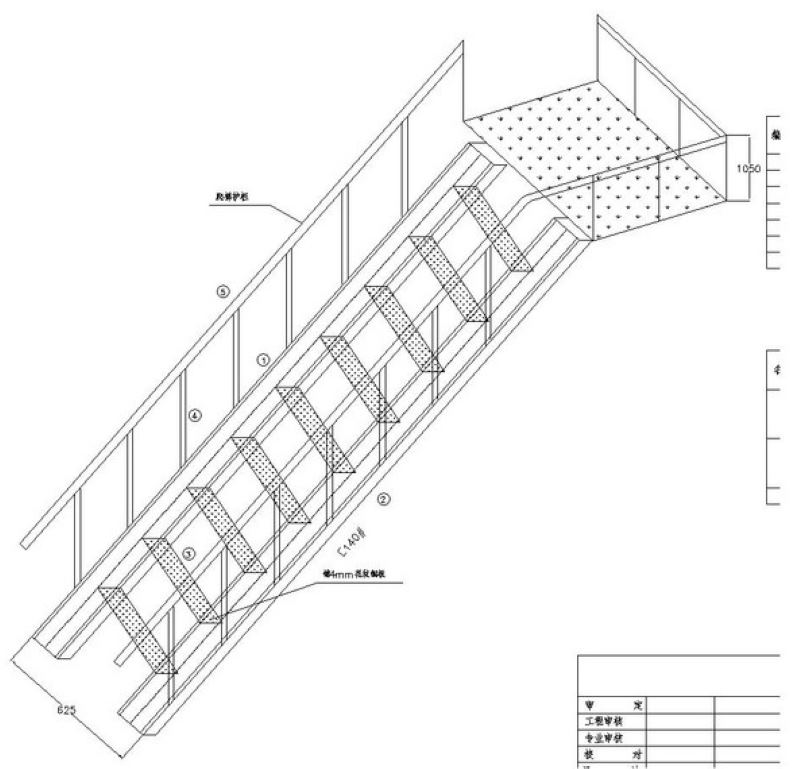

Steel Structure Observation Towers: Staircase Structures

Steel Structure Observation Towers: Ground Floor Foundatoin Plan Details
