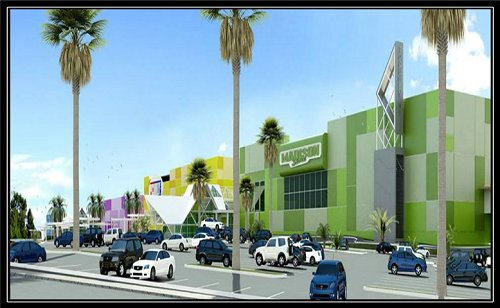

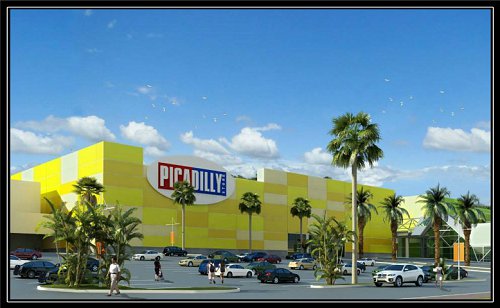

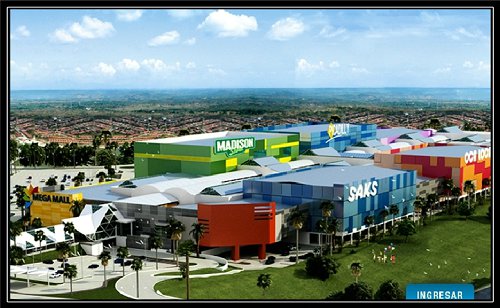

巴拿马杜库门大超购物商场钢结构工程 Panama Tocumen Megamall Structure

Building Type: Combination Structure System with Basement 2 floors and Ground Floor to be RCC structure, Mezzinane Floor, 1st Floor and Roof To be Steel Structure System.

The structure of the Mall consists of 14 modules in plant (A-B-C-D-E-F-G-H-I-J-K-L-M-N). It is rectangular with aprojection (Module D).
In plant, the building dimensions are 455.15 x 159.70 m.
The structure consists of the following levels:
? Level -100 (Foundation)
? Level -50
? Level +0
? Level +50
? Level +100
? Level +150
? Level +200 (Modulus F y G)
? Level +250 (Modulus F y G)
? Celing Level (Cubierta).

Total Project Tonnage: 3600ton

Location: Mall in the Pananamercan highway, in Nuevo Tocumen urbanization, in the District of Panama, Panama Province.

Project Delivery Time: Three Months after Purchase Order

Challange: Thousands of Joint connection details between RCC structure(Column,Beam and Rafter) and Steel Structure frame, the shop-drawings team got intensity of challange in complete more than 10 zones of buildings in such short time limit.
