Products About Box Air ACC
Box Air ACC is an innovative Induced Draft Air-Cooled Condenser (ACC), suitable for all power plants ranging from 1 to 30 MWe. This ACC type consists of standard boxes that are easy to assemble. The extended standardization of this dry cooling solution guarantees a very short delivery schedule and a high reliability level.
Box Air ACC is suited for applications such as waste incineration plants, biomass, solar and geothermal power plants. It is also used when a capacity increase of an existing power plant is needed.
Features of Box Air ACC

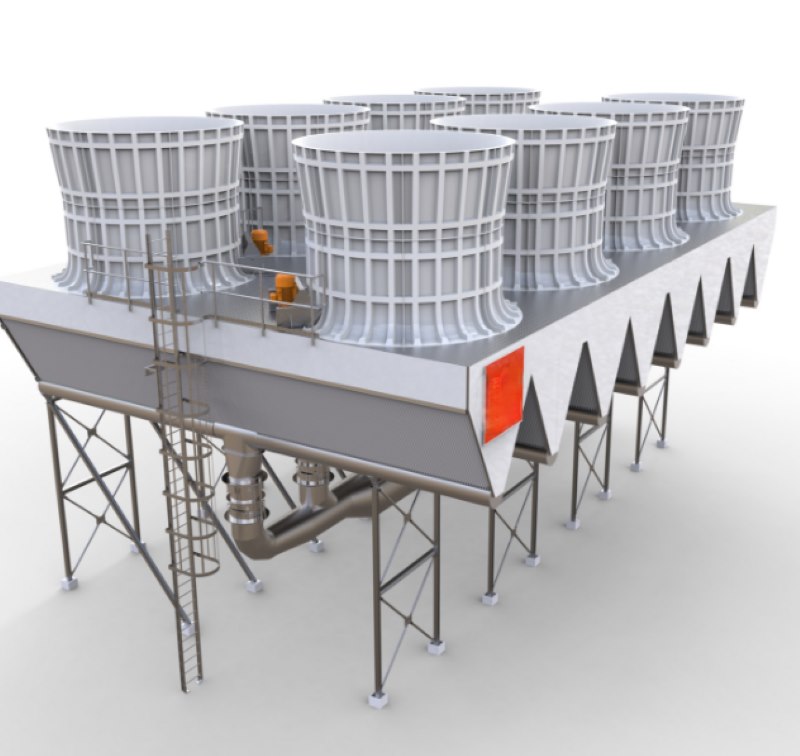

The Single-Row Condenser tubes (SRC) are arranged in two deltas inside the Box Air ACC box. The deltas are delivered with welded-on steam manifold and condensate collection headers. The air is drawn across the finned tubes by two axial flow fans located on top of the Box Air ACC box. This ACC concept drastically reduces site welding and construction duration thanks to its high level of pre-assembled structural parts (compared to a standard A-frame design).

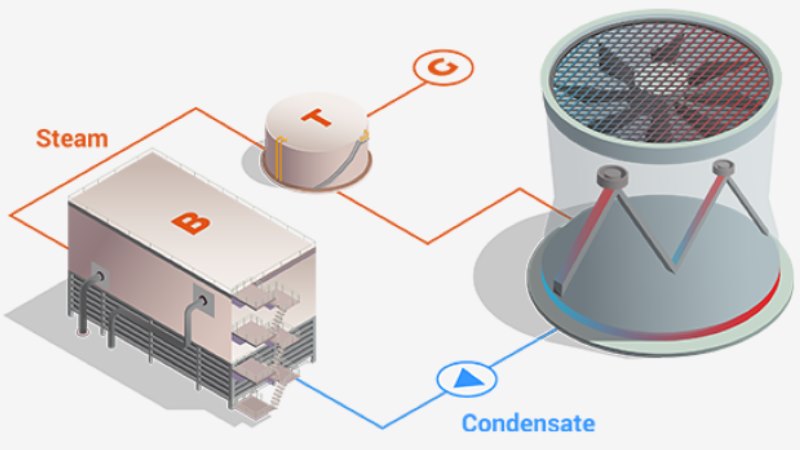

Discover the benefits BoxAir Air Cooled Condenser steam cylce

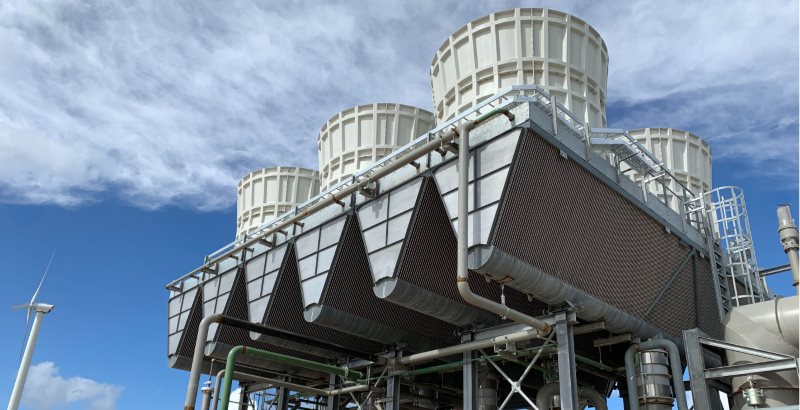

Projects installed in pictures
Benefits
|
01-Innovative BoxAir ACC offers decreased wind sensitivity and improved performance during windy conditions. Lower steam velocity in the finned tubes results in a reduced risk of flow accelerated corrosion in the finned tubes. |
02-High quality Box Air ACC contains full heat exchangers including steam and condensate manifolds. To ensure quality and weld integrity, these parts are factory tested.
|
|
|
|
|
03-High performance The lower back pressure available at low air temperature, leads to an enhanced average power plant output.
|
04-Cost effective Box Air ACC has a standard design with a high level of prefabrication in the workshop. This leads to an easier and safer construction of the structure. The standard air-cooled condenser module reduces delivery time. Box Air ACC reduces visual impact since it has a lower overall height. |
|
|
|
Case studies of BoxAir,Get to know clients that installed BoxAir ACC for their power plants.

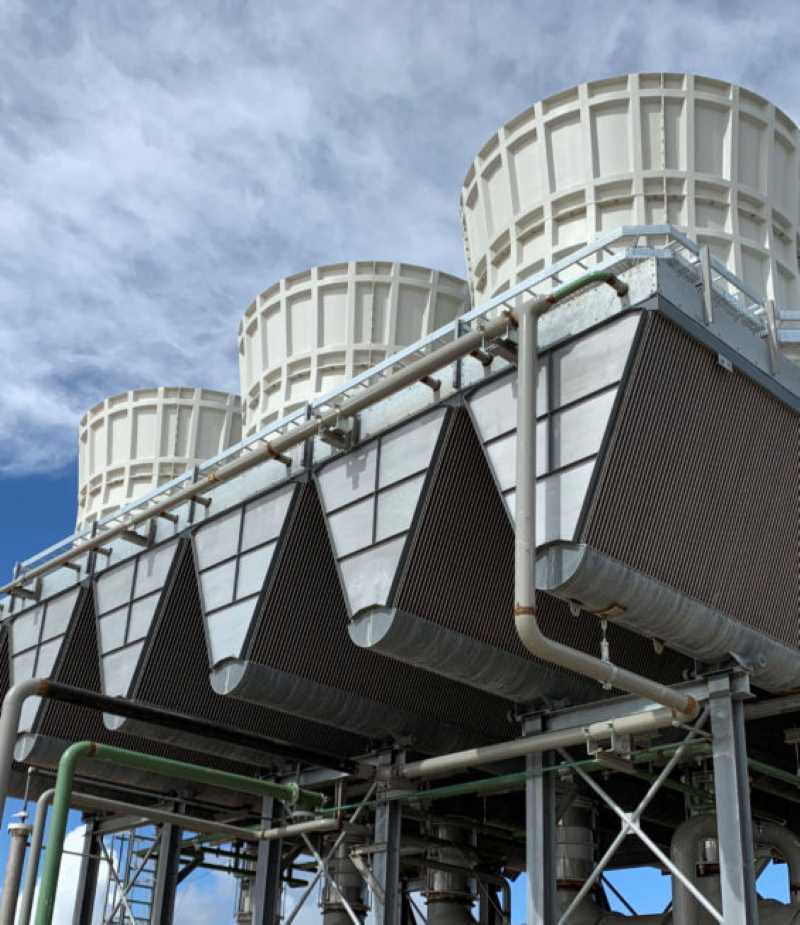

ZHM Huawu Steel Dry Cooling Box-Air 2.0 Air Cooled Condenser designed and manufactured for FATA S.p.A. The solar power plant will generate 4.26 MW.
View case
Minimize the risk of downtime and expand asset`s lifespan. Tailored to your needs, ZHM Huawu Steel Dry Cooling offers a variety of maintenance services. Keeping your dry cooling system performing at optimal levels. Our programs allow you to conduct best practices, maintenance and repairs in an efficient way.
Read more about maintenance services of air cooled condenser structure systems
Start your journey with ZHM Huawu Steel Dry Cooling
| Step 1 | Contract Signature |
| Step 2 | Kick-off Meeting:With ZHM Project Manager,Engineering team, Quality Control Officer, Logistics officer as well as with equivalent representatives from the client-side. |
| Step 3 | Engineering Phase:In the first phase, ZHM Huawu Steel will hand the client a basic design of the requested product. In the second phase, we will start with a more detailed design. |
| Step 4 | Procurement Phase:With ZHM Huawu Project Manager,Engineering team, Quality Control Officer, Logistics officeras well as with equivalent representatives from the client side. Our Sales Manager will also be there, and often the client's procurement manager too. |
|
Step 5 |
Fabrication Phase: |
| Step 6 |
Delivery to Client: We can make the equipment and materials available for client pick-up.Or we can deliver goods to the project site. |
| Step 7 | Erection on Site: Erection Technician Supervision Service can be provided as an option. |
| Step 8 | Commissioning: Commissioning Supervision is provided by one of our experienced technicians. |
All projects require a different and unique approach. Your first point of contact with ZHM Huawu Steel Dry Cooling will be our dedicated and experienced sales team. You will have a committed team (project manager, engineering team, quality control officer, logistics officer) at your disposal through the whole process. Our team members offer a high quality of customer care and strive for excellence in service delivery. Please reach out for more information or a personalized quote.
Contact us
Product related to fossil fuel power plants
Select the product and learn more about its benefits
|
Modular Air Cooled Condenser Metal Works Module Air ACC is an innovative modular air-cooled condenser (ACC) that directly condenses steam turbine exhaust fow and return condensateto the boiler without any water loss. With construction savings of up to25%, compared to a standard A-frame, construction time can bereduced by several months for large power plants. |
 |
|
W-style Air Cooled Condenser Metal Works W-Style ACC is an innovative Induced Draft Air-Cooled Condenser(ACC) directly condensing the steam turbine exhaust fow. The condensate returns to the boiler without any water loss. With its unique "W" heat exchanger structure, the amount of steel and overall height of the ACC are dramatically reduced. This is useful for all powerplant applications. |
 |
|
Box Air ACC is an innovative Induced Draft Air-Cooled Condenser (ACC), suitable for all power plants ranging from 1 to 30 MWe. This ACC type consists of standard boxes that are easy to assemble and that offer a short delivery schedule and high reliability level. Box Air ACC is used in waste incineration plants, biomass, solar and geothermal power plants and is suited as a capacity increase of an existing power plant. |
 |
|
Hexagon Air Cooling is a standardised, modular air-cooled condenser (ACC) which is easy to build and robust in performance. lt is used in waste-to-energy, biomass, small size electrical power plants and industrial co-generation.Hexagon Air Cooling induced draft configuration saves up to1 5% fan power consumption. |
 |
|
An Indirect Dry Condensing system connects an Indirect Dry Cooling tower (lDCT) with a steam surface or jet condenser. lts tall concrete orsteel shell eliminates hot air recirculation. Indirect Dry Cooling solutions offer a reduced maintenance and are suited for largecapacity condensing units. |
 |
|
Air-Cooled Heat Exchangers (ACHE) are custom designed heavy-duty fin tube heat exchangers. They allow the direct cooling by air ofvarious process mediums.ACHEs are used in applications in manyindustries, such as power, chemical, ORC plant, Oil & Gas, steel andseveral other industries |
 |
