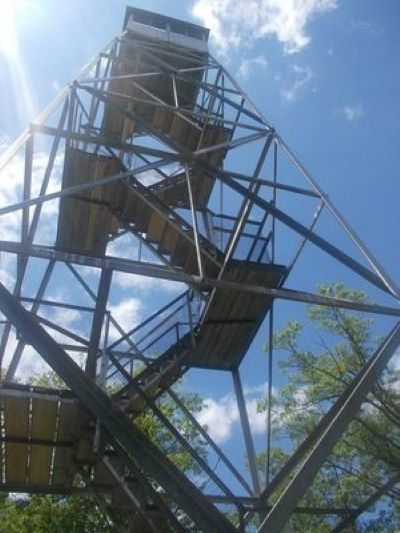

Prefabricated Watch Observe Military Guard Tower 50m

Product Details:

• Place of Origin: China
• Brand Name: ZHM Huawu Steel
• Certification: ISO9001:2008
• Model Number: JGT190409-2
• Payment & Shipping Terms: Negotiable
• Minimum Order Quantity: 1piece
• Price: USD1000-15000
• Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind.
• Delivery Time: 30-45days
• Payment Terms: L/C, T/T, Western Union
• Supply Ability: 20000Ton/yearContact Now Chat Now
• Product Name: Steel Guard Tower Material: SteelQ345/Q235
• Appearance Treatment: Hot-dip Galvanized
• Height Of Tower: 10m-50m/Customized
• Connection Structure: Bolts Connection
• Design Wind Speed: 30m/s
• Lookout Area: Lookout Room Area: 6 Square Meters
• Structure Type: Self-standing / Pull Type (Guyed Type)
• Lifetime: 30 Years
• High Light: prefabricated military guard tower, 50m military guard tower, 50m guard lookout towers

Product Description:

Sepcification of Products

• Service Life: 50 Years
• Structural Safety Level :Level 2
• Seismic Strength: Based on the local Seismic Intensity
• Wind Stability: Based on the local Maximum Wind Speed in 50 years
• Ground Resistance on Lightning Protection: Less than 1 ohm

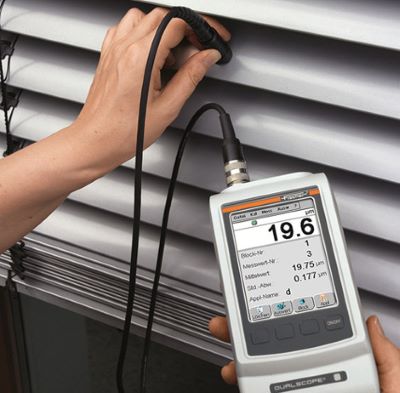

• Thickness of Galvanized Layer:More than 86um
• Height: Designed according to Customer's Requirement
• Number of Platforms:Designed according to Customer's Requirement
• Gravity Load: Designed according to Customer's Requirement

Production and installation

• 1. All metal parts must be galvanized, please protect the galvanized layer during operation.
• 2. The needle tip is made of galvanized steel pipe, the thickness of the tube wall shall not be less than 3mm, and the length of the needle tip brushed tin shall not be less than 70mm
• 3. The lightning protection tower should be installed firmly vertically. The allowable deviation of verticality is 3/1000.
• 4. Welding requirements Welding should be lap welding, and the lap length must meet the following requirements:
• 5. Flat steel is twice its width (and at least 3 edges are welded).
• 6. Round steel is 6 times its diameter.
• 7. When the round steel is connected to the flat steel, its length is 6 times the diameter of the round steel.
• 8. Lightning towers are generally made of round steel or steel pipes.
• 9 The lightning protection tower should be made of round steel or welded steel pipe.

• 1. Two fire-proof observation towers are built in the mountainous area, and the whole mountain can be seen, standing high and far away, eliminating the blind spots of despair and saving a lot of manpower.
• 2. With fixed watch towers and indoor visits, the rangers can protect themselves from wind and sun on the one hand, and they can also focus on forest fires on the other.
• 3. The construction of forest fire prevention observation towers will better reflect the policy of “prevention first and active elimination”, to ensure the safety of people’s lives and property, and to protect mountain forest resources.

• 1.fixed design wind speed: 30M/S (different from region to region)
• 2.Wrapped ice: 5mm-10mm (different from region to region)
• 3.Seismic intensity: 8°
• 4.Suitable temperature: -35℃∽45℃
• 5.Vertical deviation: <1/1000
• 6.Grounding resistance: ≤4Ω
• 7.Anti-corrosion treatment: hot-dip galvanizing of the tower body steel components.
• 8.Service life: guarantee 30 years of safe use.

Prefabricated Watch Observe Military Guard Tower 50m 0

Prefabricated Watch Observe Military Guard Tower 50m 1

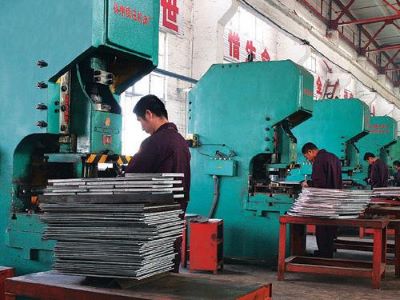

Production Process

Cooperative units

Prefabricated Watch Observe Military Guard Tower 50m 5


Cooperation Customers and Partners: Huawei, ZTE, China Mobile, Your Company, Freesat, China Telcome, T-Mobile, Verizon, Ramapo, Vodafone.etc.
