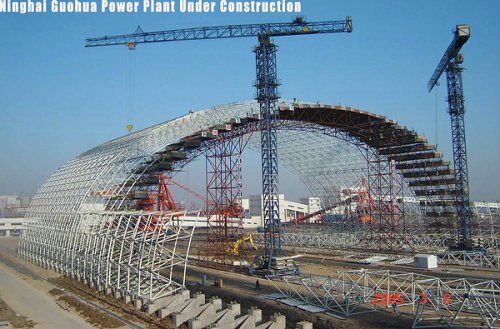

宁海国华热电站230x100米干煤棚

Coal Shed for Ninghai Guohua 230x100m Thermal Power Plant

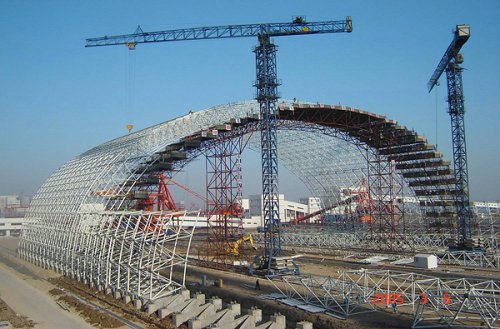

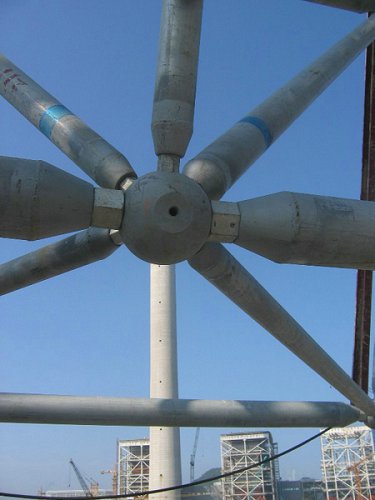

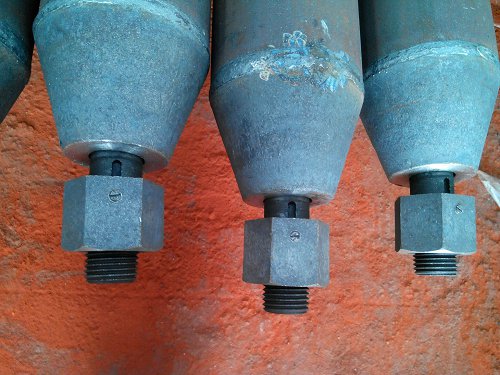

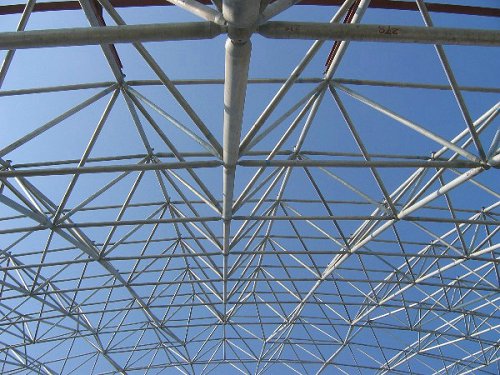

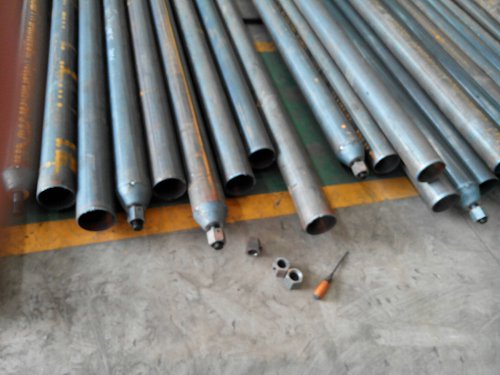

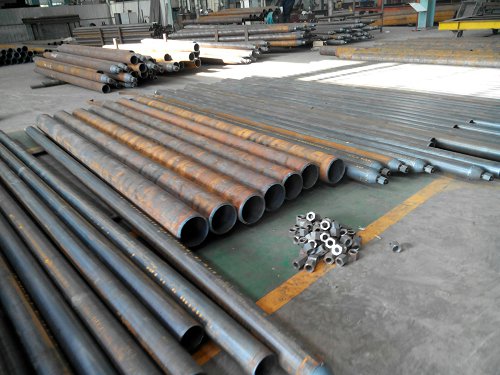

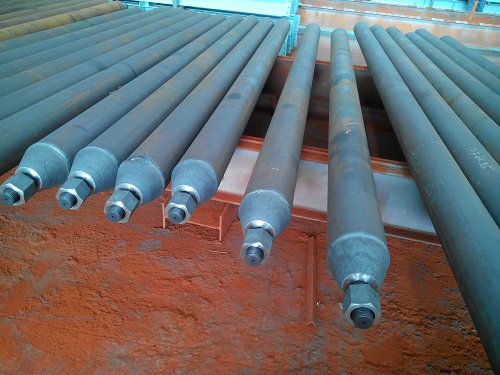

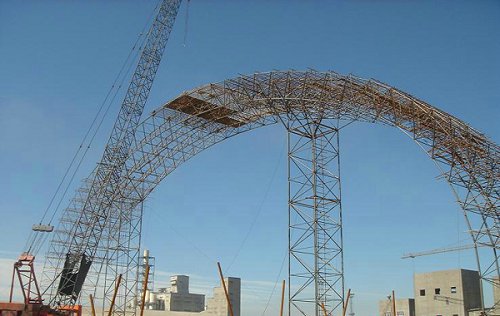

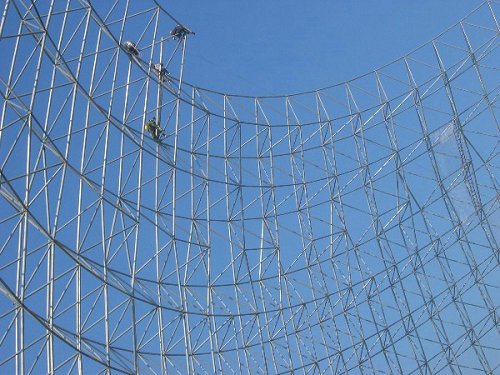

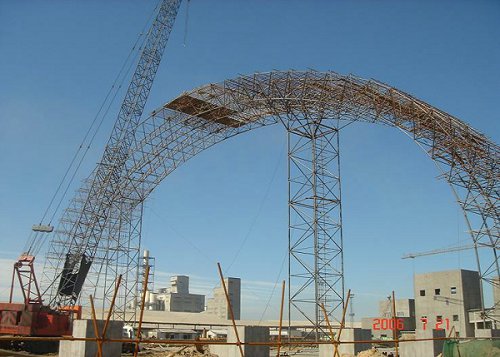

宁海国华热电站干煤棚，干煤棚网架工程由主体结构和维护结构组成，主体结构采用螺栓球节点正放四角锥三心圆柱面网壳结构，网架跨度100m，分成两块。网架长度230米 东段和西段网架之间有1.5米伸缩缝。网架网格尺寸为4米X4米,网架厚度为3.8米。干煤棚最高高度为41.623m，上弦对边柱点支承形式

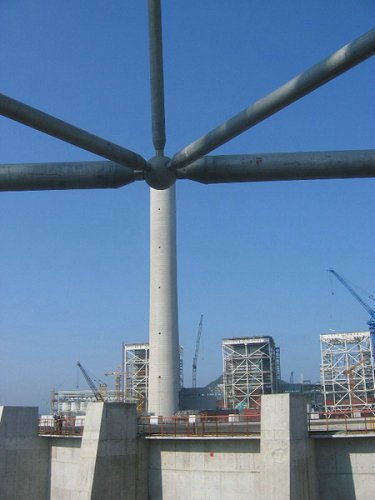

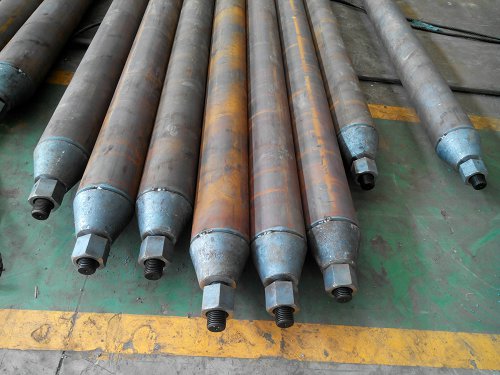

Coal Shed for Ninghai Guohua 230x100m Thermal Power Plant,Coal Shed @ 100m Span, 230m Length, 28.5m Height. composited by main space frame steel structure and cladding materials. The structure type is bolt ball nod quartro triple cylinder space frame structure, span at 100m, with two sections, length st 230m, there is a 1.5m thermal expansion joint between the east and west parts of space frame. the node unit size is 4m x 4m and the space frame depth is 3.8m and the maximum height of dry coal shed is 28.5m. The upper and side column supported.
