Products:About A-Frame Roof Steel Structures for Air Cooled Condensers

The traditional A-Frame is a state-of-the-art air-cooled condenser (ACC). It’s suitable for small to large power plants in a large variety of conditions (low ambient temperature, high wind, high seism, low noise and many others).

ACCs immediately condense the steam turbine exhaust flow and return condensate to the boiler without water loss. The steam is directly condensed in air-cooled finned tubes without using an intermediate surface condenser.

Features of an Air Cooled Condenser

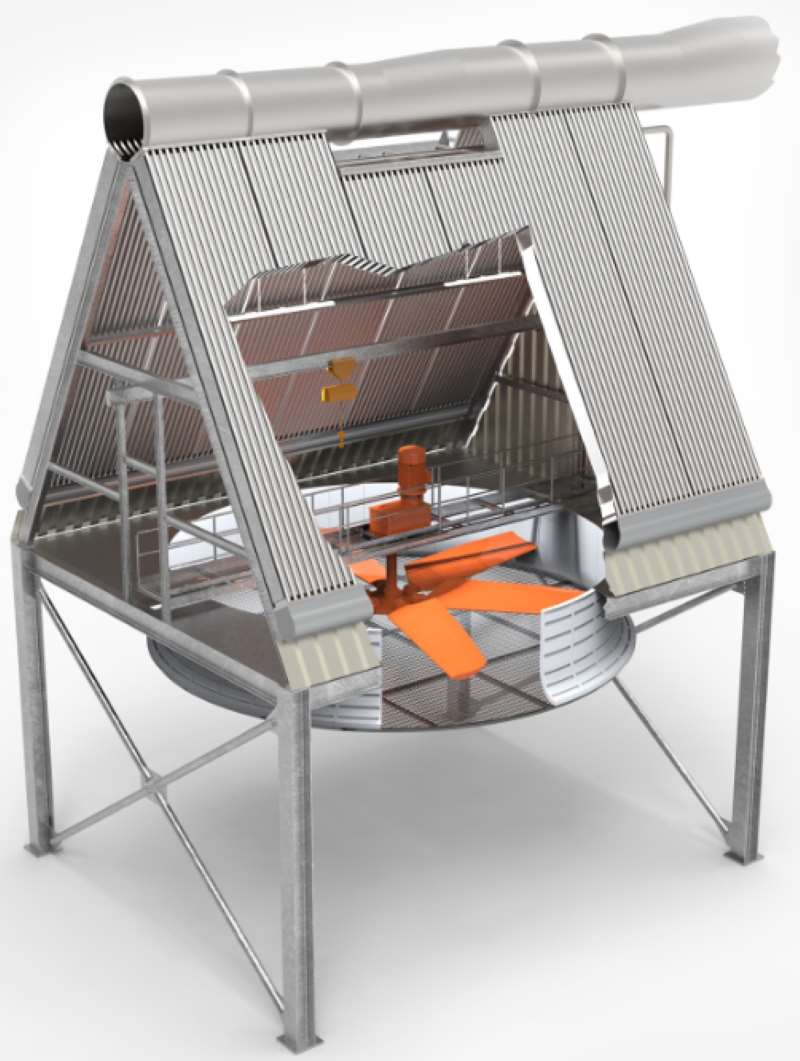

An air-cooled condenser (ACC) is made of modules arranged in parallel rows. Each module contains several fin tube bundles. An axial flow forced-draft fan located in each module, forces the cooling air through the heat exchange area of the fin tubes. An ACC installation consists of:

• a supporting structure

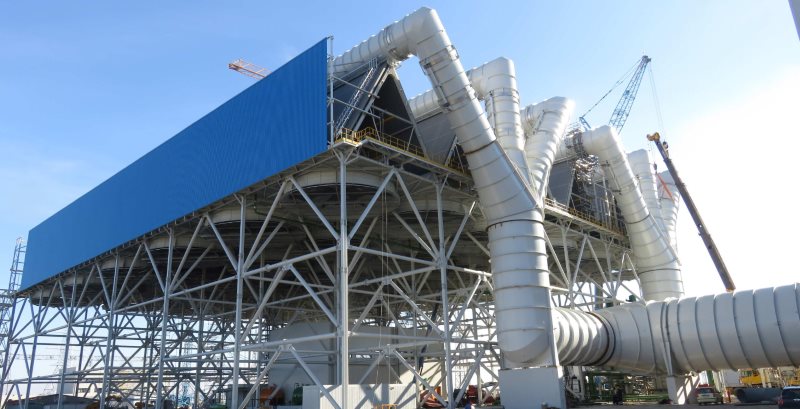

• a steam ducting from the steam turbine interface
• auxiliaries such as condensate and drain pumps
• condensate and duct drain tanks
• air evacuation units
• related piping works and instrumentation

Benefits

01-Sustainable The air-cooled condenser prevents unnecessary water usage from the condensing power cycle. The uniform steam distribution and total absence of backflow of steam, results in an increased performance and prevents air accumulation, flooding, sub-cooling and freezing.	02-Flexible Air-cooled condenser solutions are flexible in power plant site selection. Benefit of the flexibility in module arrangements tailored to the best usage of your available plot.
03-Cost efficient Benefit of a decreased lead time for plan permitting. The finned tubes from the air-cooled condenser have an excellent manual or semi-automatic cleaning system.	04-High quality ZHM Huawu Steel Dry Cooling air-cooled condenser solutions contains top quality single row condenser fin tubes. They offer an excellent corrosion and freezing resistance.

Highlighted case studies of Air Cooled Condensers,Get to know clients that installed Air-Cooled Condensers.

Case study: Turano Lodigiano Power Plant Air Cooled Condenser Structures

Bertonico-Turano Lodigiano Power Plant, situated near Lodi in Northern Italy, a 800 MW Combined Cycle Power Plant
View case

Service & Support,Maintenance

Minimize the risk of downtime and expand asset`s lifespan. Tailored to your needs, ZHM Huawu Steel Dry Cooling offers a variety of maintenance services. Keeping your dry cooling system performing at optimal levels. Our programs allow you to conduct best practices, maintenance and repairs in an efficient way.

Read more about maintenance services of air cooled condenser structure systems

Start your journey with ZHM Huawu Steel Dry Cooling

Step 1	Contract Signature
Step 2	Kick-off Meeting:With ZHM Project Manager,Engineering team, Quality Control Officer, Logistics officer as well as with equivalent representatives from the client-side.
Step 3	Engineering Phase:In the first phase, ZHM Huawu Steel will hand the client a basic design of the requested product. In the second phase, we will start with a more detailed design.
Step 4	Procurement Phase:With ZHM Huawu Project Manager,Engineering team, Quality Control Officer, Logistics officeras well as with equivalent representatives from the client side. Our Sales Manager will also be there, and often the client's procurement manager too.
Step 5	Fabrication Phase:
Step 6	Delivery to Client: We can make the equipment and materials available for client pick-up.Or we can deliver goods to the project site.
Step 7	Erection on Site: Erection Technician Supervision Service can be provided as an option.
Step 8	Commissioning: Commissioning Supervision is provided by one of our experienced technicians.

All projects require a different and unique approach. Your first point of contact with ZHM Huawu Steel Dry Cooling will be our dedicated and experienced sales team. You will have a committed team (project manager, engineering team, quality control officer, logistics officer) at your disposal through the whole process. Our team members offer a high quality of customer care and strive for excellence in service delivery. Please reach out for more information or a personalized quote.

Contact us

Product related to fossil fuel power plants
Select the product and learn more about its benefits

Modular Air Cooled Condenser Metal Works Module Air ACC is an innovative modular air-cooled condenser (ACC) that directly condenses steam turbine exhaust fow and return condensateto the boiler without any water loss. With construction savings of up to25%, compared to a standard A-frame, construction time can bereduced by several months for large power plants.
W-style Air Cooled Condenser Metal Works W-Style ACC is an innovative Induced Draft Air-Cooled Condenser(ACC) directly condensing the steam turbine exhaust fow. The condensate returns to the boiler without any water loss. With its unique "W" heat exchanger structure, the amount of steel and overall height of the ACC are dramatically reduced. This is useful for all powerplant applications.
Box Air ACC is an innovative Induced Draft Air-Cooled Condenser (ACC), suitable for all power plants ranging from 1 to 30 MWe. This ACC type consists of standard boxes that are easy to assemble and that offer a short delivery schedule and high reliability level. Box Air ACC is used in waste incineration plants, biomass, solar and geothermal power plants and is suited as a capacity increase of an existing power plant.
Hexagon Air Cooling is a standardised, modular air-cooled condenser (ACC) which is easy to build and robust in performance. lt is used in waste-to-energy, biomass, small size electrical power plants and industrial co-generation.Hexagon Air Cooling induced draft configuration saves up to1 5% fan power consumption.
An Indirect Dry Condensing system connects an Indirect Dry Cooling tower (lDCT) with a steam surface or jet condenser. lts tall concrete orsteel shell eliminates hot air recirculation. Indirect Dry Cooling solutions offer a reduced maintenance and are suited for largecapacity condensing units.
Air-Cooled Heat Exchangers (ACHE) are custom designed heavy-duty fin tube heat exchangers. They allow the direct cooling by air ofvarious process mediums.ACHEs are used in applications in manyindustries, such as power, chemical, ORC plant, Oil & Gas, steel andseveral other industries
