Introduction
Atriums Double-curved Façade Metal Works

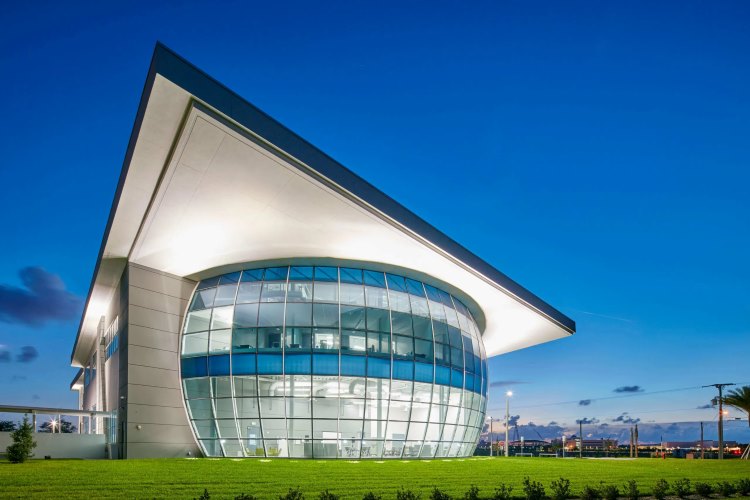

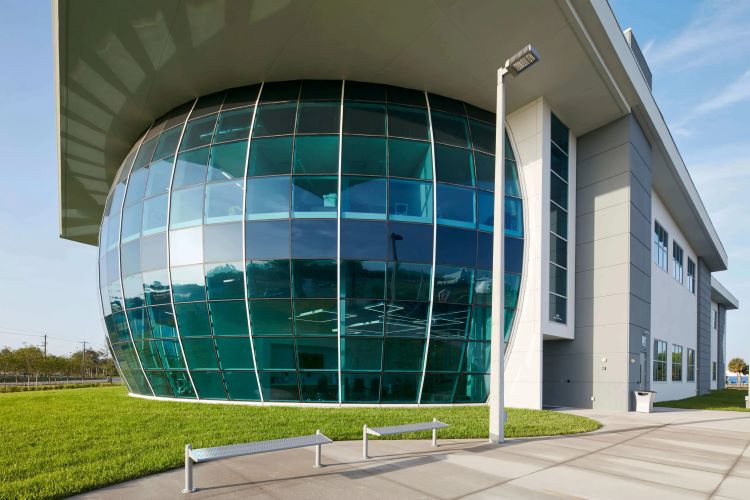

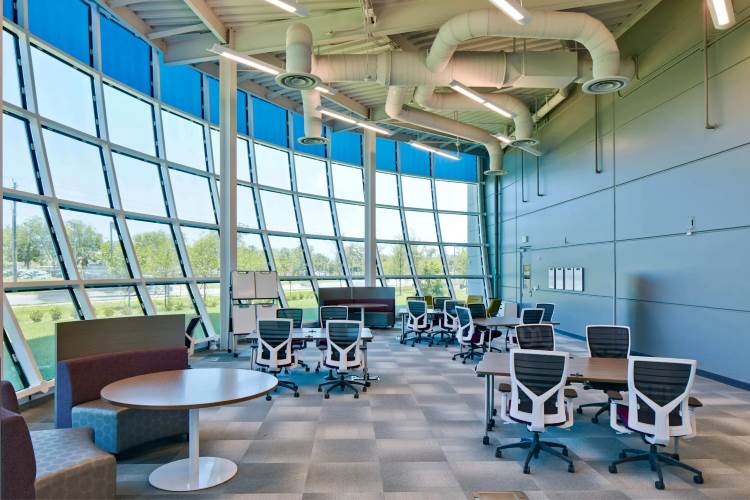

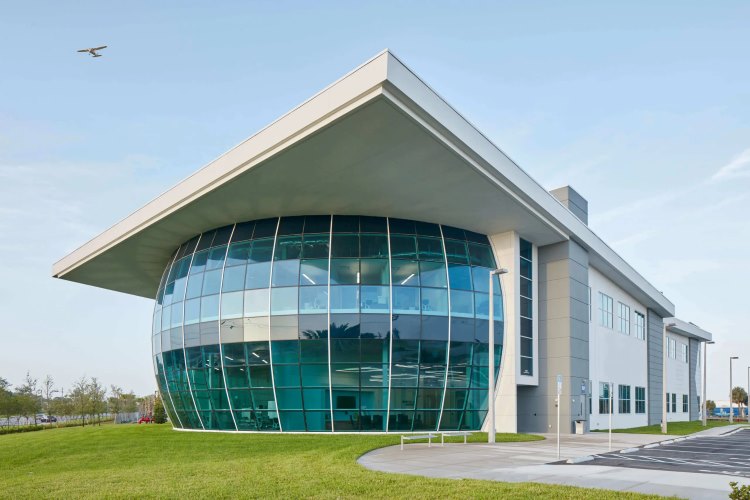

Our client, an aeronautical university , was looking for a double-curved façade reminiscent of a pilot’s visor. A very shallow structure was desired, even though the façade was over 12m(40') tall and located in a region with extremely high wind loads.


ZHM was able to accomplish these goals using a systems approach. ZHM helped create a form that ensured all the glass modules on the double-curved façade were planar.


ZHM then worked with the engineer of record to coordinate boundary conditions that allowed the façade to thrust on the building frame at the jambs. This enabled ZHM to keep the profile size of the façade members to 125mm(5') deep.


ZHM’s proprietary software automated the creation of fabrication drawings for the glass and steel, which made it possible to both create a unique structure and meet the fast track schedule.


Project Specifications

SIZE:


6,000 sq ft 560 sq m


TECHNICAL SYSTEMS USED


Block Knoten
Edge Clamped Glass


Atriums Double-curved Façade Metal Works


Atriums Double-curved Façade Metal Works


Atriums Double-curved Façade Metal Works


Atriums Double-curved Façade Metal Works
