 RAAF Aircraft Hangar Steel Structures- Australia

ZHM Huawu Steel was contracted by one of its regional partners in Australia to produce over 500 metric tons of structural steel prefabricated building system for an aircraft hangar to be used for the Pilot Training Systems Centre in Australia.


RAAF_Aircraft_Hangar_Steel_Structures_Australia_00_Steel-Structure-Aircraft-Hangar-3D-BIM


This project is part of the overall investment to deliver facilities, infrastructure and airfield works for the implementation of the aircraft which is aimed to be used as part of the Pilot Training System. Up to 27 training aircraft could be parked inside the hangar. The structure was designed to have sufficient structural capacity for both wind and earthquake loadings.

The main project standard for the steel pre-engineering building structure was Australian Standard AS 4100 for materials, construction, fabrication and erection. The welds also required different extents of visual, radiographic and magnetic particle inspection as per AS 1554.1. The steel grades used for the sections and plates varied between Grade 250 and Grade 300. All components delivered were galvanized for corrosion protection. The project required all components to be annealed to over 650°C before the hot-dip galvanizing(also refer to as HDG) with a final coating mass of over 600g/m2.


Fabrication Photos

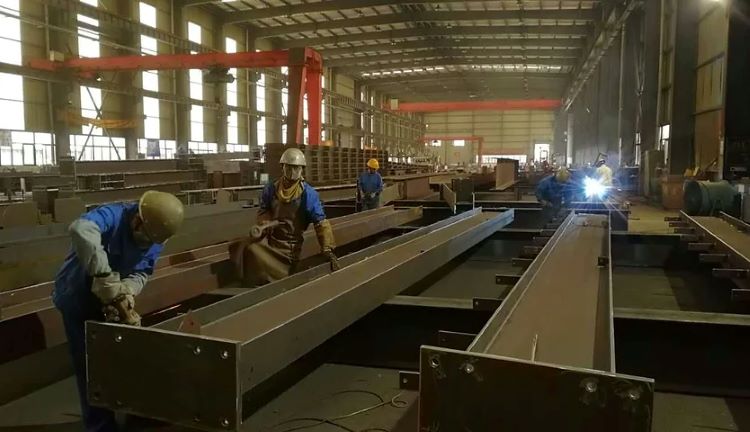

RAAF_Aircraft_Hangar_Steel_Structures_Australia_01_workshop-grinding

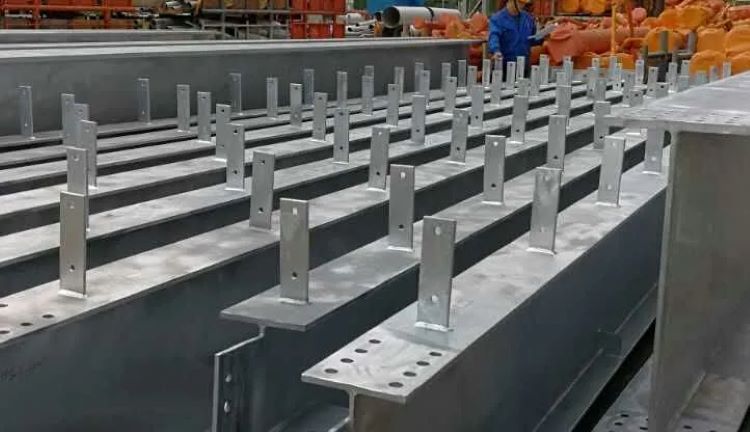

RAAF_Aircraft_Hangar_Steel_Structures_Australia_02_after-galvanization


RAAF_Aircraft_Hangar_Steel_Structures_Australia_03_roof-rafter-cleaning-before-galvanization

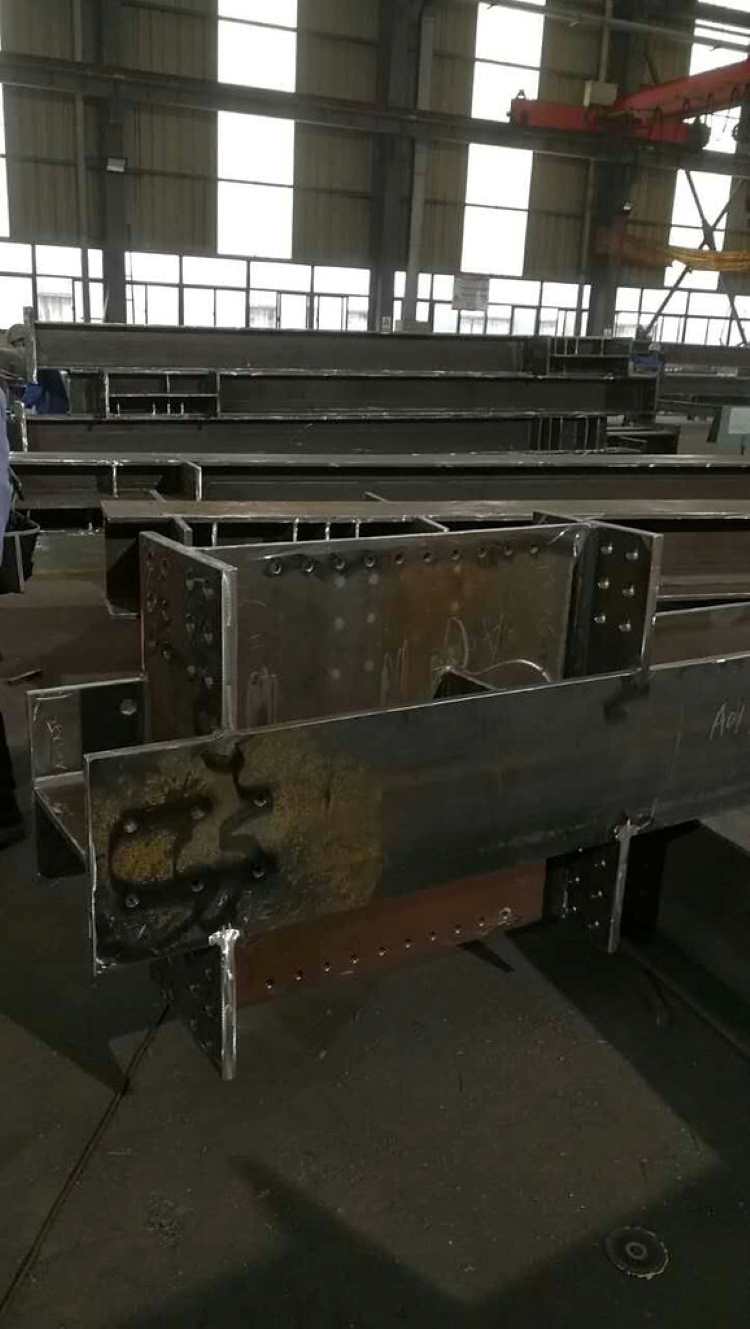

RAAF_Aircraft_Hangar_Steel_Structures_Australia_04_column-cleaning-before-galvanization

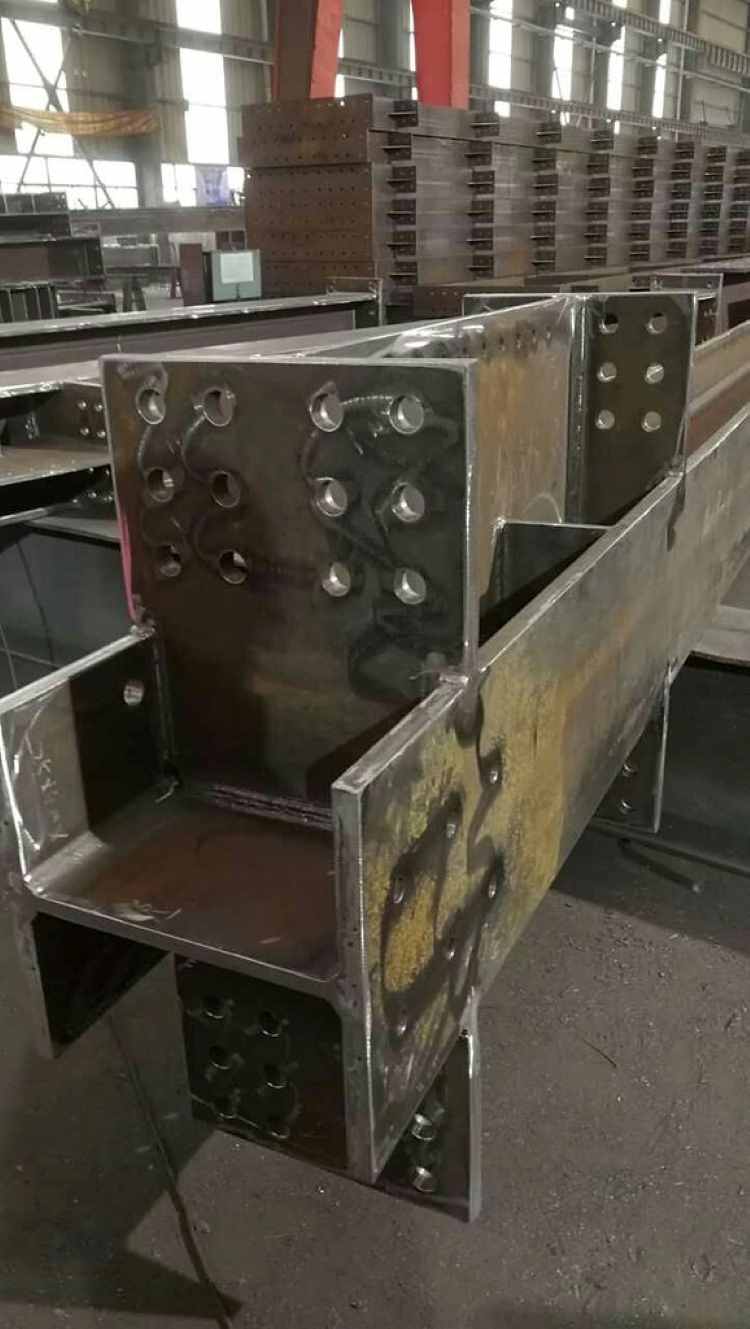

RAAF_Aircraft_Hangar_Steel_Structures_Australia_05_column-cleaning-before-galvanization

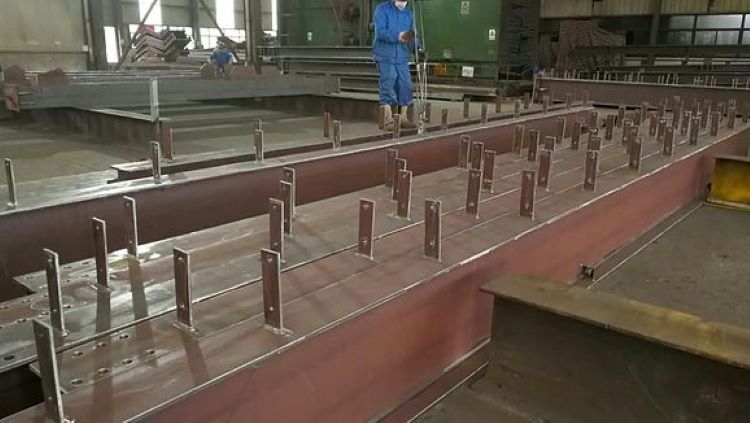

RAAF_Aircraft_Hangar_Steel_Structures_Australia_06_roof-rafter-cleaning-before-galvanization

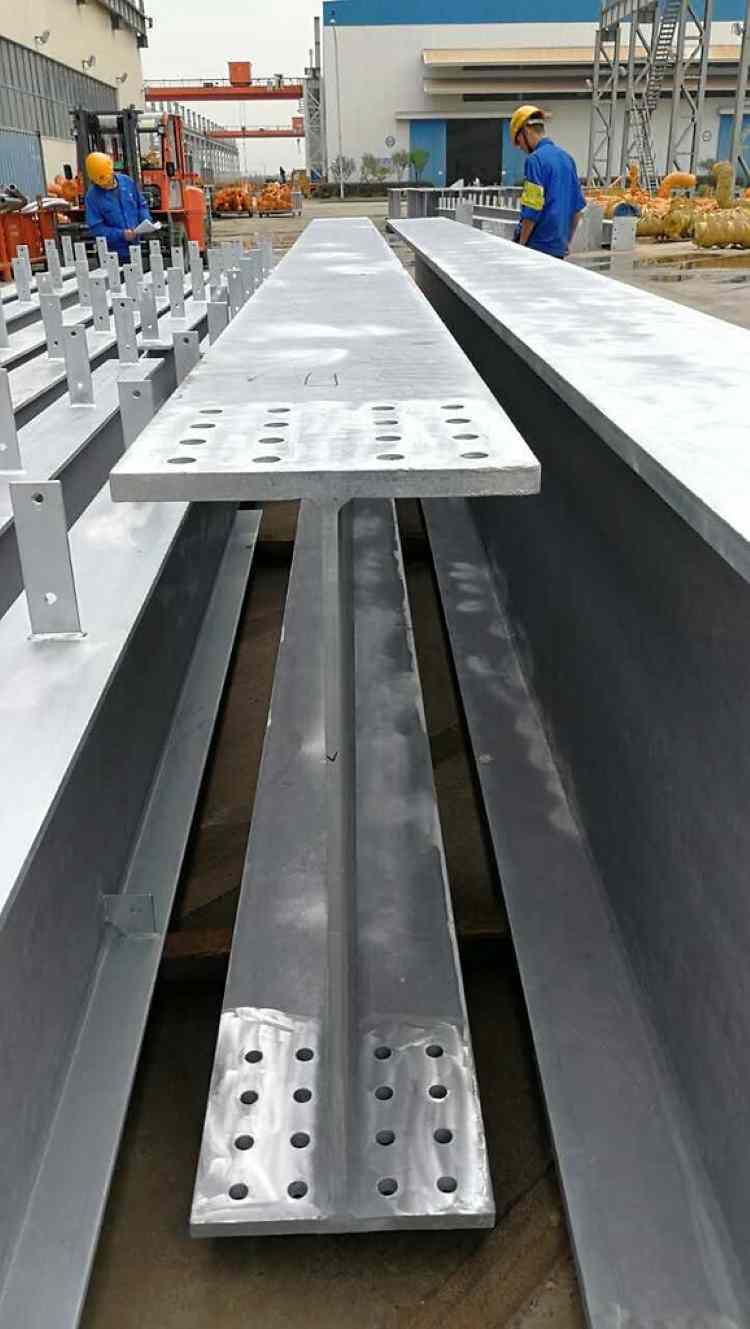

RAAF_Aircraft_Hangar_Steel_Structures_Australia_07_roof-rafter-cleaning-before-galvanization

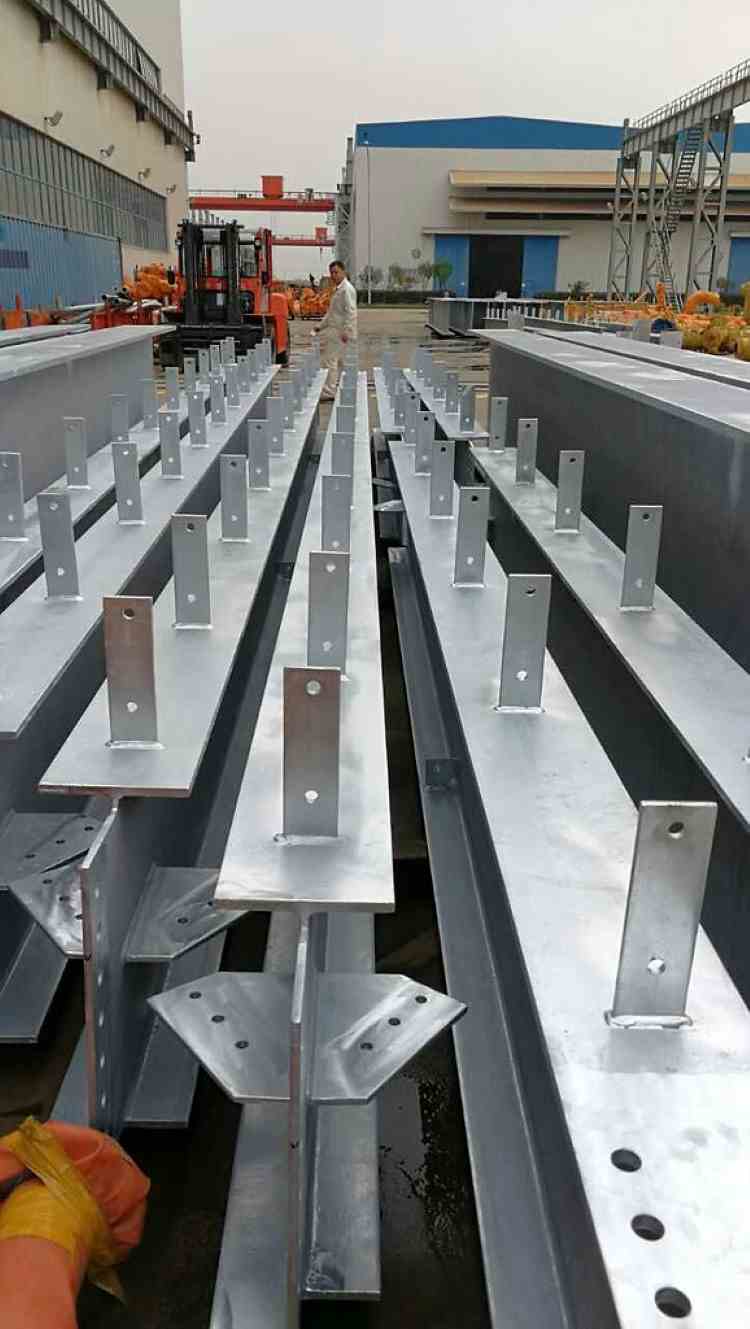

RAAF_Aircraft_Hangar_Steel_Structures_Australia_08_roof-rafter-cleaning-before-galvanization



Prior to production, ZHM Huawu Steel completed a comprehensive Inspection & Test Plan (ITP) with a breakdown of all the processes which included: welder qualification review, raw material inspection, component dimensional inspection, weld inspection and coating inspection. Strategic review, witness and certify hold points were incorporated for each of the stages. A 3rd party inspector SGS representative was selected for the project as well by ZHM Huawu Steel and accepted by the client. After several iterations working with both the project client and consultant, the ITP was agreed and approved well before production started.

ZHM Huawu Steel successfully completed the full steel fabrication in May 2017.

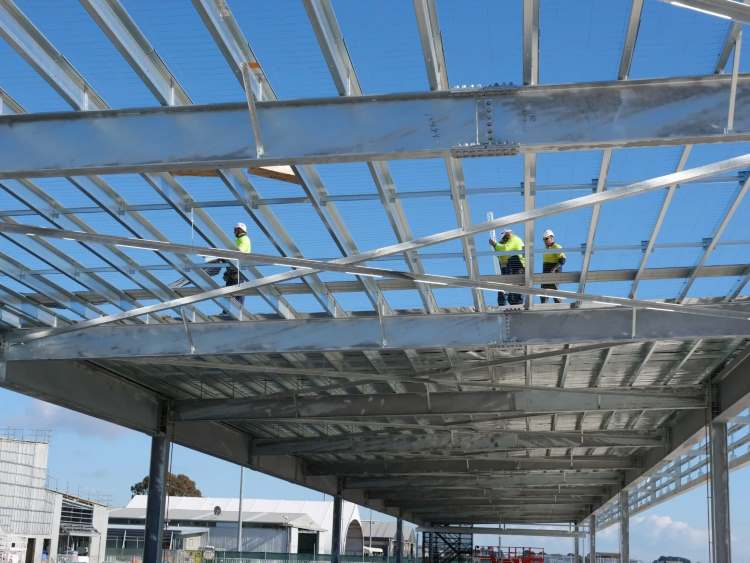

RAAF_Aircraft_Hangar_Steel_Structures_Australia_09_Roof-purlin-installation

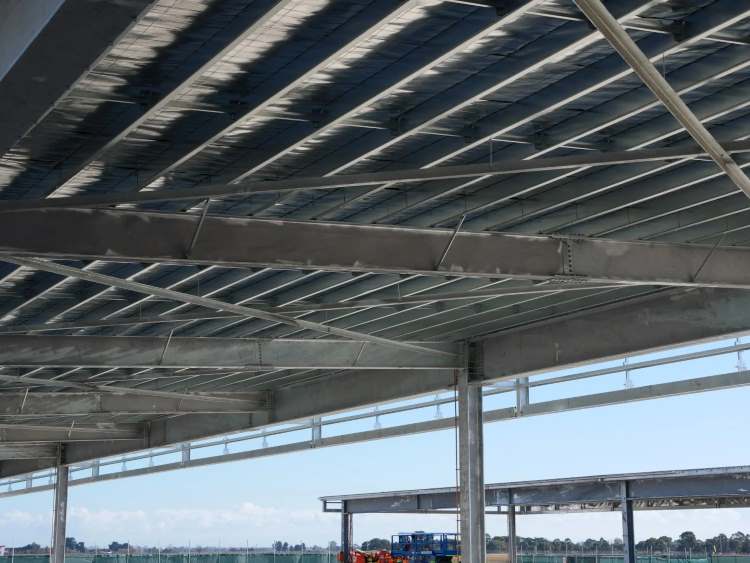

RAAF_Aircraft_Hangar_Steel_Structures_Australia_10_Roof-panel-ceiling-installation

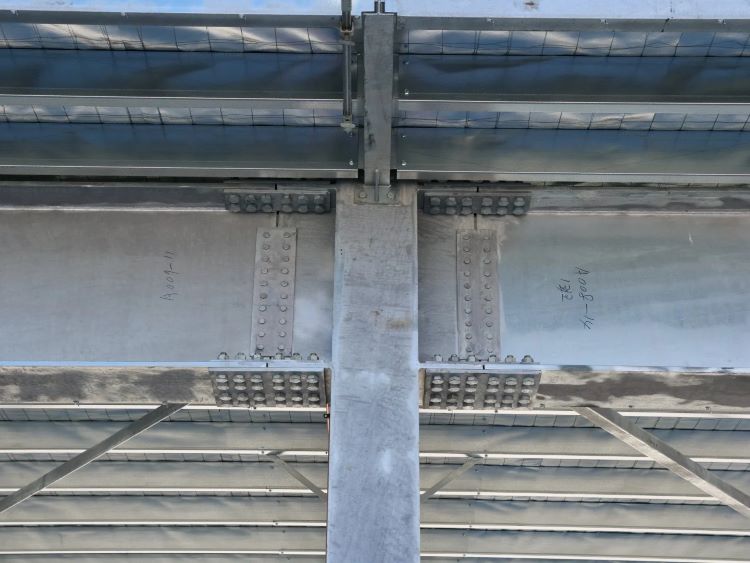

RAAF_Aircraft_Hangar_Steel_Structures_Australia_11_bolted-beam-splicing-connection


Why ZHM Huawu Steel pre-engineered prefabricated aircraft hangar buildings ?


Reliable_and_customized_DesignsG
Cutting_edge_designing_process
Free_online_Pricing_System
Easy_Bolt-by-number_Assembly
Reliable and Customized Designs Cutting Edge Designing Process Free Online Price System Easy Bolt-by-number Assembly
Over_two_decades_of_Experiencey
Value_Engineering_for_Money
Unmatched_In_Quality
Excellent_Customer_Service
Over Two Decades of Experience Value For Money Unmatched in Quality and Craftmanship Excellent Customer Service

Would you like to see more information and images of ZHM’s Metal Steel Structure pre-engineered prefabricated aircraft hangar buildings ? Visit our Photo Gallery.
