Steel Structure Chimney Towers
- Brand: ZHM Steel Towers
- Type: ZHM Steel Towers
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Chimney tower, also known as torch tower, refers to the chimney support tower, exhaust emission tower, chimney auxiliary support tower, etc.
The main method is to support the supported pipe body with a steel structure support frame, and the structural forms are self-supporting and pulling. And it is mostly used in departments such as petrochemical and combustible gas emissions, with a height range of 10-200 meters.
The main function of a chimney is to pull out flames and smoke, exhaust smoke, and improve combustion conditions. Inside high-rise buildings, there are generally varying numbers of vertical shafts such as stairwells, exhaust ducts, air supply ducts, smoke exhaust ducts, elevator shafts, and pipeline shafts. When the indoor temperature is higher than the outdoor temperature, the indoor hot air naturally rises along these vertical channels due to its low density, and seeps out from the high-rise part through the gaps of doors and windows and various holes. The outdoor cold air, due to its high density, is supplemented by the infiltration from the lower layer, forming the chimney effect.
Steel Structure Chimney Towers
As a professional high quality Steel Structure Chimney Tower manufacturer, you can rest assured to buy Steel Structure Chimney Tower from ZHM Huawu Steel and we will offer you the best after-sale service and timely delivery.Send Inquiry
Product Description
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Steel Structure Chimney Towers, ZHM Huawu Steel looks forward to cooperating with you.
【 Main function 】 The main fiberglass flue external support steel frame.
【 Product Features 】 Assisted support for fiberglass steel pipes, with small footprint, short production cycle, convenient installation, simple maintenance, and recyclability.
【 Main use 】 Used in petroleum, chemical and other units.
The structural form is mainly a four column angle steel structure.

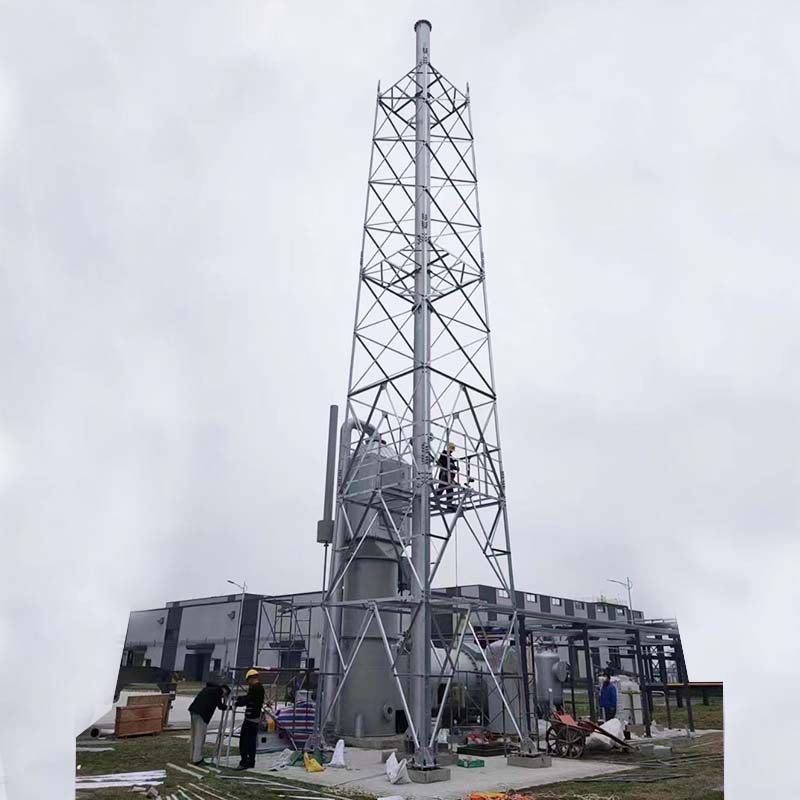

The chimney tower is composed of the main tower body, working platform, lightning rod, rotating staircase, bolts, connecting steel plate, and lightning lead. The angle steel is generally made of Q235B steel, all of which are hot-dip galvanized with anti-corrosion treatment. The connecting bolts are of grade 6.8, and the tower body is equipped with a ladder with a side width of 700mm. There is a working platform on one floor, and a lightning rod is installed on the top of the tower. The lightning protection grounding resistance is less than or equal to 10 ohms.
Why ZHM Huawu Metal Steel Structure Chimney Towers ?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM Huawu Steel's Metal Steel Structure Chimney Towers ? Visit our Photo Gallery.
