Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines
In an electric power transmission line, a suspension tower is where the conductors are simply suspended from the tower, the mechanical tension being the same on each side.
In this case, the tower is supposed to carry a downward force, and a lateral force, but not a longitudinal force.
These may have, for each conductor, an insulator string hanging down from the tower, or two strings making a "V" shape. In either case, sometimes several insulator strings are used in parallel to give higher mechanical strength. These are used where a transmission line continues in a straight line, or turns through a small angle. In other cases, a tension tower (C or D Towers) is used.

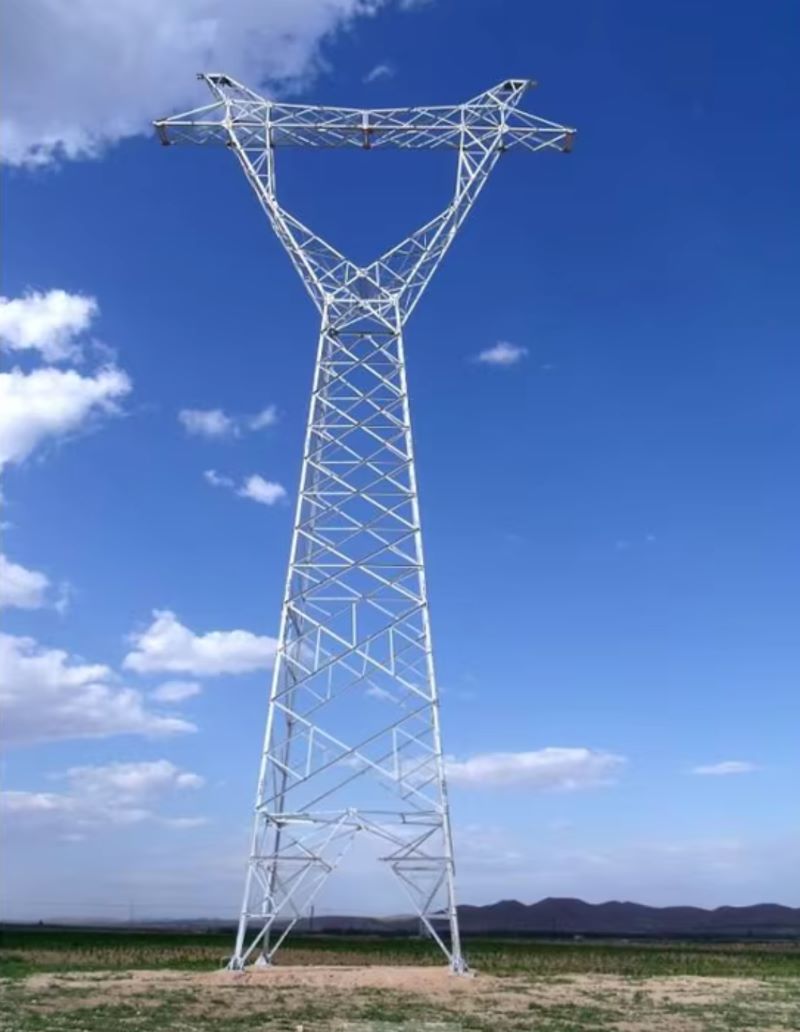

Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Detail Fabrication and Erection Drawings
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Erection Sequence

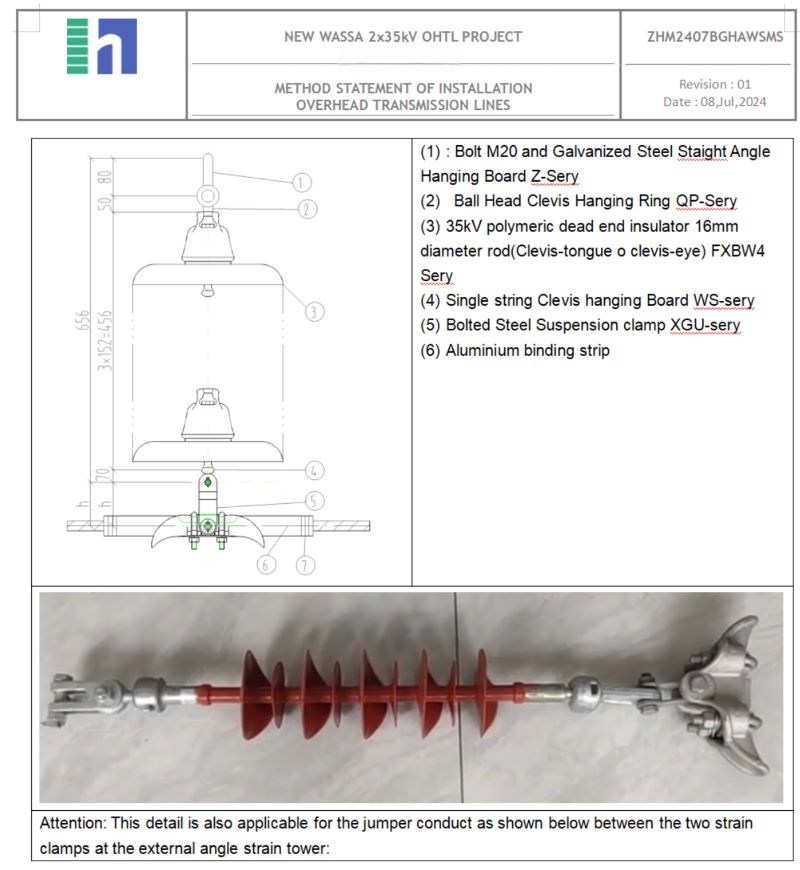

Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines:ACSR Conduct Insulator Connections with Steel Crossarms

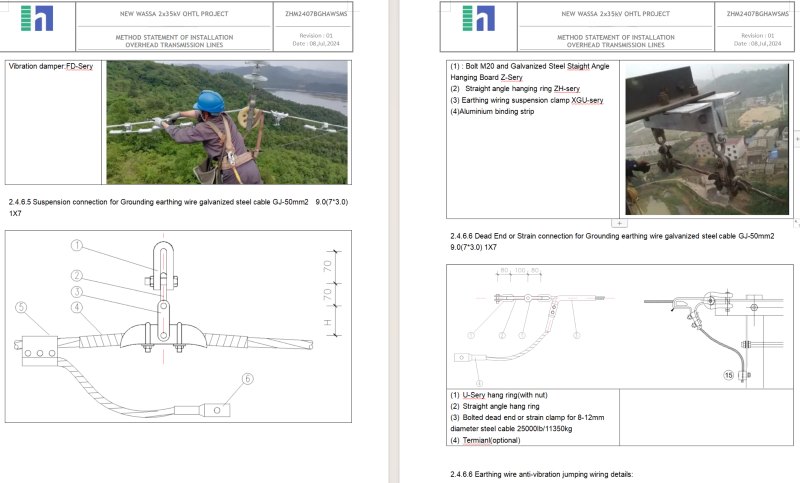

Straight Alignment Suspension Towers | Earthing Strand wire Connections with Steel Crossarms
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines
ABOUT US
After more than 20 years’development, ZHM Huawu Steel now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on.ZHM Huawu Steel actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.
Since 2014, ZHM Huawu Steel has been actively developing international business, successively developped the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, ZHM Huawu Steel has saved a lot of project costs for customers and won their recognition.
Production Capacity
Minimum Order Quantity : Negotiation
Price : Negotiation
Packaging Details : Standard National Packing Method
Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment.
Supply Ability : 4000 Ton/Tons per Month
Brand Name: ZHM Huawu Steel
Certification: ISO9001,CE
Detail Information
Place Of Origin: China
Model Number: ZHM-ST052
Matieral: Steel Q235B/Q345B/Q420
Usage: For High Voltage Transmission Lines And Blow Transmission Line
Function: As A Frame Base Structure
Standard: Design As Customers' Requirements
Related Product: Steel Tower Bolts And Nuts
Application: Power Line Transmission
Quality Inspectation: ISO9001,CE
High Light: Iso Certificated Lattice Steel Towers, Q235B Lattice Steel Towers, Iso Certificated Lattice Towers Straight Alignment Suspension Towers for Overhead Line Power Transmission Lines(OHTL)
Product Description
Product Name: Transmission line angle steel lattice tower
Material: Steel Q245/Q355/Q420
Brand: ZHM Huawu Steel
Colour: Customized
Surface treatment: Hot Dip Galvanised as per BS/EN/ISO 1461 or ASTM A123
Place of Product:China
Voltage Grade: 33kV-330kV
Certification:ISO9001:2015
Wind Speed: 120KM/H
Lifetime: More than 30 Years
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Storage of Raw materials ready for production
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Workshop production On-going
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Projects Packaed Ready For Shipment
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Projects Packaed Ready For Shipment
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: High strength erection Bolts/Nuts/washers
Detailed Images
Steel raw materials
Our company adopts raw materials from large-scale steel mills which certified by the state , and strictly controls the quality of raw materials .
Advanced equipment
The company uses advanced equipment and trained workers to ensure product quality .
Hot-dip galvanized bolts and nuts
All the iron towers produced by our company have matching hot-dip galvanized bolts and nuts. All the screws in the height of 9 meters from the ground for the poles and towers and the connecting steel bolts below the cross arm are all anti-theft bolts to solve the problem of theft prevention of the poles and towers .
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. ZHM Huawu Steel has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Design and Consultant
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Supervision of site installations
Package
Global-network map
Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines: Global Customers and Partners:
ENDE,ENEL,Claro, Celec, Cnel, Arteche, Engie, PowerChina,Prodiel, Cobra, TSK,Voith,Enerpetrol,S.A,Siemens Energy, Elecnor, RED,Aldesa,VT,Kalla,Grupo ICE,Inproel S.A., Electroval,EPM,Enemek,Societe Nationale D'Electricite, Tigo, Selegsa,National Grid, Enosa, Inginex,Siselec, AEE,Sadeven,TS Transformers, Electric Supply LLC, Ethoran, EnergiAPD,Engemas, Grupo SAESA, LTL Holdings, Energys, Esemec, Isotron.etc.
Why ZHM Huawu Metal Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines ?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM Huawu Steel's Metal Straight Alignment Suspension Towers | Overhead Line Power Transmission Lines ? Visit our Photo Gallery.
