The compact 200 series truss bridge adopts a modular design and has excellent interchangeable connectivity. Many countries around the world have purchased compact 200 prefabricated highway steel bridges as temporary or semi-permanent bridges. Its application has been expanded from pure military use to civil highway bridge fields.

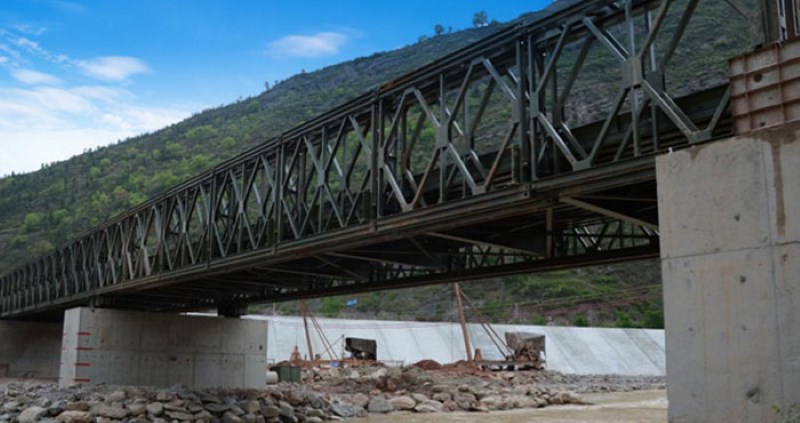

Compact 200 Bailey Bridge (HZCB200)

Model:	HZCB200
Bridge truss height:	2.134m
Net width of bridge deck:	Standard single lane 3.15m, extra width single lane 4.2m, standard double lane 7.35m
Design span:	the maximum span of a single span is 54.864 meters (180 feet)
Sidewalk:	support 0.75m, 1m, 1.2m external sidewalk
Deck material:	Steel deck
Bailey Panel Dimension:	3.048(10ft)*2.134m
Design load:	American Bridge Load Standard HS-15, HS-20, HS-25, Chinese Bridge Load Standard Automobile-10 class, Automobile-15 class, Automobile-20 class, Tracked vehicle 50 tons, Trailer-80, Highway ClassⅠLoad, Highway Class Ⅱ Load

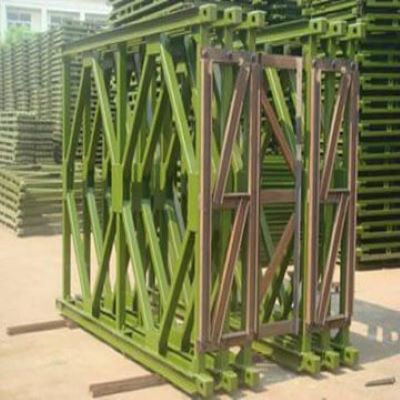

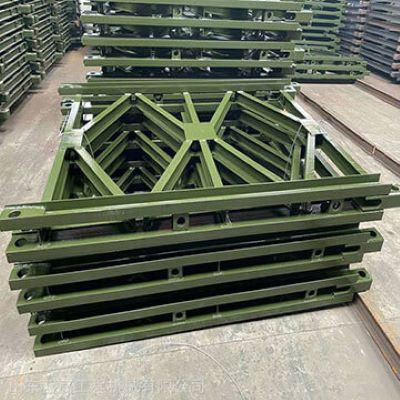

HZCB200 Bailey bridge panel	HZCB200 Bailey bridge panel

The compact 200 Bailey bridge is an upgraded steel structure prefabricated bridge based on the compact 100 Bailey bridge. The appearance is similar to the compact 100-type Bailey bridge. The height of the truss is increased from 1.448 meters to 2.134 meters, and the load-bearing capacity and strength have been increased. Therefore, it is more suitable for use under heavy load. The 200-type compact Bailey bridge supports two lanes, which greatly expands the scope of use of the bridge.

The reinforced chord design of the compact 200 Bailey bridge is divided into two types: light and heavy, which can be selected according to the load of the bridge. The compact 200 Bailey bridge adopts the staggered arrangement of the joint between the reinforced chords and the joint between the truss to reduce the inelastic deformation caused by the pinhole gap. The horizontal support frame of compact 200 Bailey bridge is fixed by straddle connection with the Bailey panel, so as to ensure that the whole bridge has no side bending. The 200-type compact Bailey bridge is mostly used in permanent and semi-permanent Bailey bridge solutions.

Compact 200 Series Prefab Bridges

ZHM Huawu Steel’s compact 200 series fabricated steel bridges are available in a variety of models, including HZCB200, HZCB200A, HZCB250 and HZZB200. Among them, the HZZB200 steel truss bridge is a through bridge connected by a single pin truss structure girder. This series of fabricated truss steel bridges are mainly used for quickly erecting temporary bridges, ensuring heavy vehicles quickly overcome the obstacles of rivers, broken bridges, ditches, valleys, and so on. They are widely used in the field of emergency rescue and disaster relief.

Model	CB200	CB200A	CB250	ZB200
Design span	6~54m (The bridge length can be changed by 3.048m)	6~60m (The bridge length can be changed by 3.048m)	35~87.6m (The bridge length can be changed by 5.84m)	Single span 6.09~60.96m
Bridge truss height	2.134m	2.134m	2.4m	/
Deck material	Steel deck	Steel deck	Steel deck	Steel deck
Net width of bridge deck	4.2m-7.35m	4.2m-7.35m	4.2m-7.35m	4.2m-7.56m
Sidewalk	1m,1.2m external sidewalk	1m,1.2m external sidewalk	external sidewalk	/
Design load	HL-93,HA,HB,Highway ClassⅠLoad, Tracked vehicle 50 tons, etc.	HL-93,HA,HB,Highway ClassⅠLoad, Tracked vehicle 50 tons, etc.	HL-93,HS20-44, HS25-44, HA,HB,Highway ClassⅠLoad, Tracked vehicle 50 tons, etc.	Tracked vehicle 50 tons, Wheel axial compression13 tons.

Compact 200 Series Prefab Bridges Specification

The compact 200 series truss bridge adopts a modular design and has excellent interchangeable connectivity. Many countries around the world have purchased compact 200 prefabricated highway steel bridges as temporary or semi-permanent bridges. Its application has been expanded from pure military use to civil highway bridge fields.

Wide use: It can also be used as various construction platforms, such as suspension bridges, construction trestle bridges, cast-in-place formwork supports, bridge erectors, large-tonnage gantry cranes, etc.

Performance features：Fast erection, short construction period, large span. The bridge parts can be reused many times.

Structure Classification of Compact 200 Series Truss Bridge

The compact 200 series steel bridge supports the combined design of double-layer and multi-row truss structures. According to the different span and load, the number of erection rows of compact 200 truss bridge supports the combination of 1 to 4 rows. Single-layer or double-layer can be selected. At the same time, it supports the design of two lanes. In addition, the sidewalk of 1m or 1.2m can be set outside.

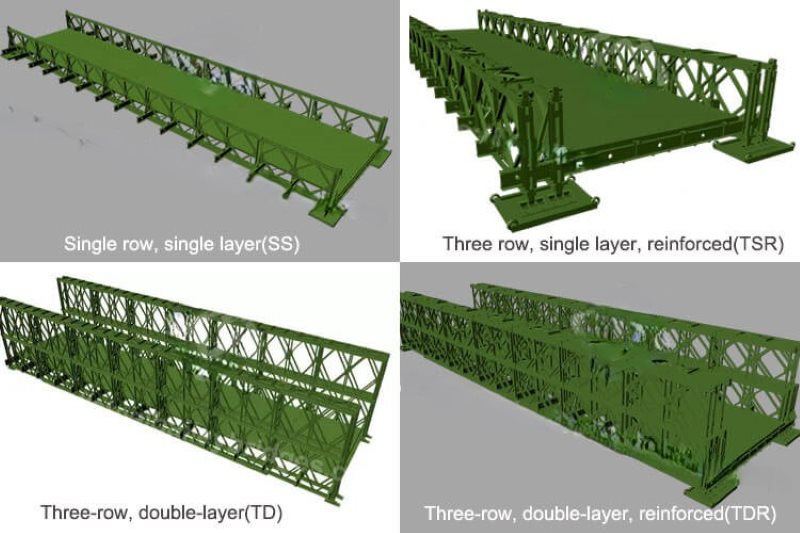

Single Row,Single Layer(SS)	Three Row,Single Layer,Reinforced(TSR)
Three-Row-Double-Layer(TD)	Three-Row,Double-Layer,Reinforced(TDR)

Structure Classification of Compact 200 Series Truss Bridge

The specific structural configuration of the steel bridge will also be designed according to your local environmental factors. These factors include changes in temperature, the frequency of earthquakes, inland or coastal, and the presence or absence of hurricanes. Welcome to consult our experts for free Bailey bridge design.

Why ZHM Huawu Metal Compact 200 Bailey Bridges | Steel Structures ?

Reliable and Customized Designs	Cutting Edge Designing Process	Free Online Price System	Easy Bolt-by-number Assembly
Over Two Decades of Experience	Value For Money	Unmatched in Quality and Craftmanship	Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's Metal Compact 200 Bailey Bridges | Steel Structures ? Visit our Photo Gallery.
