China Prefabricated Steel Pedestrian Bailey Bridge Heavy Loading Capacity supplier

Pedestrian bridges are needed where a separate pathway has to be provided for people to cross traffic flows or some physical obstacle, such as a river. The loads they carry are, in relation to highway or railway bridges, quite modest, and in most circumstances a fairly light structure is required. They are, however, frequently required to give a long clear span, and stiffness then becomes an important consideration. The bridges are often very clearly on view to the public and therefore the appearance merits careful attention. Steel offers economic and attractive forms of construction which suit all the requirements demanded of a steel footbridge.

Content of Index:

1. Product Details

2. Detailed Product Description

2.1.Features of Prefabricated Steel Pedestrian Bailey Bridges

2.2.Advantages of Prefabricated Steel Pedestrian Bailey Bridges

Product Details:

Place of Origin: Zhejiang, China Brand Name: ZHM Huawu Steel Certification: ISO9001:2008, SGS, etc. Model Number: OWN Payment & Shipping Terms: Minimum Order Quantity: 1 pcs Price: USD1000~USD1200 per ton Packaging Details: Seaworthy packings into container or bulk vessel Delivery Time: Based on client's needs Payment Terms: L/C,T/T Supply Ability: 600,000 tons per Year

Chat Now with ZHM Huawu Steel

Detailed Product Description

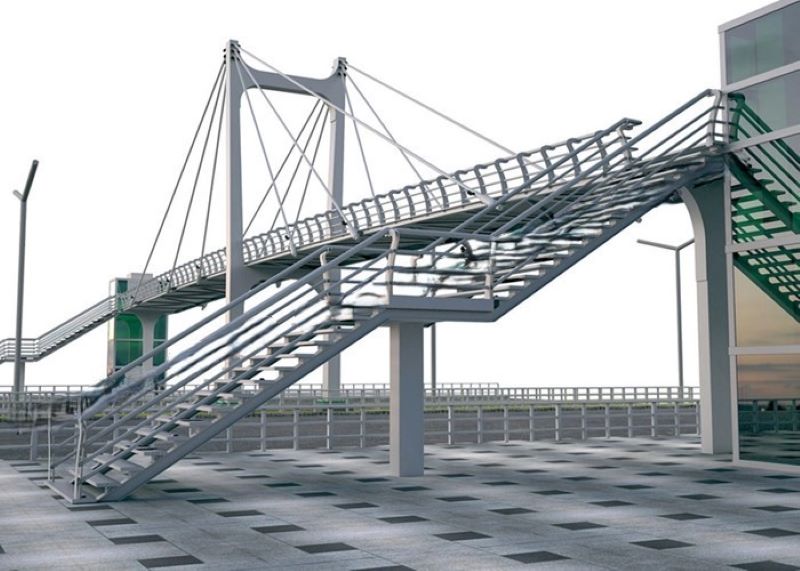

Material: Q345B Steel  Surface Treatment: Painted Or Hot Dipped Galvanization as per BS/EN/ISO 1461 and ASTM A123.etc Size: According To Client's Need  Installation: Lifted Into Place By Hand Without Crane, Easier Construction.etc Multi-use: Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic.  Carry Capacity: Resist Strong Wind And Earthquake, Bears Heavy Snow.etc Model Number: CB100(321-Type)&HD200  Grade: Q345B-Q460C Q345B-Q460C: AISI, ASTM, BS, DIN, GB, JIS  Color: Army Blue, Light Gray, Hot Galvanized Or Customized.etc

High Light: Steel Pedestrian Bailey Bridge, Prefabricated Steel Pedestrian Bailey Bridge, Heavy Loading Capacity Steel Bailey Bridge

New Zealand Standard Heavy Loading Capacity Prefabricated Steel Pedestrian Bailey Bridge

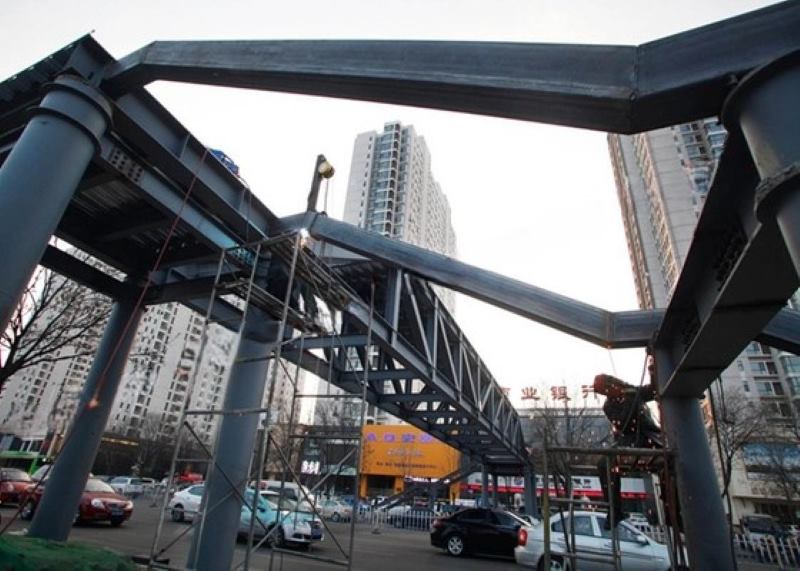

Pedestrian bridges are needed where a separate pathway has to be provided for people to cross traffic flows or some physical obstacle, such as a river. The loads they carry are, in relation to highway or railway bridges, quite modest, and in most circumstances a fairly light structure is required. They are, however, frequently required to give a long clear span, and stiffness then becomes an important consideration. The bridges are often very clearly on view to the public and therefore the appearance merits careful attention. Steel offers economic and attractive forms of construction which suit all the requirements demanded of a footbridge.

Pedestrian Bailey Bridges are built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of pedestrian bridging applications. Because of their excellent versatility and overall value, thousands of Pedestrian Bailey bridges have been installed throughout the world.

Product Name	Assembled Temporary Pedestrian Bailey Steel Bridge
Width	7.6meter or customer required sizes,etc.
Maximum span	64meter single span and 200meter multi-span or customized.
Bridge deck	Steel composite panel,timber,concrete,etc.
Steel grade	Q345B (equivalent to ASTM A572) or customized materials,etc.
Loading capacity	20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion	Original painted or Hot dip galvanized,army blue,etc.
Advantages	Price effective and technical full analysis and supports

Features of Prefabricated Steel Pedestrian Bailey Bridges:

• • Adaptable - pre-engineered to match each application
• • Fast - modular stocked components, open to traffic in days
• • Lower Cost - an alternative to custom designed bridges
• • Easy - to handle, transport, assemble, install and reuse

Advantages of Prefabricated Steel Pedestrian Bailey Bridges

• Possessing the features of simple structure,
• convenient transport, speedy erection
• easy disassembling,
• heavy loading capacity,
• great stability and long fatigue life
• being capable of an alternative span, loading capacity

Prefabricated Steel Pedestrian Bailey Bridge Heavy Loading Capacity

Tag: prefabricated bridges, structural steel bridge, bailey bridge

Why ZHM Huawu Metal Prefabricated Steel Pedestrian Bailey Foot Bridge Heavy Loading Capacity ?

Reliable and Customized Designs	Cutting Edge Designing Process	Free Online Price System	Easy Bolt-by-number Assembly
Over Two Decades of Experience	Value For Money	Unmatched in Quality and Craftmanship	Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's Metal Prefabricated Steel Pedestrian Bailey Foot Bridge Heavy Loading Capacity ? Visit our Photo Gallery.

HOW CAN WE HELP YOU?

ZHM’s world-class team — together with our raw material suppliers and subcontractors — works to solve your most challenging design, engineering, farbrication or construction issues.

Contact ZHM by telephone at +86 135-8815-1981 (wechat and whatsapp) or send us your questions via email to info@zhmsteelworks.com
