Prefabricated Steel Structure Gas Station Canopy Construction

1)The main roof structure design of a large scale gas station, the roof structure type of a gas station is a square pyramid flat space frame;

2)The rod material is Q355B/Q235B steel, the elastic modulus is 210GPa, the Poisson’s ratio is 0.3, and the material density is 7.85g/cm3. The upper chord, lower chord, and middle diagonals are all made of hollow steel pipes.

3)The height-span ratio of the space frame is 1/12, and the number of short-span space frames is 9;
4)The span of the steel space frame is 54m × 54m, and the length-to-width ratio of the quadrangular pyramid flat space frame is 1:1;
5)The included angle between adjacent members of the basic space frame unit is between 45° and 60°;
6)The steel space frame is supported by the lower support structure, the column spacing bay is 6m, and the nodes are rigid and fully restrained;

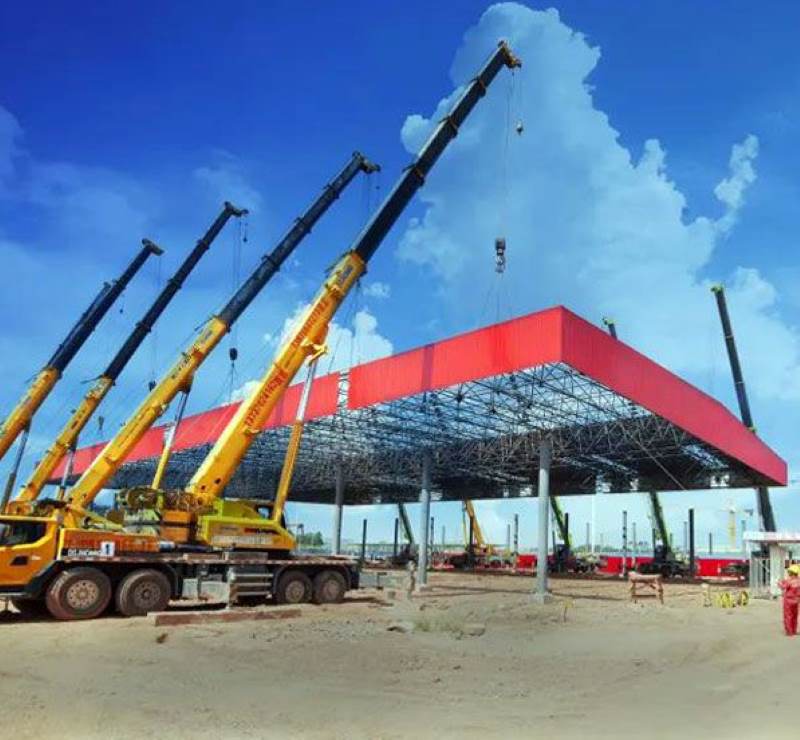

Prefabricated Gas Station Steel Structure Canopy Buildings During Erection

Technical Advantages

The gas station canopy space frame is used as a sunshade and rainproofs the gas station. It is composed of steel pipe connections. It is the first choice for the gas station because it has a long service life. There are two types of the space frame of the gas station : Type 1-welded balls and Type 2-bolted balls.

The reliability of the gas station in the space frame structure refers to the completion of the scheduled safety and availability in a given period of time (design reference period) under normal conditions (normal construction, normal construction, normal use, and normal maintenance). , durability, and other basic capabilities, generally 50 years). Obviously, the space frame structure has safety, applicability, and durability, which means that the space frame structure has reliability. Therefore, the reliability of the space frame structure is the general term for the safety, applicability, and durability of the space frame structure.

Prefabricated Gas Station Steel Structure Canopy Buildings During Erection

So the characteristics of the petrol station canopy space frame:

• 1: Easy to install, just a few cranes
• 2: The degree of prefabrication factoryization is high, 80% of the workload is factorized, which is in line with the characteristics of national prefabricated buildings
• 3: The installation speed is fast, which saves time for the owner to invest in advance
• 4: Good wind resistance, snow resistance, and earthquake resistance, high rigidity, and high structural safety
• 5: The roof and side enclosures can be installed on the ground once and hoisted successfully

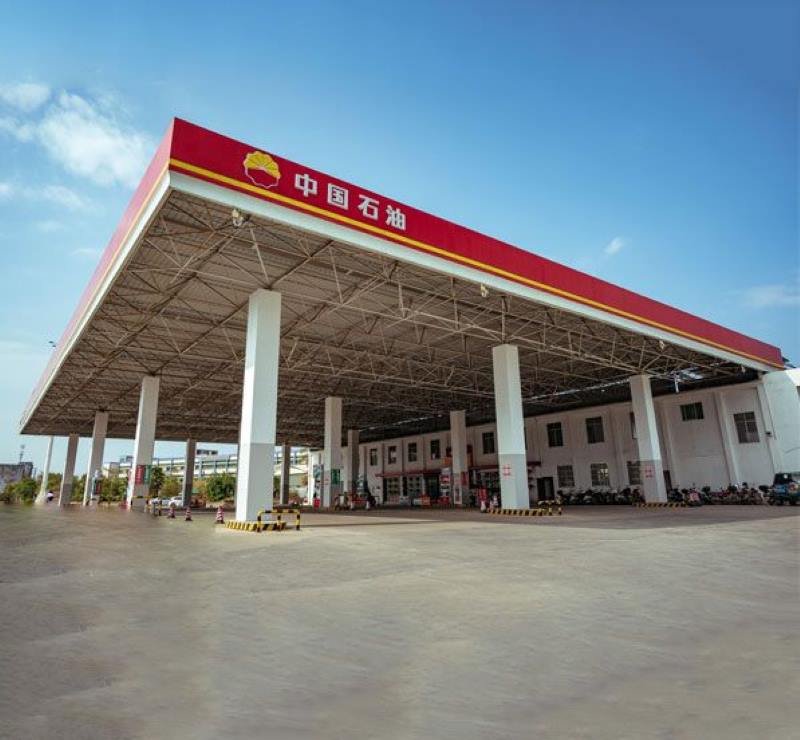

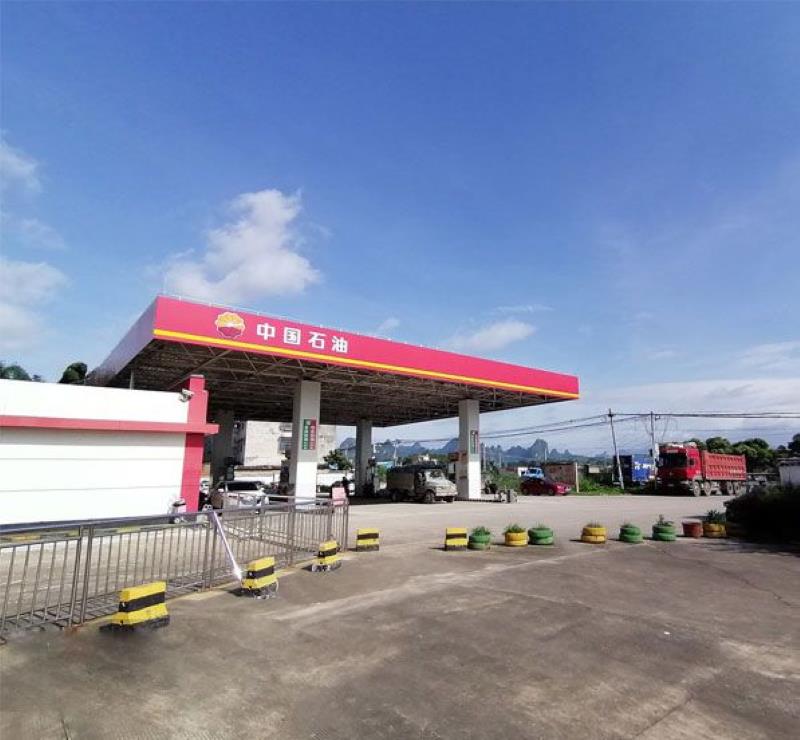

Prefabricated Gas Station Steel Structure Canopy Buildings Completion of Erection

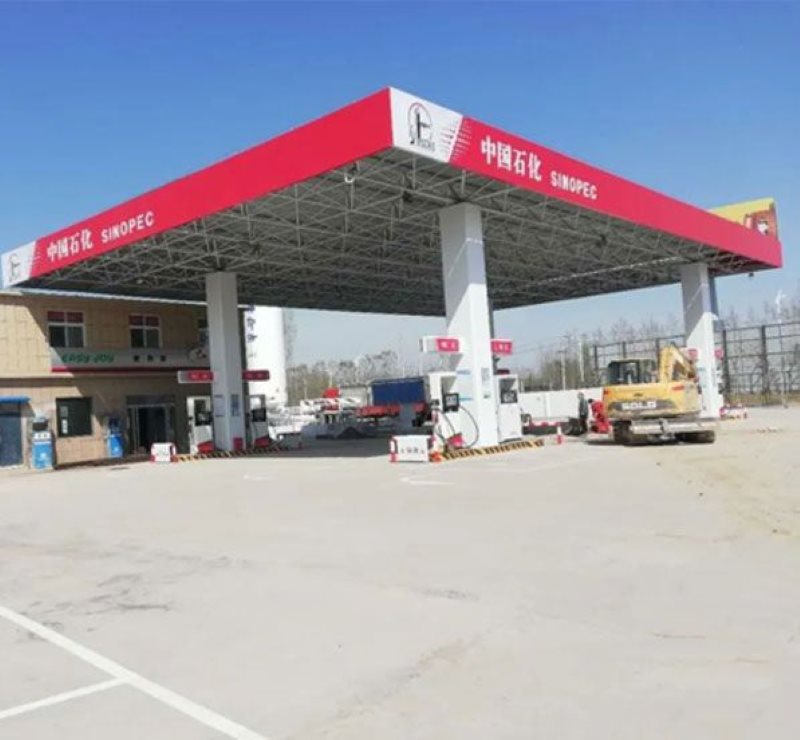

Prefabricated Gas Station Steel Structure Canopy Buildings Completion of Erection
