Before electricity can travel into final consumer's home, it must pass through a substation first. A substation is an assemblage of equipment where electrical energy is passed in order to be stepped up or stepped down.

Transformers inside a substation change the voltage levels between high transmission voltages and lower distribution voltages. The high transmission voltages are used to carry electricity longer distances, like across the country, whereas lower distribution voltages travel to industrial, commercial or residential consumers.

In a T&D system, the major components typically consist of transmission lines, distribution lines, substations and switchyards.

An electrical substation is a collection of equipment used in order to step up or step down electrical currents before they can be used. The most common structures you’ll find in an electrical substation include:

Dead-End Substation Steel Structures

Dead end substation structures are located at the point in the substation where the line angles off or ends. They are usually made with heavy steel in order to carry heavy tension, but they can also be made of the same materials as the other structures in the substation, such as wood poles, concrete, tubular steel or aluminum lattice. The most common dead-end structures are A-Frame steel structures and H-Frame steel structures. A dead-end tower is fully self-supported and at the end of each conductor, it uses horizontal strain insulators to resist unbalanced forces. Dead-end towers are often used as a transition to the entry of a slack-span, but they can also be used when the circuit turns into a buried cable when a line of transmission changes direction sharply or simply to reduce the likelihood of a serious collapse.

Dead-end towers are used to minimize the tower failures that might result from the failure of a conductor. An in-line dead-end tower will be built with two pairs of strain insulators intended to support the lines from both directions, while the lines are connected by a jumper.

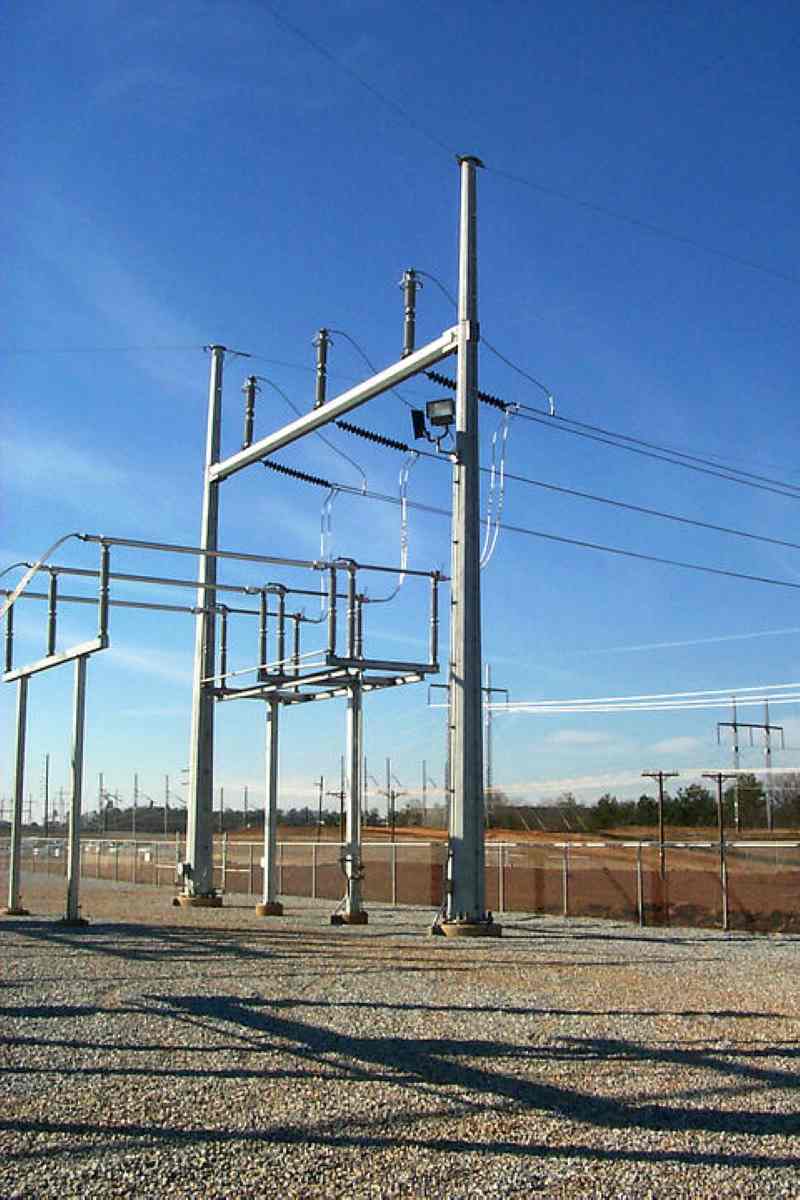

Electrical Steel Substation Structures in Steel Works: H-Frame Dead End Substation Steel Structures

Electrical Steel Substation Structures in Steel Works: A-Frame Dead End Substation Steel Structures

Static Poles Substation Steel Structures

A static pole is a singular, free-standing pole used in order to protect all of the equipment in a substation from lightning strikes by acting as a barrier. Static poles can be made of various materials, such as fiberglass, concrete, metal or wood, and the number of poles a substation requires will depend on the substation’s size. Static poles are often referred to as telegraph posts, hydro poles, power poles, telephone poles, or transmission poles, depending on their function.

Static poles may or may not have overhead shield wires attached to enhance protection. It depends on the size of the substation as to how many static poles are needed.

NOTE: Tapered tubular design is typically efficient and economical in dead-end and static pole situations when compared to AISC standard shape structures.

In order to enhance the pole’s protective qualities, they can also have shield wires attached overhead to protect equipment such as fiber optic cables, electrical cables, street lights, and transformers. Routing these cables overhead is an affordable way of keeping them out of the path of any vehicles and people while keeping them insulated from the ground. Today, static poles are often replaced by underground distribution lines in residential neighborhoods because they can be perceived as an eyesore.

Bus Supports/Equipment Stands Substation Steel Structures

Bus supports are one of the most straightforward structures that you’ll find within a substation. The main function of a bus support is to connect low and high voltage equipment at electrical switchyards and battery banks. Bus supports are both uninsulated and stiff so that they will stay in place in poor weather conditions, making them extremely useful in high seismic locations in order to dampen and move any seismic forces when they appear.

Equipment stands are specially made stands used to store equipment and can come in various forms, such as switch stands, lightning arrestors, coupling capacitor voltage transformer stands, current transformer stands and potential transformer stands.

Bus Supports are the most basic structure found inside a substation. Its main purpose is to provide support for rigid bus as it travels through the substation. Rigid bus is stiff and will not move around during weather events. Unlike rigid, flexible bus is typically used in high seismic areas in order to be able to move and dampen the seismic forces that occur.
