20000Sqm Multi-Functional Processing Workshop Steel Structures,Mexico
- Brand: ZHM-Workshops Warehouses
- Type: ZHM-Workshops Warehouses
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
20000Sqm Multi-Functional Processing Workshop Steel Structures,Mexico
Project information:
1)Size:20280Sqm, 156mx130mx12.8m, including 5 Spans, 26 Column Spacing Bays
2)Steel weight:1200 tons
3)Application: steel structure multifunctional processing workshop with 5t/10t/16t Overhead Cranes
4)Steel structural frame drawing
5)Structure Types:
- Column-Built-up H-sections;
- Roof Rafter Beams-Tempered Built-up H-Section,Q355B(Fy=355Mpa equal to ASTM A572 Gr.50 or ASTM A992)
- Crane Girders-Built-up H-Sections,Q355B(Fy=355Mpa equal to ASTM A572 Gr.50 or ASTM A992)
- Mezzanine Floor Frame works: Hot-rolled HW/HM/HN Profiles Q,Q355B(Fy=355Mpa equal to ASTM A572 Gr.50 or ASTM A992)
- Secondary Steel Structures, Tie beams, sag Rods, Roof Purlins Z-Shape , Wall Girts C-Shape, Roof monitor sub-frames, Horizontal braces, vertical braces,etc. Q235B (Fy=235Mpa equal to ASTM A36)
7) Surface Coating: Shot-blasting SA 2-1/2 with zinc rich epoxy primer 1 coat 65microns and high glossy Polyutherine finish coat 65microns.
8) Design Engineering: Construction Drawings PKPM designed and SAP2000 for verification, Tekla X Steel for Detailing and Production Drawings development.

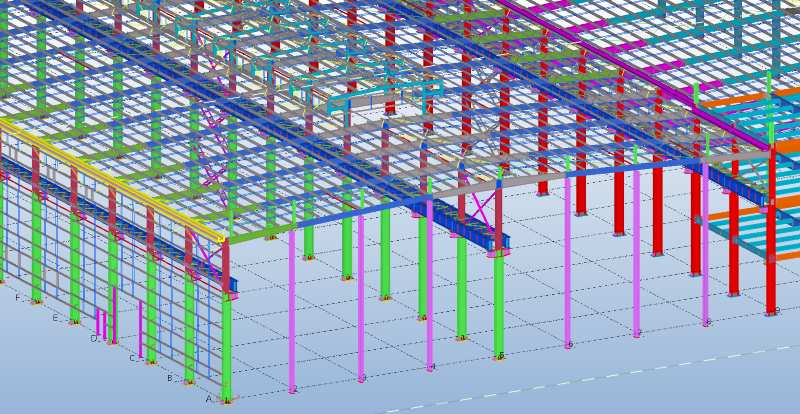

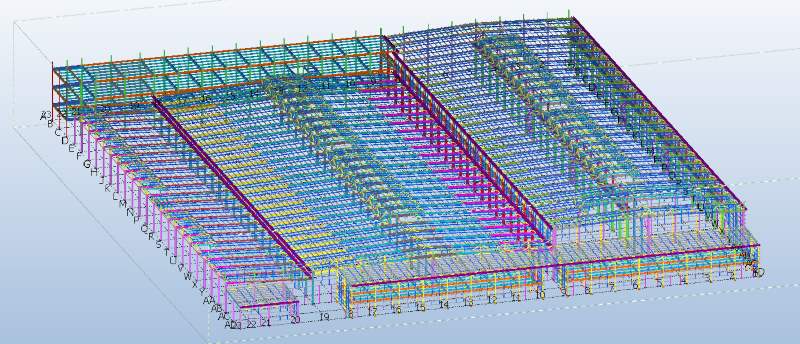

20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:3D BIM Tekla Model of Workshop Building
20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:3D BIM Tekla Model of Workshop Building
20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:3D BIM Tekla Model of Workshop Building: Mezzinane
Why the steel structure workshop is popular in Mexico?
Mexico has a relatively high demand for infrastructure projects this year， which provides many opportunities in the construction and engineering sectors. The Mexican government has been committed to promoting infrastructure construction to drive economic growth and enhance national competitiveness. Some of the major infrastructure projects include road and bridge construction, expansion of railway and air transport networks, improvement of energy infrastructure, and updating of water treatment and supply systems. In addition, Mexico is also investing in housing construction, education, and healthcare facilities. These project demands are driven by factors such as population growth, urbanization, and economic development.
Steel structure building advantages in terms of durability, rapid construction, scalability, and environmental-friendliness are also the reasons why steel structure is popular in Mexico.

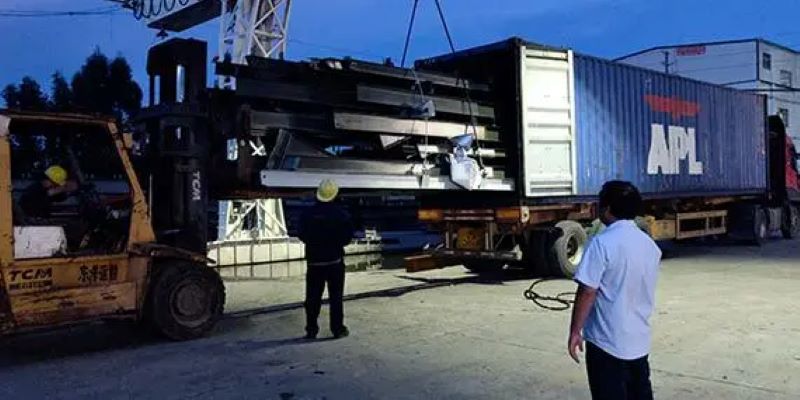

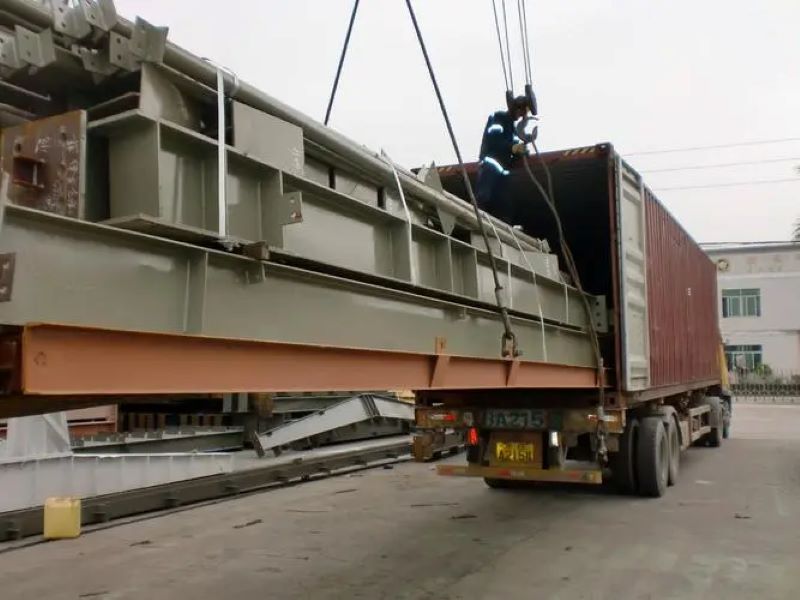

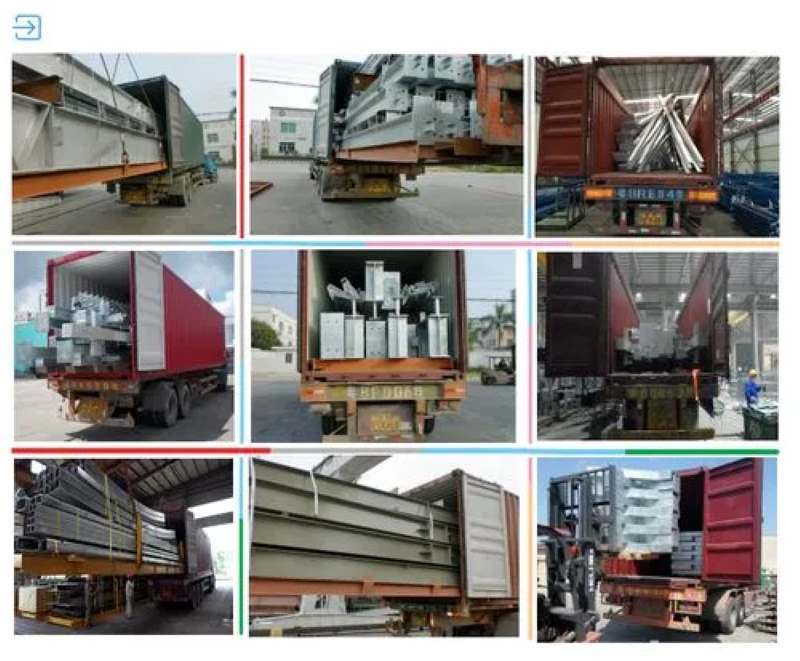

20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:Finished Structural Steelworks Loaded into 40feet HQ Containers
20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:Finished Structural Steelworks Loaded into 40feet HQ Containers
20000Sqm 1200ton Multi-Functional Processing Workshop,Mexico:Finished Structural Steelworks Loaded into 40feet HQ Containers
Why ZHM Huawu Metal 20000Sqm Multi-Functional Processing Workshop Steel Structures ?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM Huawu Steel's Metal 20000Sqm Multi-Functional Processing Workshop Steel Structures ? Visit our Photo Gallery.
