Panama Cattle Slaughtering Plant Building Project
Panama Cattle Slaughter

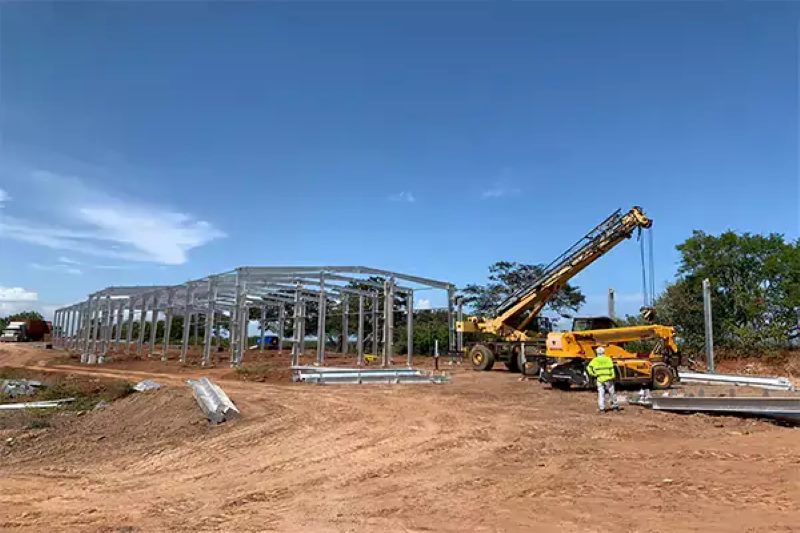

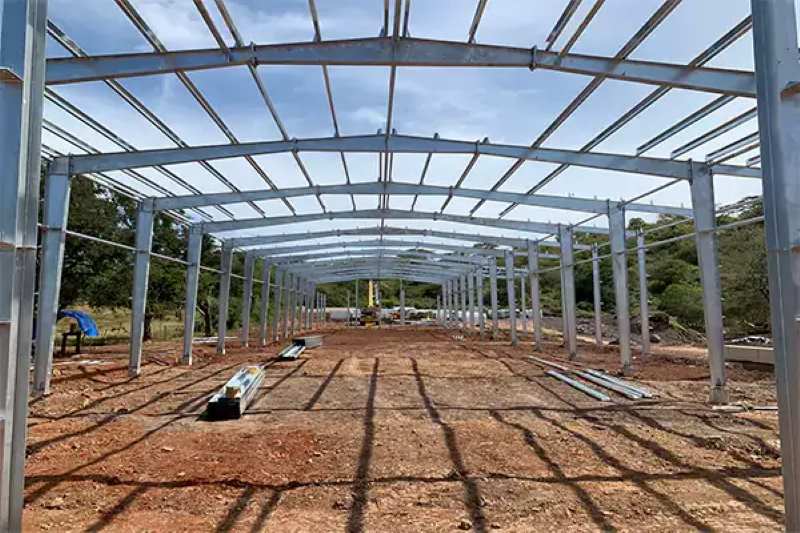

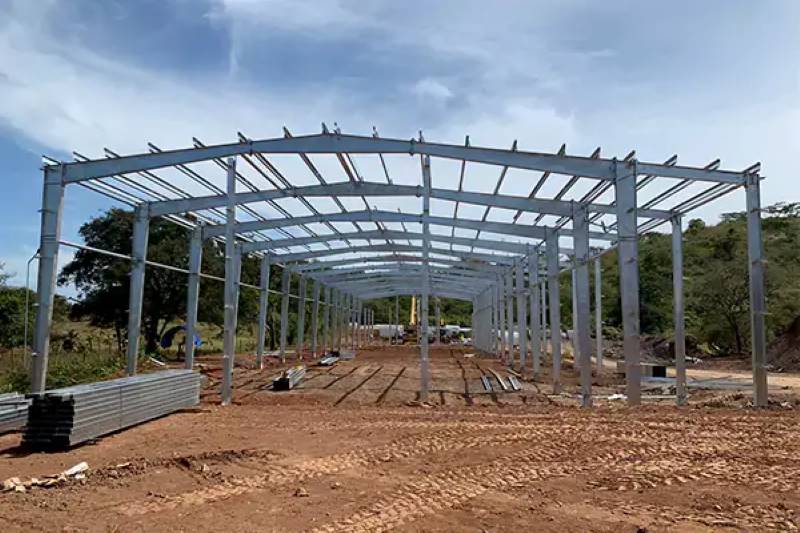

This project is the steel frame structure, including 2 prefab steel structure processing plants with a total area of 2478 square meters. This prefabricated steel structure building is mainly used for Panamanian cattle and pig slaughter.
All the steel structure components and envelope panels of this project are supplied by ZHM Huawu Steel. The steel components are processed and manufactured in the Zhejiang factory, in China, and transported to Ningbo port for shipment.
Content Index:
1.Steel Buildings Project Introduction
Steel Buildings Project Introduction
The specific parameter standards of steel building components refer to the table below.
|
Project 1: Panama Cattle Slaughtering Plant Project 1 Area: total area of 1,794 square meters, length of 78 meters, width of 23 meters, eave height of 7 meters, and ridge height of 8.15 meters. Design Doad: Rigid frame: DL 0.3KN/M2, LL 0.3KN/M2, WL0.66KN/M2; Purlin: DL 0.45KV/M2, LL 0.5KN/M2, WL 0.66KN/M2 |
|
Project 2: Panama Pig Slaughtering Factory Project 2 area: total area 684 square meters, length 37.7 meters, width 18 meters, Eave height 5.9 meters, Ridge Height 5.9 meters Design Doad: Rigid frame: DL 0.5KN/M2, LL 0.3KN/M2, WL0.66KN/M2; Purlin: DL 0.45KV/M2, LL 0.5KN/M2, WL 0.66KN/M2 |
|

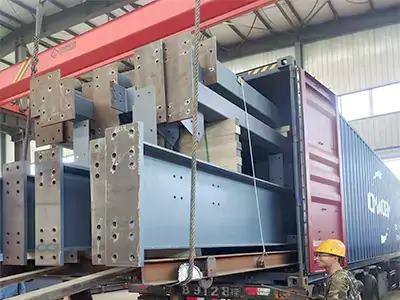

Shipping Time: 60 working days for fabrication after receiving the down payment. Package: 25*40’HQ Containers. Guarantee: steel structure materials for 50 years. |
Structure Material Specifications:
|
Structure |
Parameter |
| Main Steel Materials |
Q355B |
|
Purlin |
Q235B Glavanized |
|
Secondary Steel Frame |
Q235B |
|
High Strengthern Bolt |
10.9S |
|
External Roof Panel |
0.5/100/0.4mmc Greywhite Rock Wool Sandwich Panel |
|
External Wall Panel |
0.5/100/0.4mmc Greywhite Rock Wool Sandwich Panel |
|
Interior Roof Panel |
0.5/75/0.4mm EPS Greywhite |
|
Interior Wall Panel |
0.5/75/0.4mm EPS GreyWhite |
|
Door |
7 Unit Rooling Shutter Doors |
|
Fireproof Steel Door |
56 Units |
|
Ventilator |
2 Sets |
ZHM Steel Structure Advantages
 |
 |
|
Customized Design We provide custom design service, preliminary design is free. The color of the steel frame, roof panel, wall panel is up to you. Green, blue, gray, we can customize it for you. |
Delivery On Time We have two modern steel structure manufacturing workshops and 4 production lines. Your order will not stay in the manufacturing facility for more than 35 days. |
|
|
|
 |
 |
|
Quality Control: From material preparation, cutting, assembly, welding, assembly to final spray drying, we have strict quality control in every step of production. |
Customer Service: We provide production process visualization (pictures and videos), shipment visualization, installation instructions. We sincerely invite customers to visit our factory. |
Why ZHM Huawu Metal Cattle Slaughtering Plant Building Project?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM Huawu Steel's Metal Cattle Slaughtering Plant Building Project ? Visit our Photo Gallery.
