Combined model of two crusher supports and their surge bins, screen support frame with adjacent stair access tower models

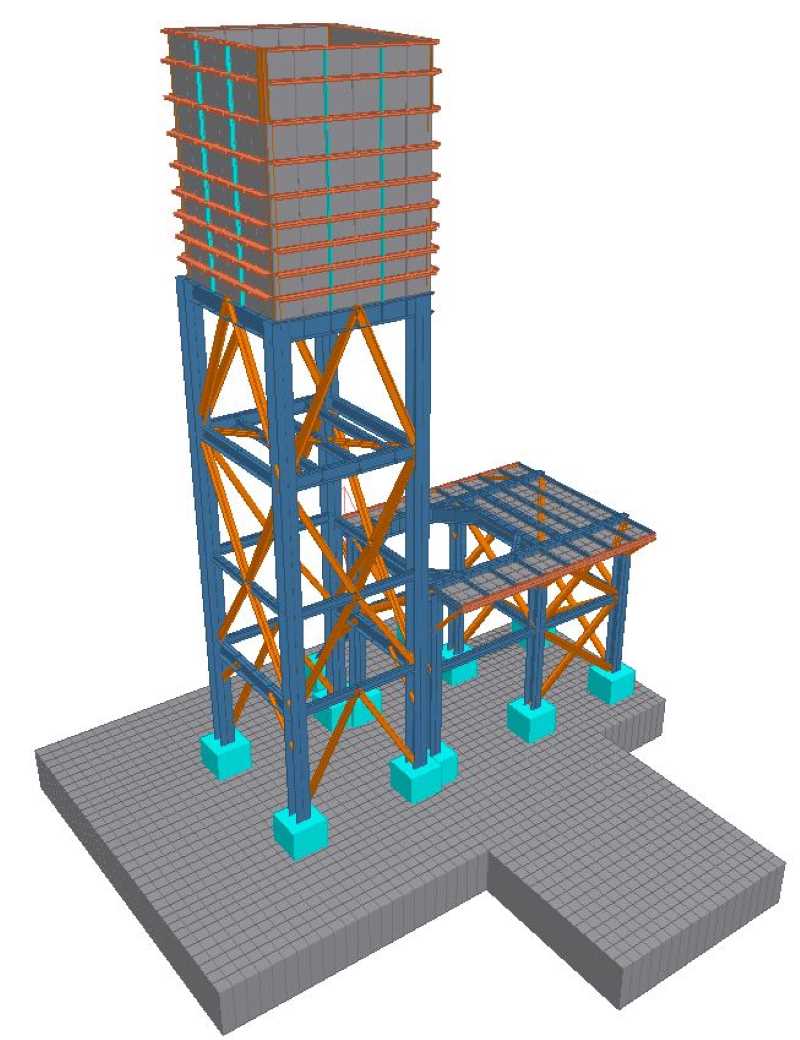

combined analysis model of the diamond processing plant crusher support, crusher surge bin and mat foundation
Project Introduction
Petra Diamond Mine –Steel Plateworks of Surge Bins
Location: Cullinan, South Africa
Year: 2019
Tonnage : 450 tons
Background:Petra Diamonds is a leading supplier of gem-quality rough diamonds, mining at four sites across South Africa and Tanzania.

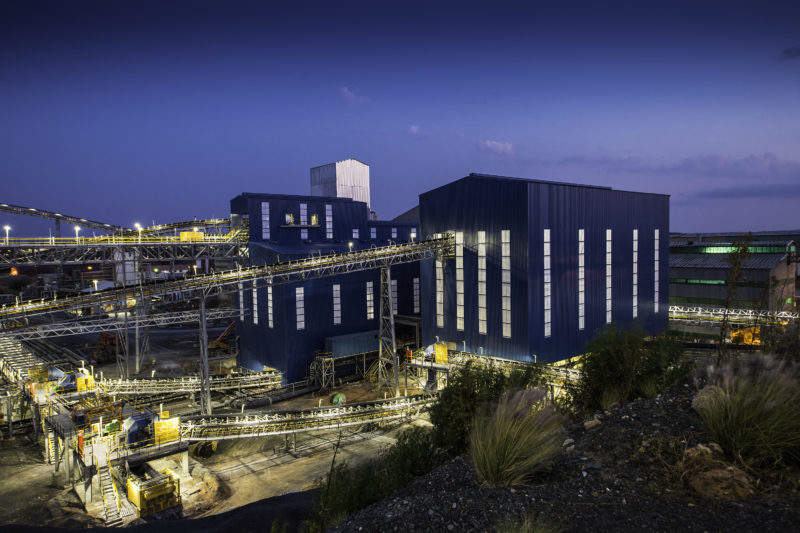

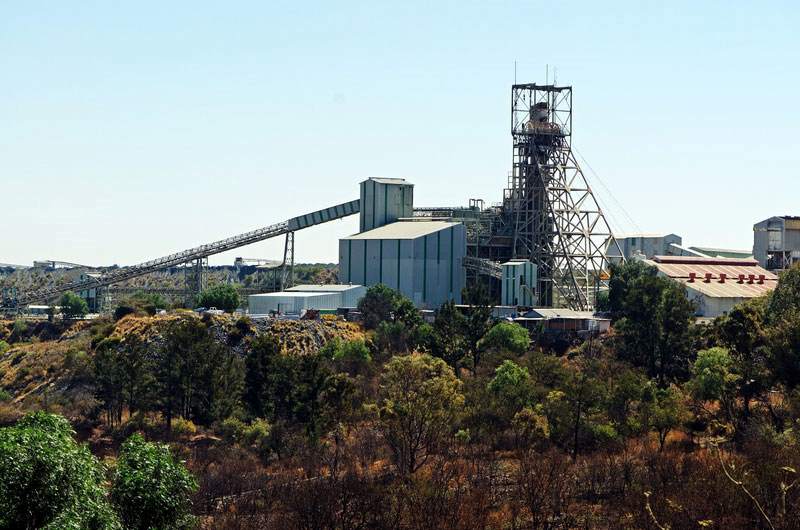

Cullinan diamond mining facilities bird view
Cullinan diamond mining facilities headframes conveyors surge bins
The mined ore was to be stockpiled and blended to achieve this operating range. The material was to be screened and scrubbed to liberate the HM from the clays. The feed was then pumped to the Feed Preparation area of the Concentrator. The concentrator utilised gravity separation and wet magnetic separation to produce a Heavy Mineral Concentrate. The separation can cater for some slimes but anything more than about 3% will affect mineral recovery. The feed preparation utilised a set of cyclones to remove the majority of the clays and presented the upgraded feed to the surge bin. The cyclone overflow was then treated in thickeners for disposal with the tailings.
The Surge Bin was designed to have mass flow characteristics allowing material to be stored for up to an hour with a consolidation in excess of 80%w/w. The material is withdrawn using slurry pumps to feed to the spiral separators. Various forms of dilution water are injected into the bin to assist in the density control of the slurry.

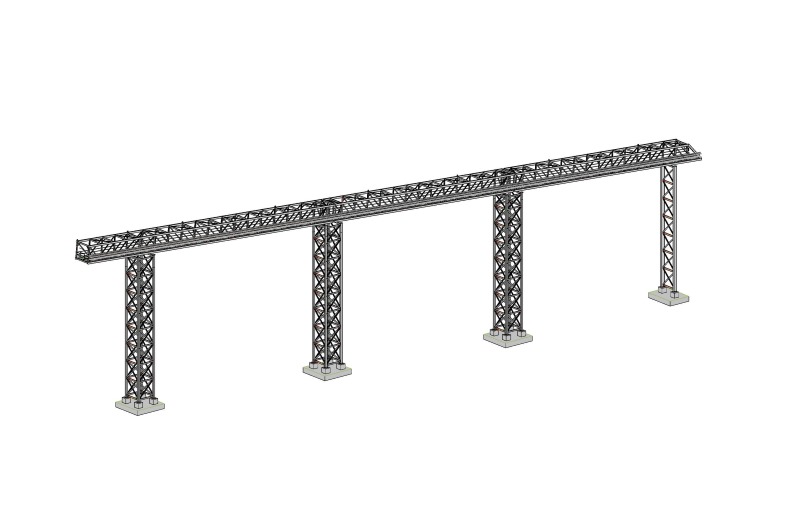

Cullinan diamond mining Conveyor Gallery

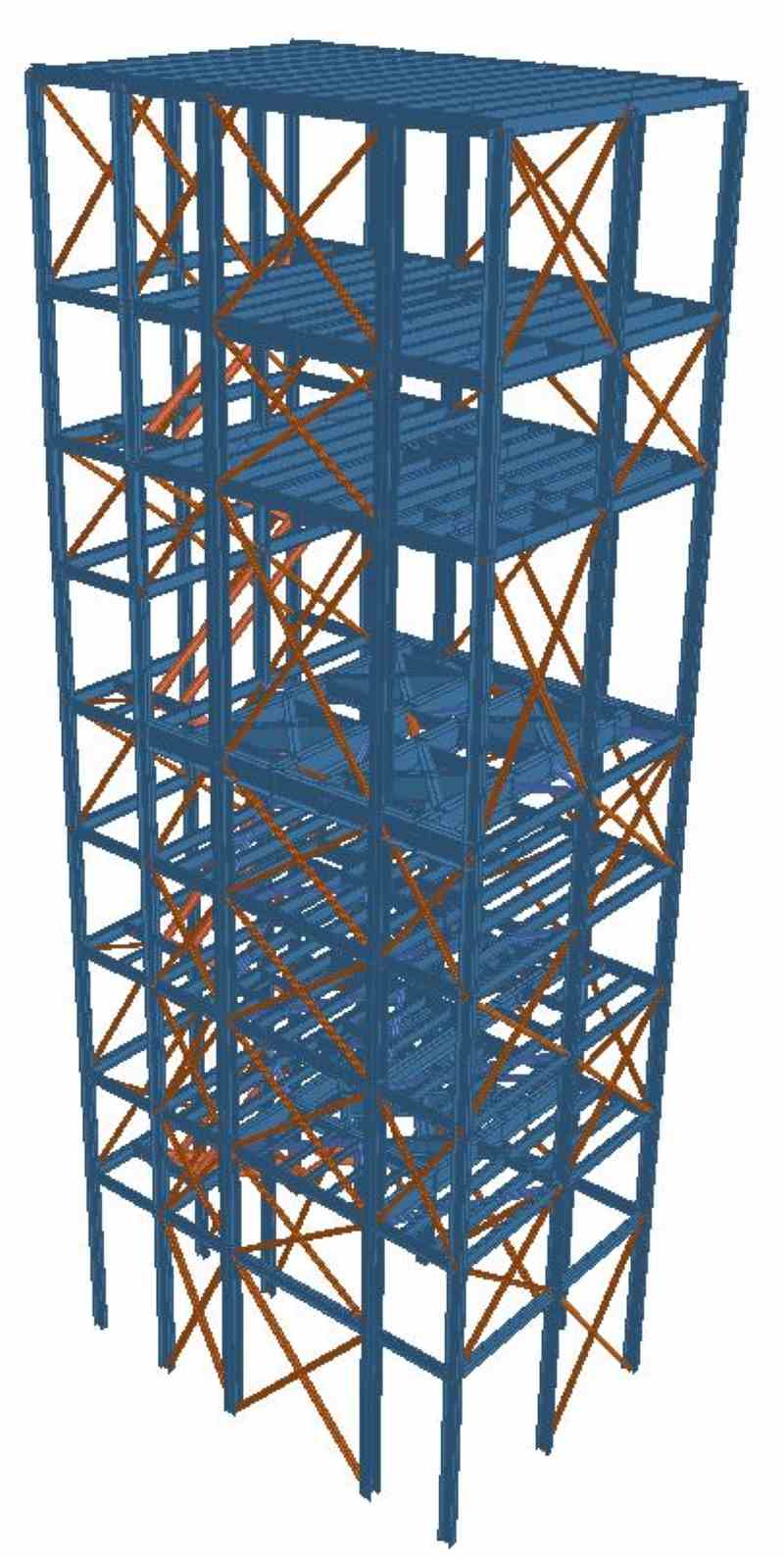

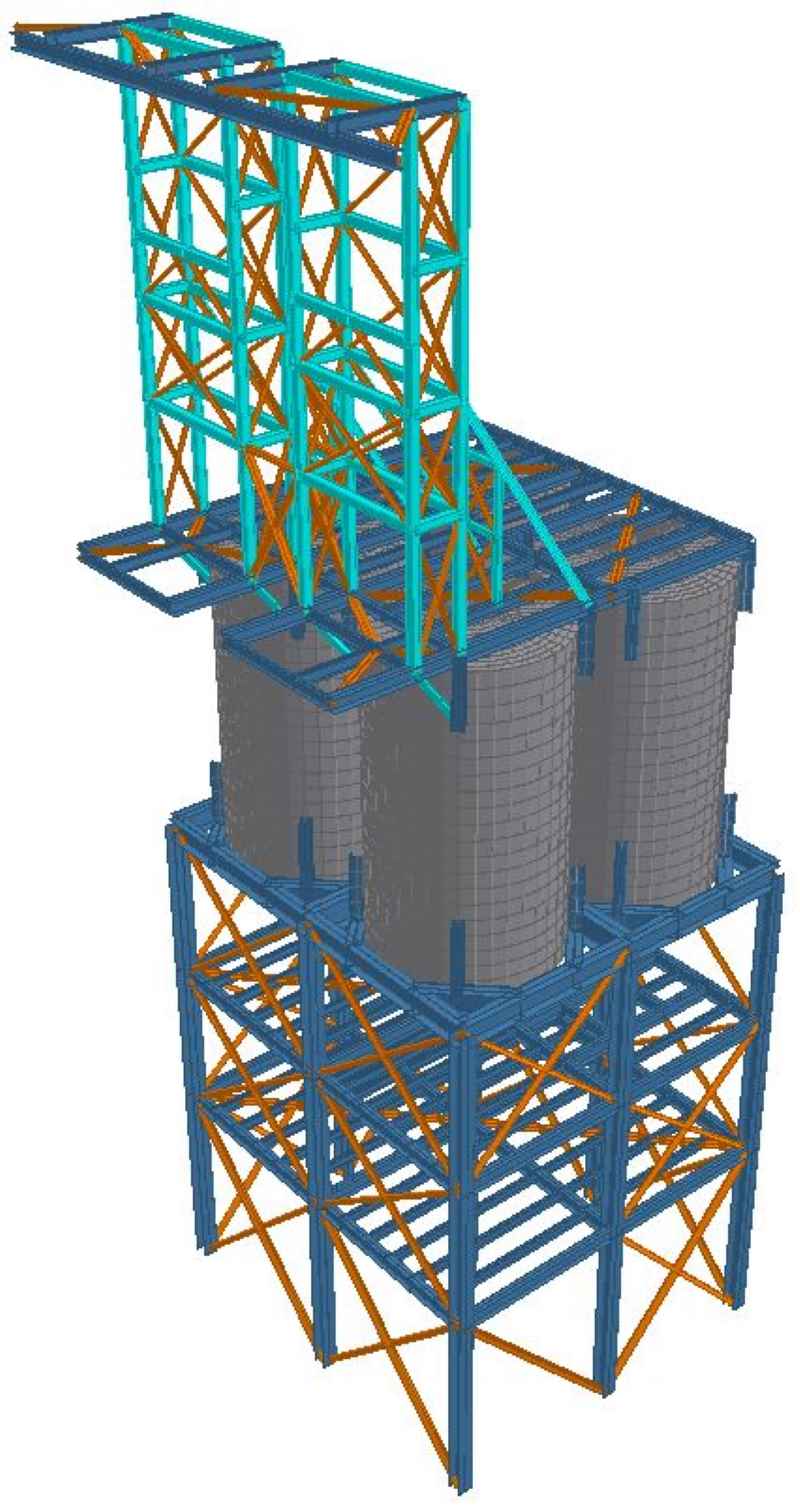

silo support structure 3d rendered

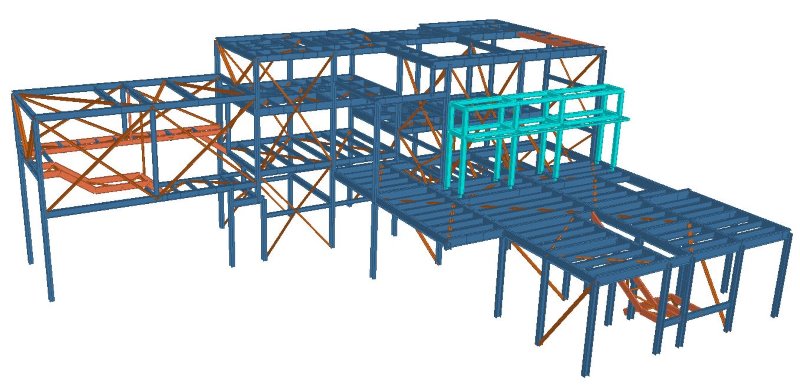

Steel Structure Supporting 4 mixers support Feed Hoppers, 2 conveyers, color staitons and other auxiliary equipment structure 3d extruded view
Petra Diamond Steel Structure Supporting 4 Cement and aggregate silos, mixers and other auxiliary equipment

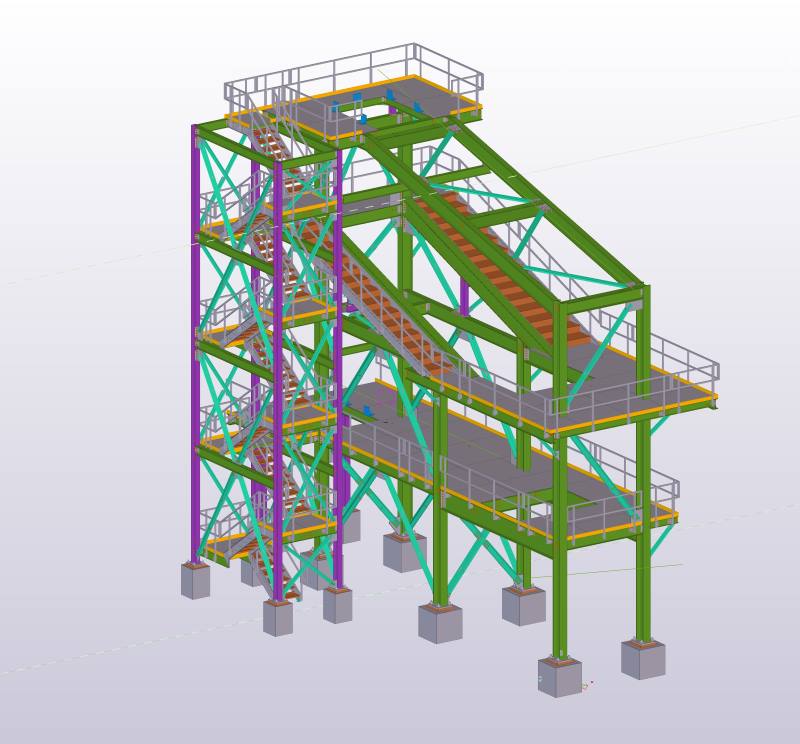

Petra Diamond Screen Support Frame with adjacement stair acess towers
Workshop preassembly Surge Bins plateworks

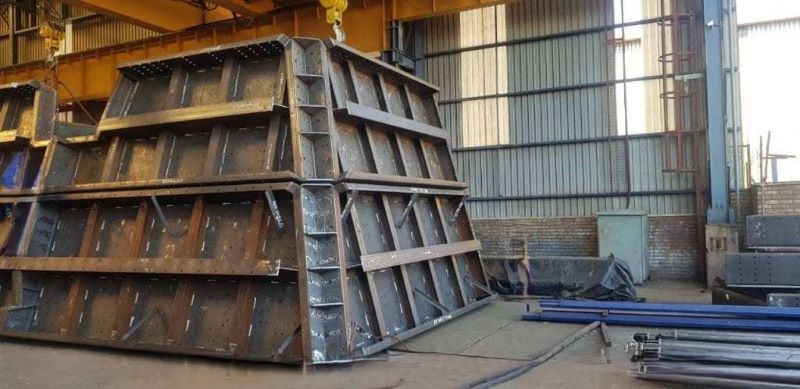

Mine Surge Bins trial assembly in workshop

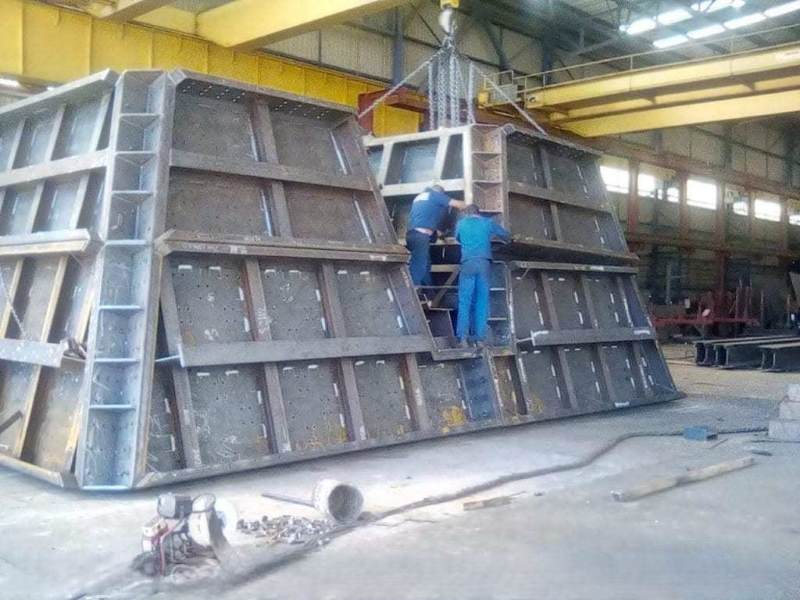

Mine Surge Bins inspection

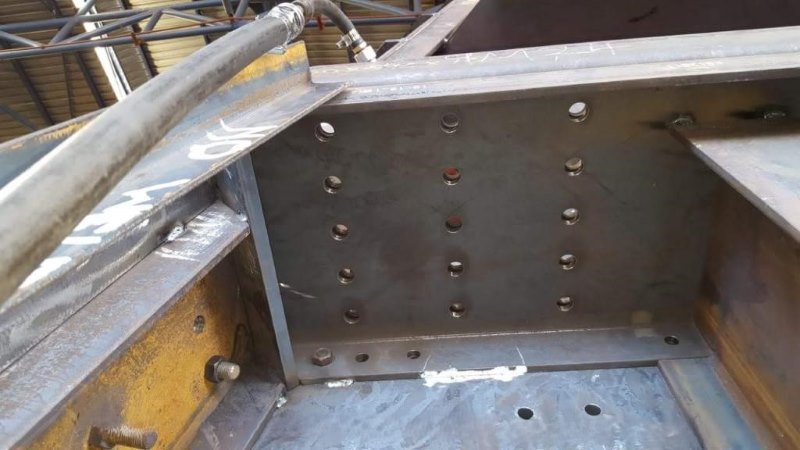

Mine Surge Bins Bolting connection

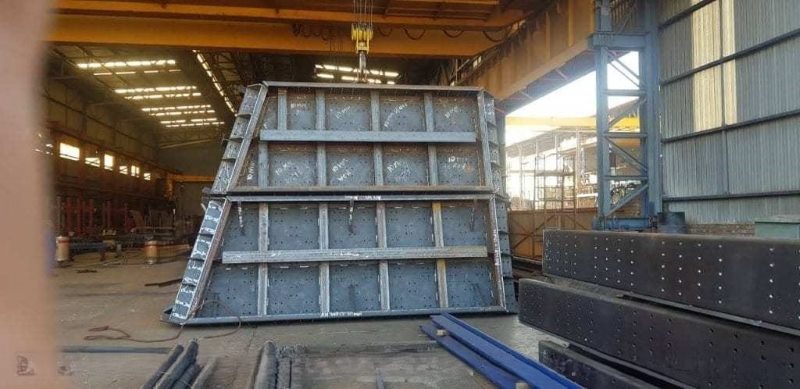

silos Surge Bins welding NDT inspection

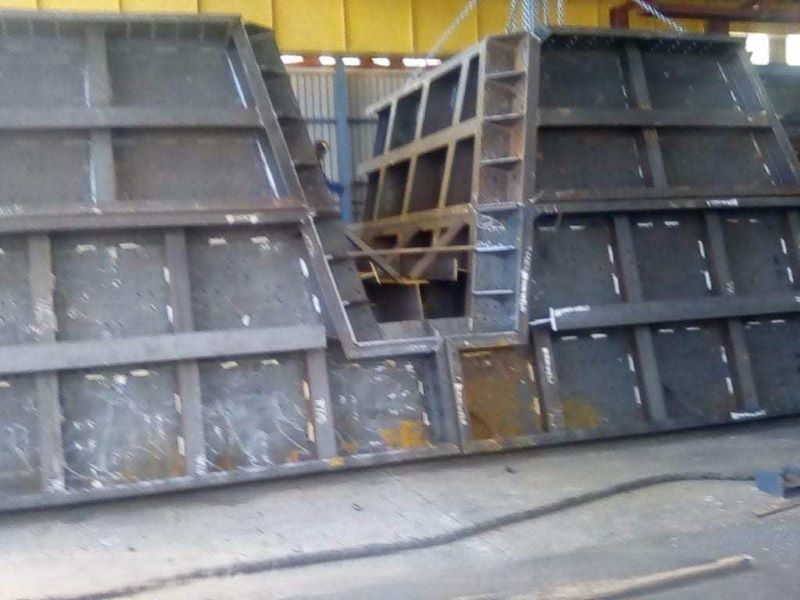

Surge Bins connection stiffener fin liner material
