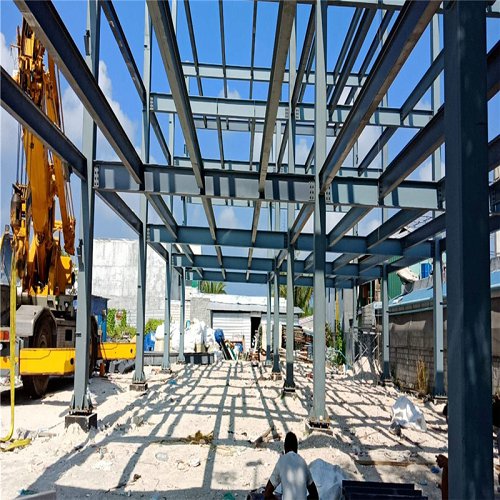

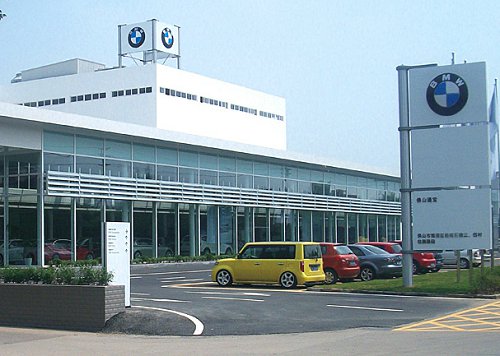

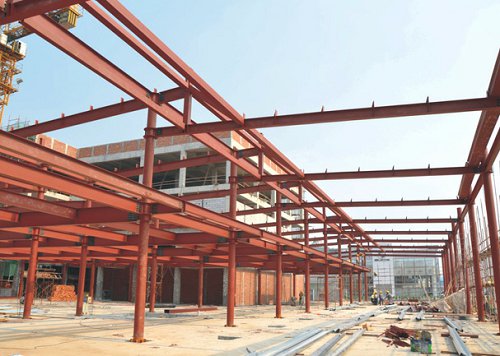

BMW (Tongbao) 4S Store& Maintenance Shop Steel Structure Building Prefabricated Automobile Sales&Service , 6747m2 double floor
2024/3/30 view:
BMW (Tongbao) 4S Store& Maintenance Shop Steel Structure Building Prefabricated Automobile Sales&Service , 6747m2 double floor
Location: Foshan,Guangdong
| Main Structure | Column | Q355 Round column & H-section column |
| Rafter & Beam | Q355 H- steel | |
| Surface processing options | 1. Epoxy zinc-rich primer + epoxy mica termediate paint (120μm thickness) or customized | |
| Secondarty Structure | Purlin | Q235B, C or Z section steel, galvanization 275g/m2 |
| Angle brace | Q235B, Angle steel | |
| Cross bracing | Q235B round bar, Angle steel | |
| Tie bar | Q235B, round pipe | |
| Batter brace | Q235B, round bar | |
| Floor | Secondary Beam | Q355B Steel |
| Floor Decker | Q235B steel sheet | |
| Roof System | Roof panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm | ||
| Gutter options | 1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm | |
| 2. Painted, Pre-finished steel gutter, thickness 0.4mm / 0.5mm / 0.6mm | ||
| Down spout | PVC pipe | |
| Steel flashing and cover | Steel sheet for roof ridge cap, gable wall end cover and corner cover | |
| Options | Roof skylight 1.8mm PVC sheet and stainless steel ventilator | |
| Wall System | Wall panel options | 1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm, thickness of steel sheet 0.4mm/0.5mm/0.6mm |
| 2. Steel plate, thickness 0.4mm/0.5mm | ||
| 3. Brick wall (provided by client) | ||
| Door | 1. Roller door for truck, size customized | |
| 2. Sliding door for truck, size customized | ||
| 3. Access door, steel door, glass door etc. | ||
| Window | PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized | |
| Steel flashing and cover | Steel sheet end cover and corner cover | |
| Accessories and fasteners | Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-tapping screws, rivet etc. |
