STANDARD STEEL JOISTS

Whether you are designing a single or multi-story structure, ZHM Huawu Steel manufactures a complete range of efficient, cost-effective steel joists that can add value, strength, and style to your structure. With a wide range of joist options that can be custom fabricated to specification, ZHM Huawu Steel has the right product to help architects and engineers bring their unique vision to life.

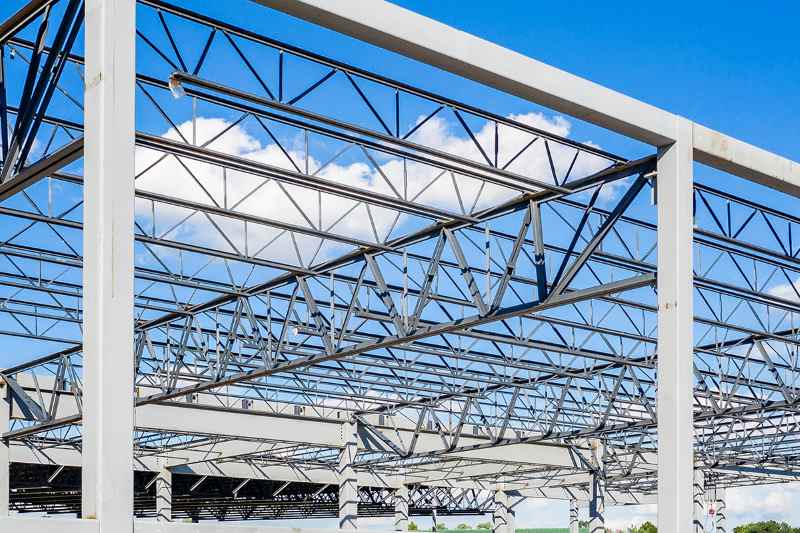

Standard Joist Open web Trusses Roof Rafter

Standard Joist Open web Trusses Roof Rafter

CONTENT INDEX:

1.UNDERSTANDING JOIST DESIGNATIONS
2.K-SERIES
3.KCS-SERIES
4.LH-SERIES
5.DLH-SERIES
6.JOIST GIRDERS

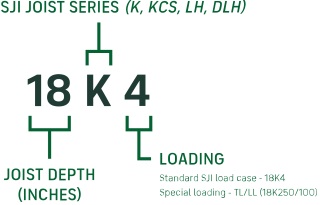

Standard Joist Designations Illustration SJI Sery Depth Loading

Understanding Joist Designations
The designation shown provides a guide on how to properly read and specify steel joists. Understanding this information is critical to ensure that the correct joists are provided to support the loads necessary for each and every project. Whether using specific loading or the standard SJI designation, this information should be clearly specified on the contact drawings. For more information about this, please review ZHM Huawu Steel’s joist catalog, available via Contact Us.

STANDARD JOIST PROFILES

K-SERIES

K-Series joists are light, highly efficient structural components. Their open-web configuration gives you space to conceal pipes, electrical, and plumbing, which can reduce height, adding value to your project.

For more information about this, please review ZHM Huawu Steel’s joist catalog, available via Contact Us.

K series Joist Illustration length range depth range

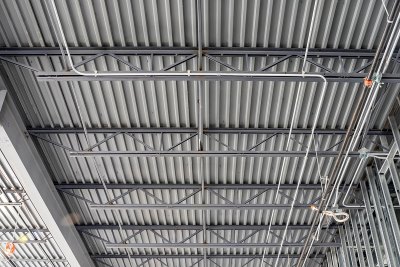

K series_joist open web steel trusses give through conceal pipes plumbing

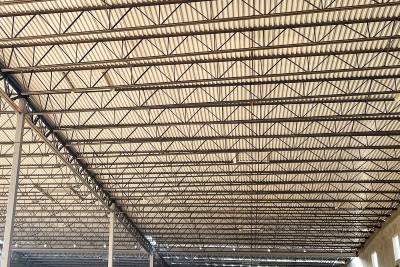

KCS series joist concentrated loads constant shear moment

KCS-Series joist

KCS-SERIES

KCS-Series Joists are an ideal solution to provide maximum flexbility when supporting not only roof loads, but concentrated loads such as rooftop units. They are designed for constant shear and constant moment.

For more information about this, please review ZHM Huawu Steel’s joist catalog, available via Contact Us.

KCS series Joist Illustration depth length range nominal dimentions

LH-SERIES

LH-Series joists are capable of supporting larger loads and are typically used where longer spans and special profiles (such as gable joists and arched joists) are needed in varying conditions.

For more information about this, please review ZHM Huawu Steel’s joist catalog, available via Contact Us.

LH series Joist Illustration Depth Length Range Nominal Dimensions

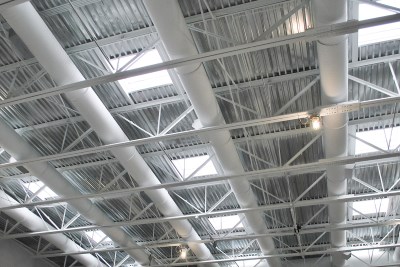

LH series joist large loads longer span gable joist arced joists

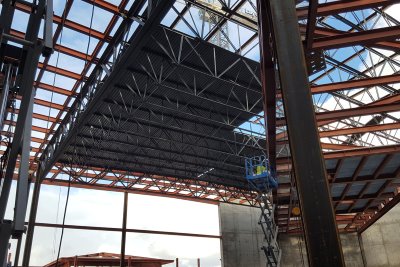

DLH series joist Deep Longspan Longer Span Larger Load Special Profiles

DLH-Series joist

DLH-SERIES

DLH-Series joists, also known as Deep Longspan joists, are used for longer span conditions that need to support larger loads. They vary in depths from 52” through 120” and spans up through 240’, and allow for special profiles to accommodate a variety of conditions.

For more information about this, please review ZHM Huawu Steel’s joist catalog, available via Contact Us.

DLH series Joist Illustration Seat Depth length range nominal dimensions

JOIST GIRDERS
Joist Girders function as a primary framing member, supporting equally-spaced concentrated loads from open web steel joists. Joist girders, along with steel joists in general, are highly-efficient structural members due to their truss-like configuration. For more information, Contact Us.

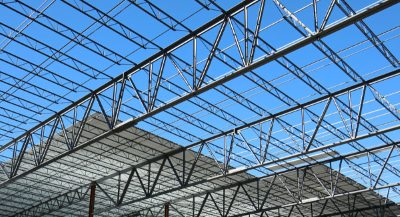

joist girder primary framing member truss like configuration
