Guyed Towers and Guyed Masts

Guyed Towers or Guyed masts are popular telecommunications structures that are used to support antennas, anemometers and other equipment when the allowable area is large and height is a requirement. These masts are typically tall, slender structures that can reach heights of more than 600 meters, making them ideal for applications such as radio and television broadcasting, cellular network infrastructure, wind velocity anemometer and military communications.

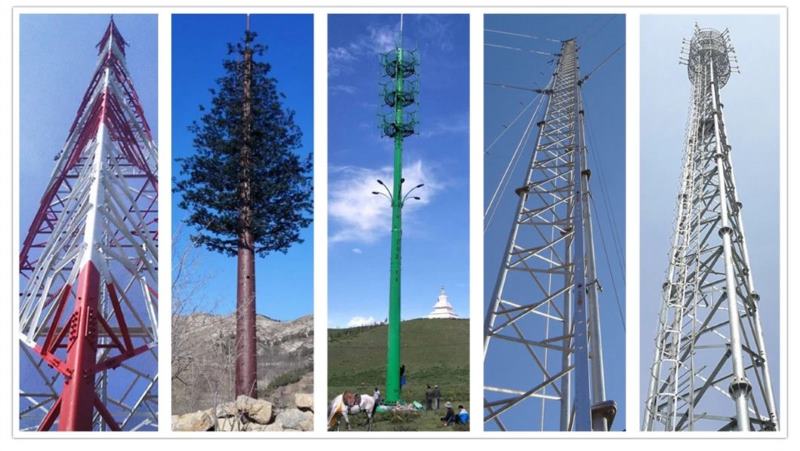

Guyed Towers and Guyed Masts: Hot-dipped Galvanized 3-Leg Guy Wire GSM Communication Antenna Mast Stee Tower

Unlike self-supporting towers, which rely on their own structural integrity to remain stable, guyed masts rely on guy wires, which are tensioned cables anchored to the ground, to provide stability and support. This design allows for taller masts to be constructed using less material, making guyed masts a cost-effective solution for reaching very high elevations.

However, the design, fabrication and construction of guyed masts can be complex due to the need for careful consideration of the loads, tensions, and foundations involved. The loads on a guyed mast include wind loads, which are a major factor in the design process. The tension in the guy wires is also critical, as it helps to balance the loads on the mast and ensure its stability.

To design a guyed mast, engineers must carefully analyze the loads and forces involved, as well as the characteristics of the soil and foundation. Advanced design software can be used to create a 3D model of the mast and simulate its behavior under various loading conditions. This allows engineers to optimize the design for maximum safety, efficiency, and cost-effectiveness.

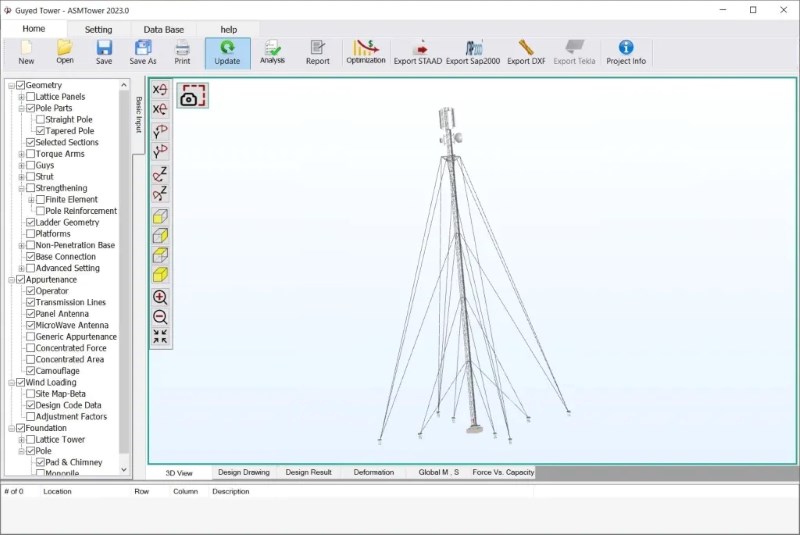

Guyed Towers and Guyed Masts:Guyed Mast with torque arm

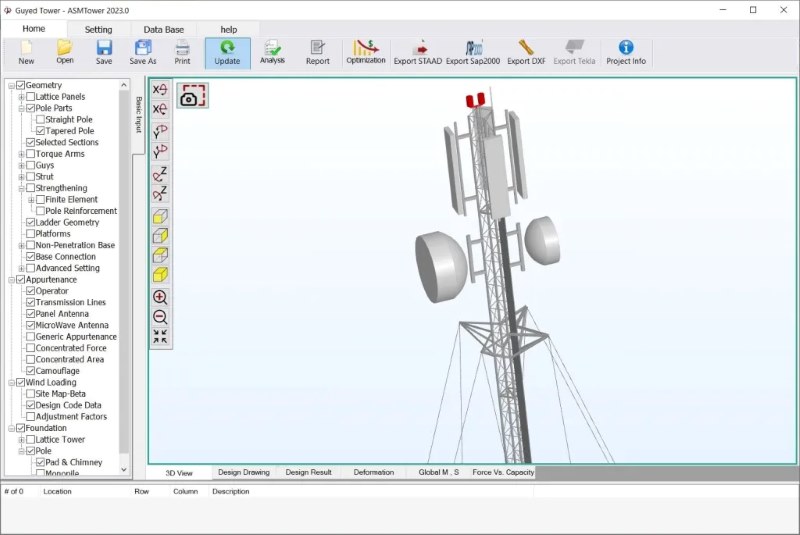

Guyed Mast with torque arm

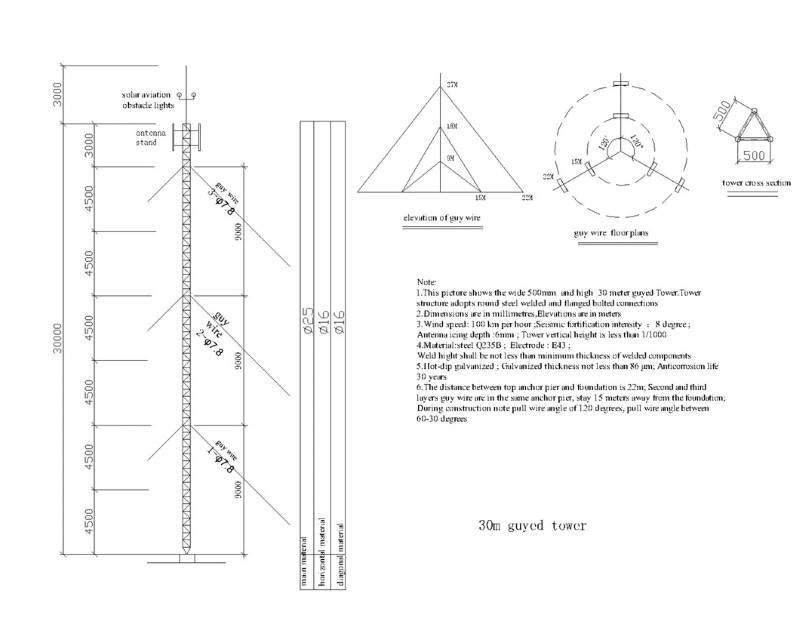

Guyed Towers and Guyed Masts:Detail Drawings

Guyed Tower Design Standards & Codes

ZHM Huawu Steel's Tower design center supports the design of guyed towers according to various industry standards, including :

1. The American standard, with the latest addendums:

ANSI/TIA-222-G
ANSI/TIA-222-H
ANSI/TIA-222-I

2. The European standard EN1993-3-1 with the following national annexes:

	General EN	EN 1991-1-4:2005 EN 1993-3-1:2006 CEN Annex

	Cyprus	NA to CYS EN 1991.1.4:2005 NA to CYS EN 1993.3.1:2006(AC:2009)

	Denmark	EN 1991.1.4 DK NA:2007 DS/EN 1993.3.1 DK NA :2013

	France	NF EN 1991.1.4/NA/A1 Juillet 2011 NF EN 1993-3-1/NA2008-07

	Germany	DIN EN 1991.1.4/NA:2008-9 DIN EN 1993.3.1:2010-12

	Ireland	IS EN 1991-1-4:2005/NA:2013 NA:2010+A1:2020 to I.S. EN 1993-3-1:2006&AC:2009

	Netherlands	NEN-EN 1991-1-4+A1+C2:2011/NB:2019+C1:2020 NEN-EN 1993-3-1:2007/NB:2012

	Poland	PN-EN 1991.1.4 listopad 2008 PN-EN 1993.3.1 Listopad 2008

	Romania	SR EN 1991.1.4:2006/NB:2007 GEN EN 1993.3.1 :2006

	Singapore	NA to SS EN 1991.1.4:2009 GEN EN 1993.3.1 :2006

	Sri Lanka	NA to SLS EN 1991.1.4:2019 GEN EN 1993.3.1 :2006

	United Kingdom	BS EN 1991.1.4:2005+A1:2010 NA to BS EN 1993-3-1 :2006

Guyed Tower Torque Arm

In order to reduce the twisting of guyed masts, a torque arm is often provided by ZHM Huawu Steel in the design as an additional support. A torque arm is a structural element that is attached to the mast and extends outwards to provide additional resistance to twisting forces. ZHM Huawu Steel provides a range of torque arm options to choose from, including:

• Top and bottom chord inclined
• Bottom chord flat
• Upper chord flat

• Cantilever types

Customers can also define separate sections for the upper and bottom chords to customize the design of the torque arm based on the specific requirements of the project.

ZHM Huawu Steel is capable of designing and fabricating the torque arm and its connection to the mast, taking into consideration the bending moment and other load factors. Customers have the choice to use the torque arm on all faces of the tower or specific faces, depending on the design requirements.

The design and fabrication of the torque arm is critical to the overall stability of the guyed mast, as it helps to prevent twisting and ensures that the mast can withstand the loads and forces involved. With the work prepared by ZHM Huawu Steel, engineers can optimize the design of the torque arm and its connection to the mast for maximum safety and efficiency as the use of a torque arm is an important consideration in the design of guyed masts, and ZHM Huawu Steel provides the necessary tools to design and optimize this critical structural element.

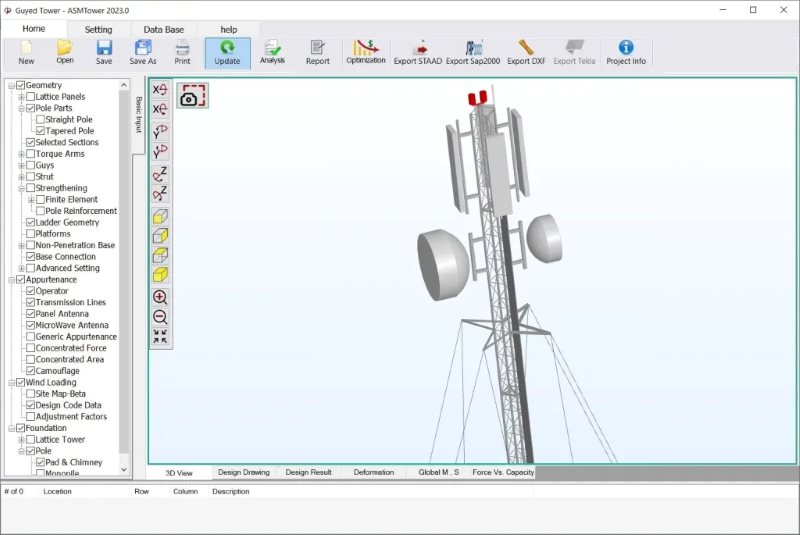

Guyed Mast with flat torque arm

Guyed Mast with Upper chord inclined torque arm

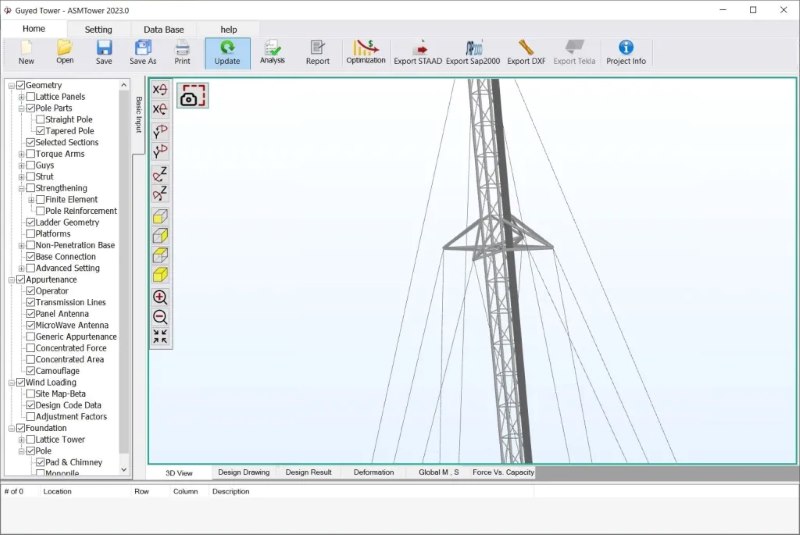

Upper chord inclined torque arm

Guyed Tower Analysis and design

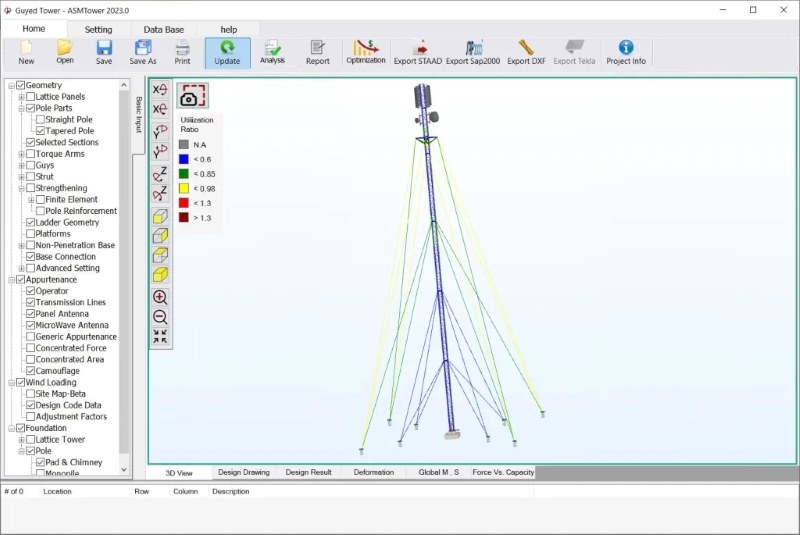

One of the key features that sets ZHM Huawu Steel apart from our steel tower fabricators is its ability to model the guyed mast as a BIM 3D truss, rather than just a virtual beam. This approach to modeling is the most accurate method for designing guyed masts, as it allows engineers to account for the complex forces and loads involved in the structure.

By using this ZHM Huawu modeling approach, engineers can optimize the design of the guyed mast for maximum safety and efficiency, while minimizing the material and construction costs.

Guy Wire Anchor

One of the key features of ZHM Huawu Steel is its ability to design, fabricate and install the guy wire base connections and tower base connection which varies from each other.

There are various types of anchor bolts that ZHM Huawu Steel designs and fabricates , such as headed anchors, L-hooks, J-hooks, and deformed anchors.

Guyed Masts and Guyed Towers: Foundations

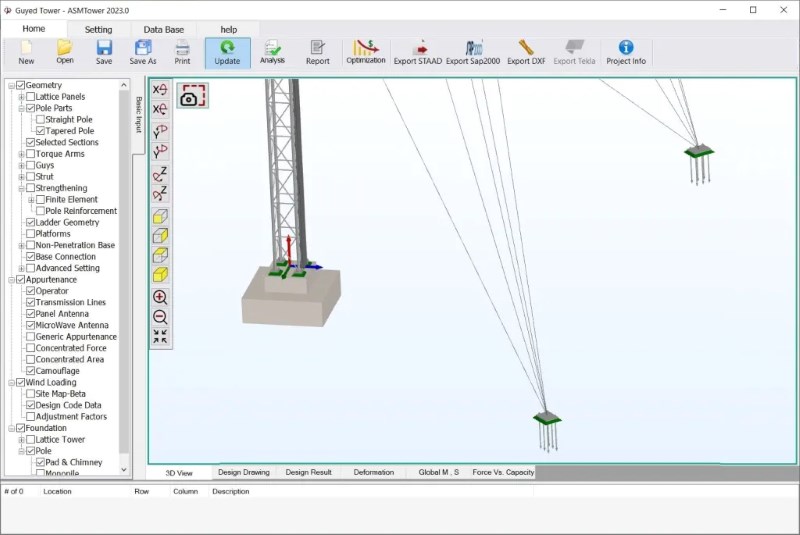

Guyed tower foundation

Guyed Masts and Guyed Towers: Base and Wire Anchor

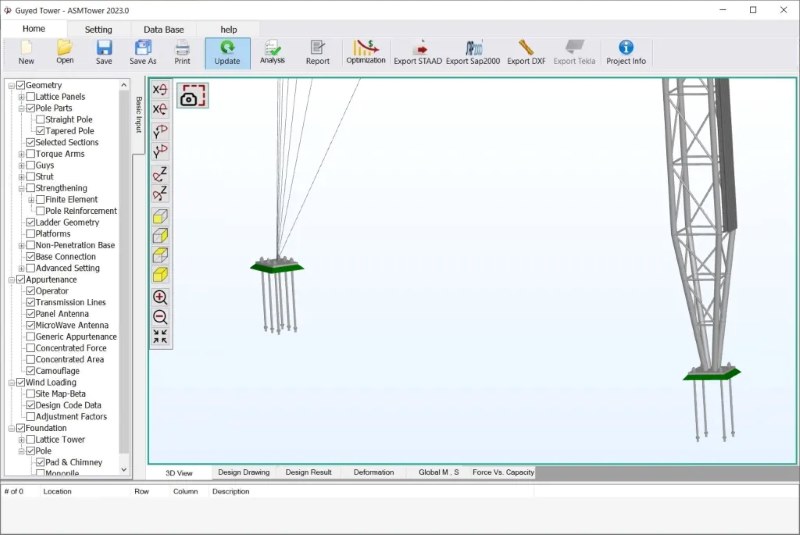

Guyed Masts and Guyed Towers: Guy tower base and wires anchor

Guyed Tower Connection

ZHM Huawu Steel can makde the design and fabrication of main leg splice, diagonal members, and horizontal members’ connections, taking into account single and double shear with bearing checks for the main leg, bracing, and gusset plate.

Additionally, ZHM Huawu Steel can model and analyze main leg flanged connections for pipe sections. In this type of connection.

Guyed Masts and Guyed Towers

Guyed Tower/Guyed Mast Production

Additionally, ZHM Huawu Steel can model and analyze main leg flanged connections for pipe sections. In this type of connection.

Guyed Masts and Guyed Towers: Productions

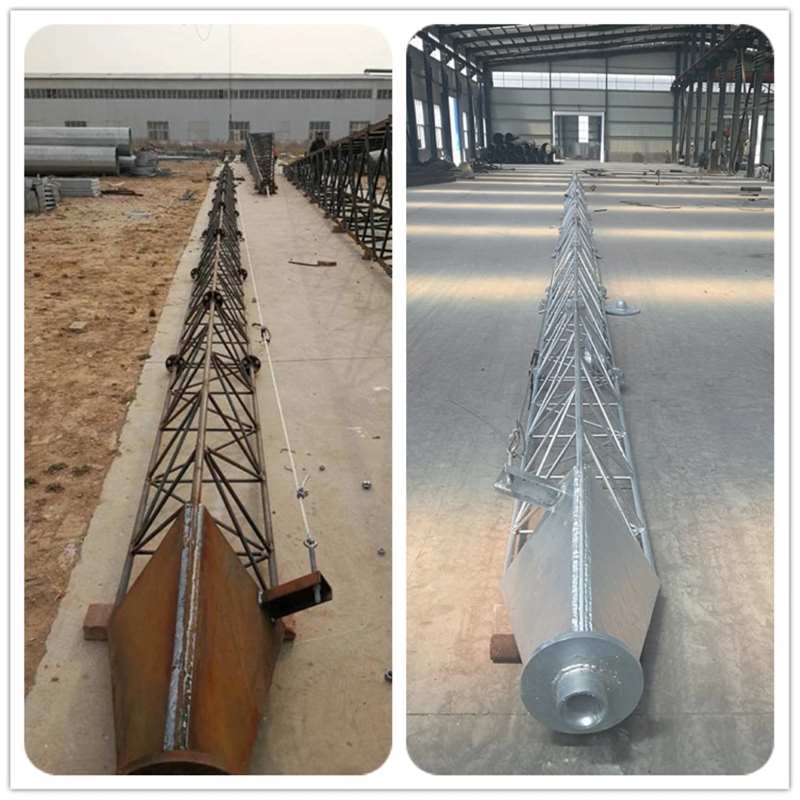

Guyed Masts and Guyed Towers: Pre-assembly in Workshop

Guyed Tower/Guyed Mast Packing, Delivery and Loading into Containers for Shipment

Guyed Masts and Guyed Towers: Packing and Marking

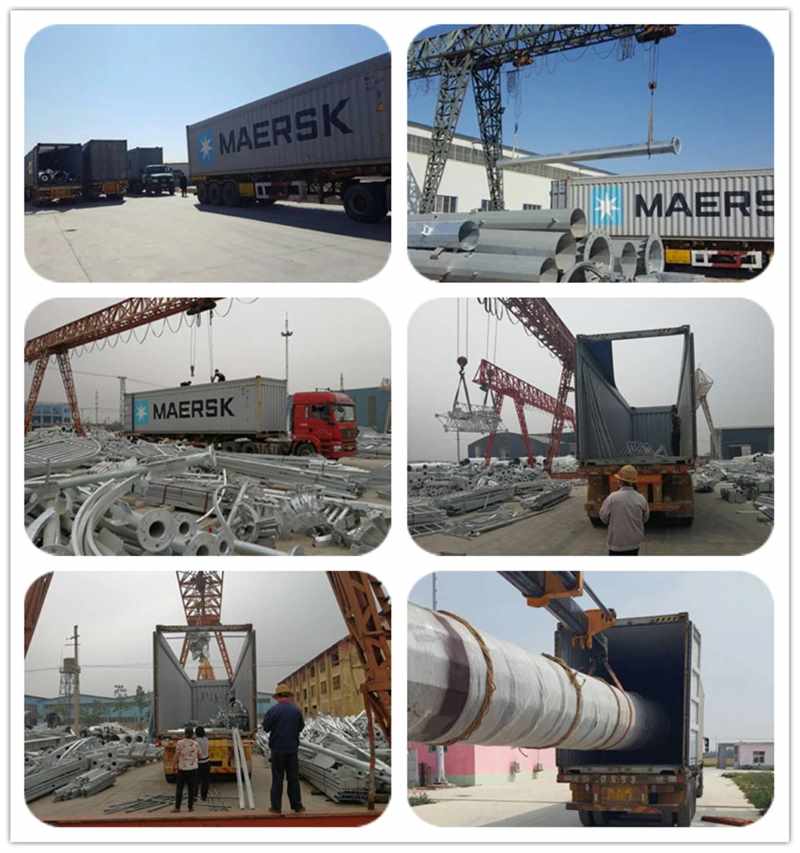

Guyed Masts and Guyed Towers: Container Loading and Delivery

Additionally, ZHM Huawu Steel can model and analyze main leg flanged connections for pipe sections. In this type of connection.

Guyed Tower/Guyed Mast Site Installation

Guyed Masts and Guyed Towers: Site Installation

Additionally, ZHM Huawu Steel can model and analyze main leg flanged connections for pipe sections. In this type of connection.
