Overview

ZHM Huawu Steel’s Floating Bridges are used in a wide variety of challenging applications. They consist of a number of spans with intermediate supports which are composed of floating units (pontoons) designed to carry the loads imposed by the bridge. Our Floating Bridges are formed of two landing or approach spans (one at each abutment), and any number of floating or intermediate spans as required to complete the wet gap.

The superstructure of the ZHM Huawu Steel Floating Bridge is formed with the same components as fixed span bridges, with the addition of specific End of Bridge components as well as span junction components which connect the floating spans and allow rotation to accommodate variations in water level and relative displacement of the supports as individual spans are loaded.

The pontoons are connected together and placed at right angles to the line of the bridge in positions where piers are required. The span of our floating bridges can be pre-assembled at any convenient site adjacent to the line of the bridge before being floated into position and interconnected. It is also possible to launch the bridge from each abutment onto pontoons which are then floated out along the length of the bridge whilst the remainder of the structure is launched behind.

ZHM Huawu Steel’s engineers can design a solution to suit your particular requirements, taking account of site-specific topography, low temperatures, high wind loads, and tidal and river flow rates.

Please speak to one of our bridging Experts for more information regarding our Floating Bridges.

Benefits of ZHM Floating Bridges:

• Modular
• Rapid-build
• Can be assembled by hand or using light plant
• Can be crane built or cantilever launched
• Relocatable
• Transported in standard containers
• Robust
• Long life with minimal maintenance
• Can be adapted to suit river traffic requirements

Standard Specification

Module length	Carriageway widths	Number of lanes	Internal pedestrian walkways	Cantilever pedestrian walkways	Finish
3.048m	3.15m to 7.35m	1 or 2	0.5m or 1.0m	Up to 1.5m	Hot-dip Galvanised: BS EN ISO 14713 & 1461 ASTM A123

Product name:	Bailey Pontoon Bridge (BSB)
Nickname: (A.K.A.)	Prefabricated floating bridge; prefabricated highway steel bridge, steel temporary bridge, steel trestle bridge; temporary access road; temporary bridge; Bailey bridge;
Model:	321 type; 200 type; GW D type;
Commonly used truss piece model:	321 type Bailey panel, 200 type Bailey panel; GW D type Bailey panel, etc.
The largest single span of steel bridge design:	Around 60 meters
Standard lane width of steel bridge:	Single lane 4 meters; double lane 7.35 meters; design according to requirements.
Load class:	Class 10 for automobiles; Class 15 for automobiles; Class 20 for automobiles; Class 50 for crawlers; Class 80 for trailers; 40 tons for bicycles; AASHTO HS20, HS25-44, HL93, BS5400 HA + HB; City-A; City-B; Highway-I; Highway-II; Indian standard Class-40; Australian standard T44; Korean standard D24, etc.
Design:	According to the difference of span and load, choose the appropriate platoon and pontoon scheme.
Main material of steel bridge:	GB Q345B
Connection pin material:	30CrMnTi
Connecting bolt grade:	8.8 grade high-strength bolts; 10.9 grade high-strength bolts.
Surface corrosion:	Hot-dip galvanizing; paint; heavy-duty anticorrosive paint for steel structure; asphalt paint; anti-skid aggregate treatment of bridge deck, etc.
Bridge erection method:	Hoisting method; floating method, etc.
Installation takes time:	30-60 sunny days after abutment and other conditions are met (determined according to bridge length and site conditions)
Installation requires workers:	15-20 people (determined according to site conditions)
Equipment required for installation:	Cranes, hoists, jacks, chain hoists, welders, generators, etc. (Can be adjusted according to site conditions)
Steel bridge features:	No need to make bridge piers, interchangeable, detachable, long life
Pass the certification:	ISO, CCIC, BV, SGS, CNAS, etc.
Executive standard:	JT-T/728-2008
manufacturer/Brand:	ZHM Zhejiang Huawu Steel Structure Engineering Co.,Ltd.
Annual output:	12000 metric tons

Applications

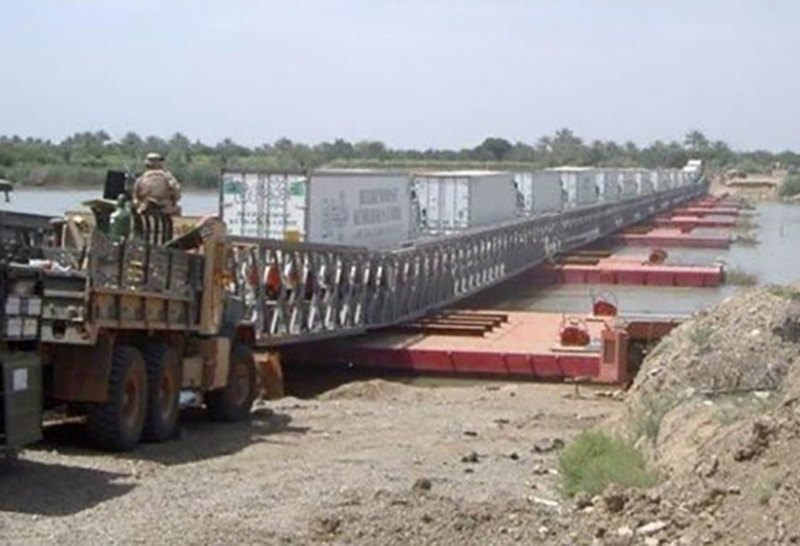

Bailey Pontoon Bridge (BSB) are generally widely used for pedestrians, highways, railways, and floating bridges on water. It can also be used for emergency relief or as a temporary transportation facility. It can be used to ensure that the army can quickly pass the river and river military standard pontoon bridge during wartime.



Typical Drawings



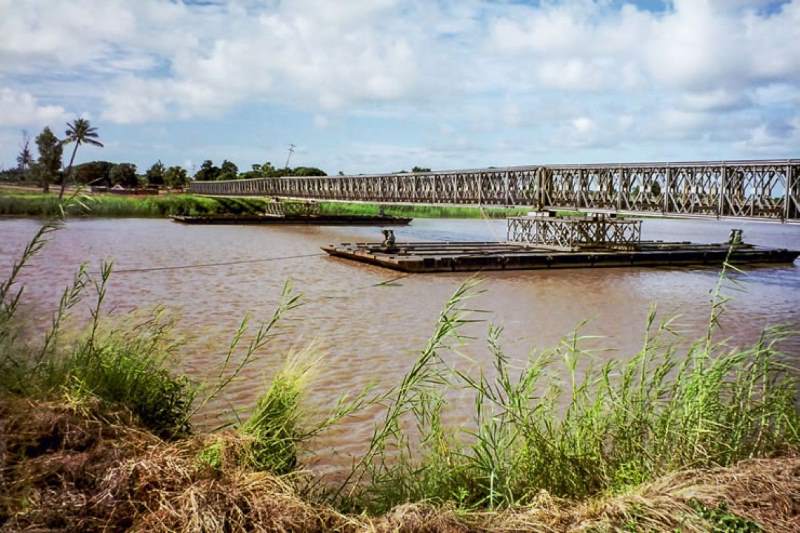

Project Showcases:

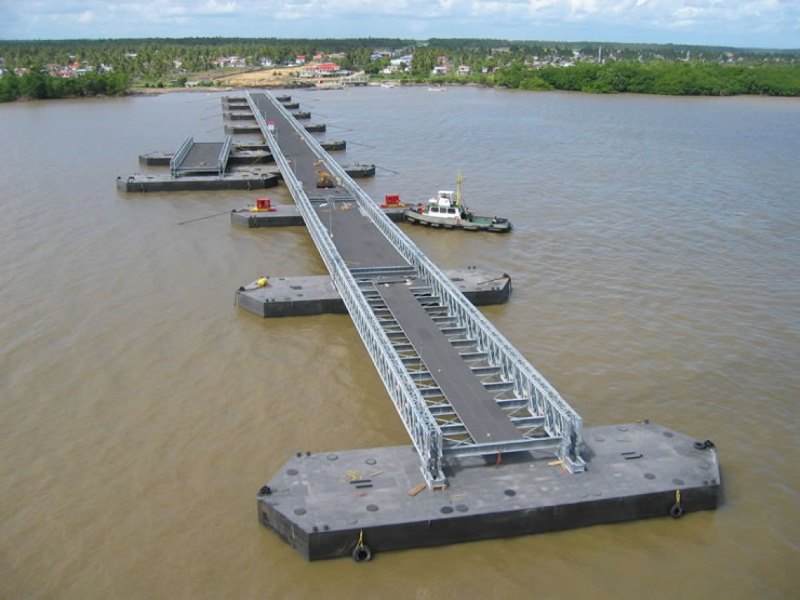

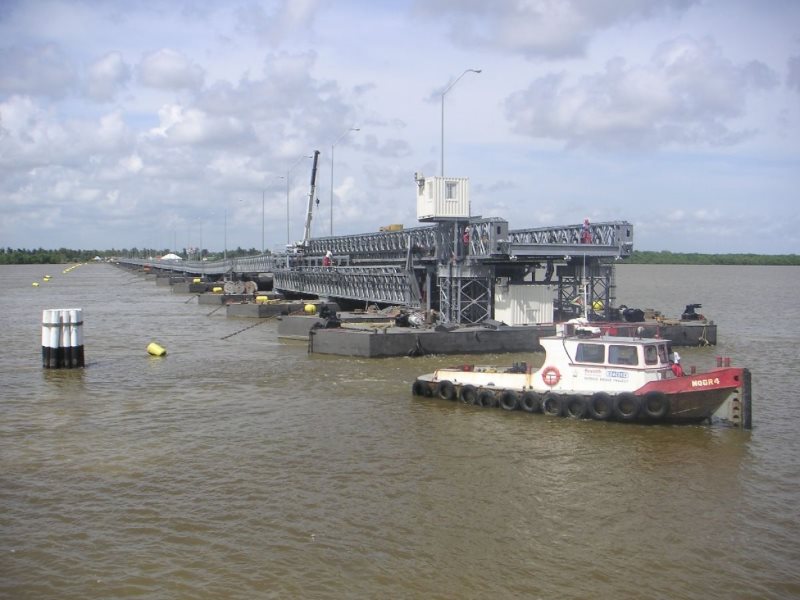

Berbice River Bailey Pontoon Bridge Structural Steelworks, Guyana



Why ZHM Huawu Metal Modular Floating Bridges Steel with Pontoons | Universal Emergency Bailey Trusses?

Reliable and Customized Designs	Cutting Edge Designing Process	Free Online Price System	Easy Bolt-by-number Assembly
Over Two Decades of Experience	Value For Money	Unmatched in Quality and Craftmanship	Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's Metal Modular Floating Bridges Steel with Pontoons | Universal Emergency Bailey Trusses ? Visit our Photo Gallery.
