Introduction

STEEL ROOF DECK


ZHM Huawu Steel is your partner from the start, offering a wide range of roof deck profiles, each tailored to meet the demands of even the most complicated projects. Our roof deck profiles come in multiple finish options, and we also offer a range of options for support and side-lap connections. Our epecialized design tools are available and provide loading capacity information for all roof deck profiles.

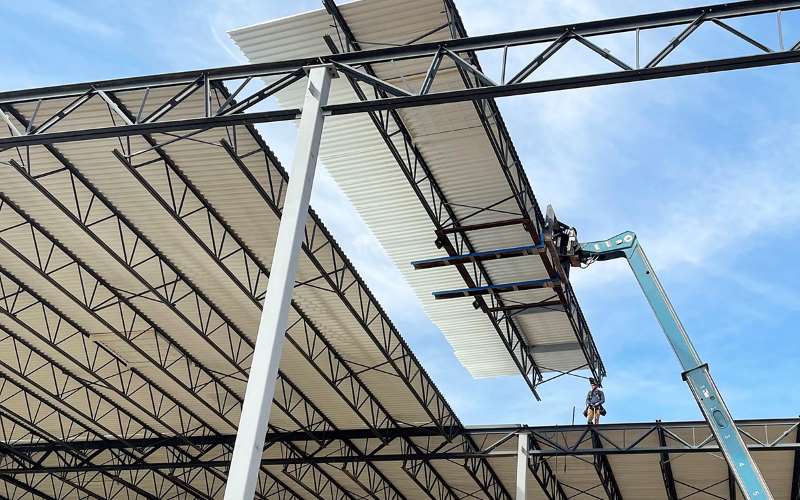

Roof deck profiles Under Erection For Support Side Lap Connection


CONTENT INDEX:
1.Understanding Deck Designations
2.B Deck Profiles
3.N Deck Profiles
4.Dovetail Deck Profiles
5.Cellular roof deck
6.Additional Resources
7.examples of ZHM Huawu steel roof deck

Understanding Deck Designations

Steel roof designation graphic


Whether it is a roof deck or a floor deck, the labeling of the deck is done in similar ways. Below is an example of what the parts of a designation mean.

Designations Vocabulary
B - Standard “B” deck with nested side-lap
BI - B-deck with Interlocking side-lap
BA - B-deck with Acoustical option
PLB - B-Deck with PunchLok II side-lap connection

1.5F (intermediate rib) and 1.5A (narrow rib) deck are still available from ZHM Huawu Steel. For more information about these deck types, reach out to one of our experts.

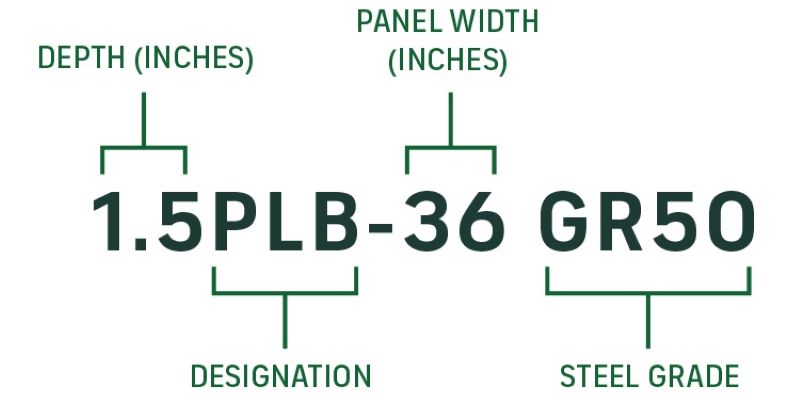

roof deck floor deck designation graphic illustration

STEEL ROOF DECK PROFILES
B DECK PROFILES
B-deck profiles are the most commonly used roof deck profiles in today’s commercial construction industry. As shown in the graphic below, this deck is 1.5” deep and is provided in 36” panels, which can be cut to length depending on the needs of the project.

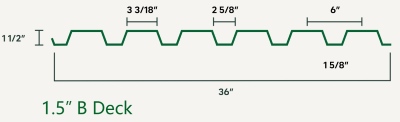

B Deck profile
1.5” B Deck
For technical information, including loading capacity information, please refer to our Technical Information. While this information is for common situations, not every project is common. For answers to any questions, please reach out and TALK TO AN EXPERT.

B Deck Profile Roof Deck Illustration

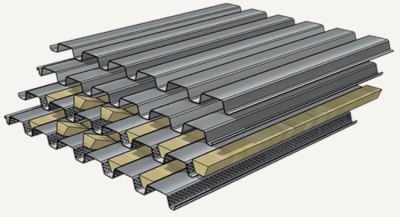

roof deck B Deck Profile 3D Common Commercial Construction

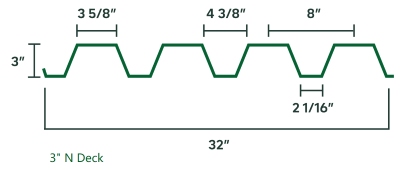

N DECK PROFILES
N-deck profiles have 3-inch deep ribs with narrow low flutes and wide high flutes that create a uniform look from the bottom side. N-deck is ideal for spans greater than 10 feet, and is available in 32" wide panels, resulting in greater coverage and fewer necessary sheets to be laid.

N Deck profile
3" N Deck
For technical information, including loading capacity information, please refer to our Technical Information. While this information is for common situations, not every project is common. For answers to any questions, please reach out and TALK TO AN EXPERT.

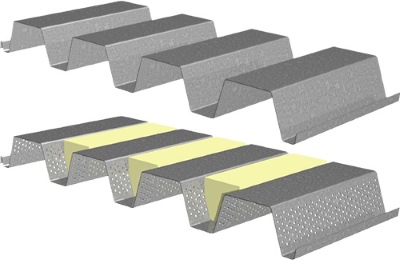

3N 3 Inch deck roof sheet Deep Ribs High Flutes Coverage
N Deck Profile Roof Deck sheet Illustration

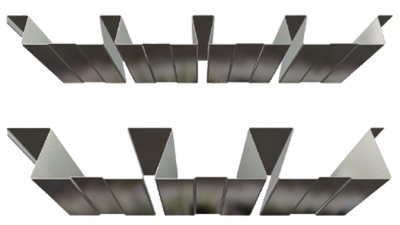

DOVETAIL DECK PROFILES
Dovetail deck profiles are a highly cost effective deck profile, providing excellent strength, even at longer spans. Available in 2” and 3.5” profiles, with or without acoustical properties, they also create a highly aesthetic underside for exposed ceilings, and create efficient hanging solution opportunities.

2.0-inch Dovetail Deck profile
2" Dovetail Deck
3.5-inch Dovetail Deck profile
3.5" Dovetail Deck
For technical information, including loading capacity information, please refer to our Technical Information. While this information is for common situations, not every project is common. For answers to any questions, please reach out and TALK TO AN EXPERT.


Dovetail deck
Hanging Options
Sammy Hangers
Sammy Hangers
ZHM Huawu Steel has multiple hanging solutions to brace your mechanical systems that are easy to use and install. View our Technical Datasheets for more information.

dovetail deck Dove Tail Cost Effective Aesthetic

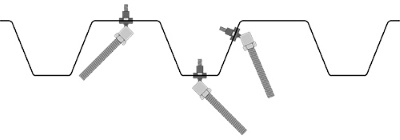

sammy hanger Hanging Options Solutions Under Deck Illustration




Cellular roof deck


In exposed ceiling areas that require a flat bottom design, ZHM Huawu Steel’s Cellular Decking can give your project the look you need without compromising load capabilities. This versatile product comes in a 1.5” deep profile with 36” width, and a 3” deep profile with 24” or 32” widths. Acting as both a ceiling and a roof, this deck type can add value to the project with its aesthetically pleasing appearance and can help mitigate noise with the available acoustical option. Please refer to our data sheets/design tools for specific information.

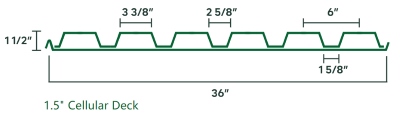

1.5 Cellular deck profile
1.5" Cellular Deck

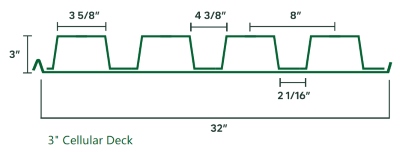

3.0 Cellular deck profile
3" Cellular Deck
For technical information, including loading capacity information, please refer to our Technical Information. While this information is for common situations, not every project is common. For answers to any questions, please reach out and TALK TO AN EXPERT.

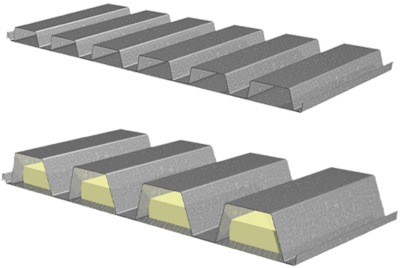

Cellular Roof Deck Flat Bottom Design aesthetically pleasing appearance mitigate noise Acoustical
15 Cellular Deck Profile Roo Deck Illustration
30 Cellular Deck Profile Roof Deck Illustration


ADDITIONAL RESOURCES


SIDE-LAP CONNECTIONS

Please see data sheets for available side-laps for each profile.

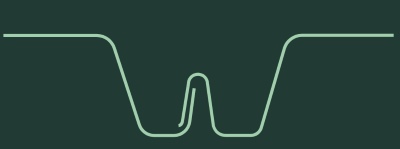

Inter locking Side lap Illustration
Interlocking Side lap Screw Illustration
Interlocking Side-lap
Interlocking Side-lap connections have a male side underneath that is high enough to reach the top of the female side above, and are attached with either a top seam weld or PunchLok II.

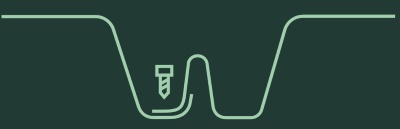

Interlocking Side-laps for Screw Connections
Interlocking Side-laps for Screw Connections attach using a screw installed at the low point where the male and female sides meet, with the bottom piece overlapping underneath.

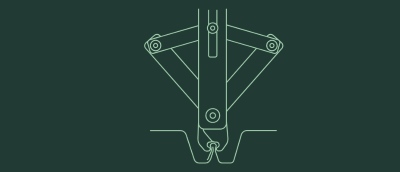

Punchlok Side lap Illustration
Nested Side lap Illustration
Interlocking Side-lap for Punchlok II
ZHM Huawu Steel’s exclusive PunchLok II System makes use of a specially designed pneumatic tool that requires no welding, installs up to 10 times faster than top seam welds, requires no touchup from top or bottom of the deck, and can be visually inspected without special tools or gauges.

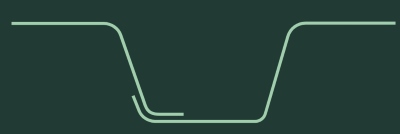

Nested Side-lap
Nested Connections have overlapping pieces that nest into each other, allowing the deck to shift left and right for the perfect fit before final screw or weld connections are made.




BUILDING THE WORLD


View examples of ZHM Huawu steel roof deck in real-world applications.

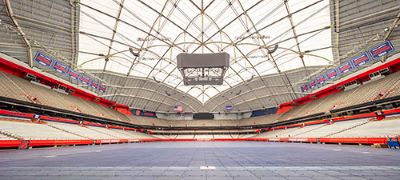

Syracuse University Carrier Roof Dome Crown Truss Joists Structure thumb

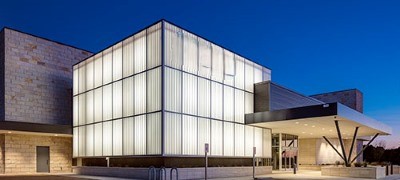

RangeAustin K Series Joists Roof Deck Composite Floor Deck thumb
bobevans cellular composite floor deck Joist Roof thumb

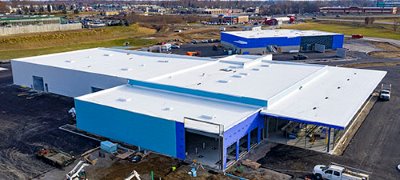

Kelley Automotive Dealership Roof Joists Roof Deck thumb

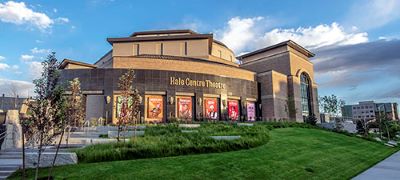

Hale Center Theatre StageDHL Series thumb
Farmington High school LH Joists K Joists  thumb

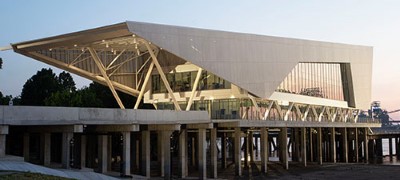

Water Institute Roof Deck Floor Deck thumb

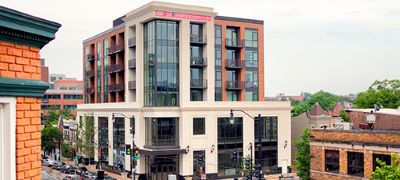

501HStreet Six Story Mid Rise Apartment Building Composite Floor Joist System thumb


Why ZHM Huawu STEEL ROOF DECK ?


Reliable_and_customized_DesignsG
Cutting_edge_designing_process
Free_online_Pricing_System
Easy_Bolt-by-number_Assembly
Reliable and Customized Designs Cutting Edge Designing Process Free Online Price System Easy Bolt-by-number Assembly
Over_two_decades_of_Experiencey
Value_Engineering_for_Money
Unmatched_In_Quality
Excellent_Customer_Service
Over Two Decades of Experience Value For Money Unmatched in Quality and Craftmanship Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's STEEL ROOF DECK  ? Visit our Photo Gallery.
