Introduction

Modular Railway Bridges Steel Structures | Universal Emergency Bailey Trusses


ZHM Huawu Steel are an original and main Chinese manufacturer of the Univsersal Emergency Modular Type Railway Bailey Bridges found all over the world. We retain knowledge and expertise in their design and manufacture and have drawn on this to develop a range of standard pre-engineered bridging solutions. These fully modular bridges can be easily assembled in a wide range of configurations, delivering outstanding versatility.

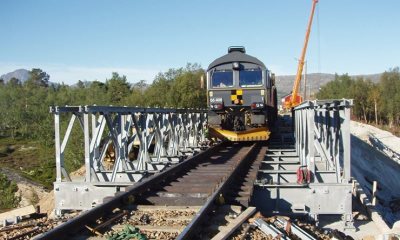

Bailey Truss Type Universal Emergency Norway ZHM


Content of Index:


1. Overview

1.1.A leading international provider of high-quality modular steel bridging

1.2.An original and main manufacturer of the Bailey Bridges in China

1.3.A unique heritage of pre engineering and bridge-building expertise

1.4.A trusted, preferred supplier to over 50 countries worldwide

2.Benefits of ZHM Huawu Steel Bridges

2.1.Why ZHM Huawu Steel?

3.Detailed Product Description

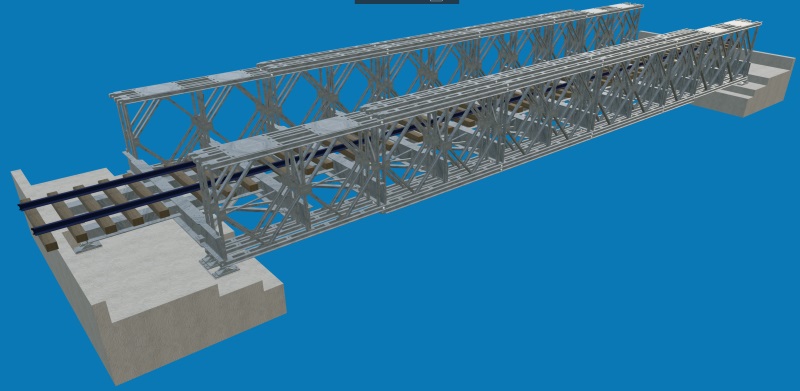

3D Model BIM For Single Lane Express Train Railway Steel Bridges


3D Model BIM Train Railway Steel Bridges Bottom Structures Layout


Overview

A leading international provider of high-quality modular steel bridging

ZHM Huawu Steel specialises in rapid-build, pre-engineered, modular bridges to develop, improve and repair essential infrastructure in urban and rural areas. We also deliver permanent and temporary bridging for military, transport, oil and gas, and mining applications, as well as for humanitarian emergencies and disaster relief. We have installed more than 500 km of steel bridging all over the world and we are proud of our reputation as a world-class manufacturer of high-quality steelwork.

An original and main manufacturer of the Bailey Bridges in China


ZHM Huawu Steel are an original and main Chinsemanufacturer of the Bailey Bridges found all over the world. We retain knowledge and expertise in their design and manufacture and have drawn on this to develop a range of standard pre-engineered bridging solutions. These fully modular bridges can be easily assembled in a wide range of configurations, delivering outstanding versatility.

A unique heritage of pre engineering and bridge-building expertise


ZHM Huawu Steel has developed unparalleled expertise in modular steel bridge design, test and manufacture. We are proud of our state-of-the-art manufacturing capability, and vast international experience in project management, bridge construction, installation and training. Our award-winning engineering performance is underpinned by a commitment to Health and Safety, Quality, Ethics and the Environment, and driven by the desire to deliver a positive impact on the customers and communities we serve.

A trusted, preferred supplier to over 50 countries worldwide


ZHM Huawu Steel is proud to have supplied steel modular bridging solutions to National Governments, NGOs, global energy and mining corporations and major construction companies all over the world. We have an established network of trusted representatives, and we work alongside designers, contractors, local installation partners and government departments to ensure that the solutions we provide meet specific industry standards and fulfil local requirements to best effect.

Please contact us regarding our steel modular bridge construction capabilities, for both permanent and temporary requirements, and our bridge installation service and we will be happy to help.

Benefits of ZHM Huawu Steel Bridges


  • Modular, pre-engineered steel bridge solutions with standard interchangeable components
  • Solutions available for both permanent and temporary bridge applications
  • Clear spans up to 100m (with no intermediate supports)
  • Multi-span configurations available
  • Single, 2 and 3 lane carriageway formats
  • Full highway load-carrying capability
  • Fully galvanised to prevent corrosion and minimise maintenance
  • Transportable in standard containers
  • Rapid-build
  • Relocatable
  • Full training and site support services



Comprehensive modular bridging range based on 5 key bridging systems:


ZHM Huawu Steel Bridge Compact 200
ZHM Huawu Steel Bridge  Delta
ZHM Huawu Steel Bridge Atlas
ZHM Huawu Steel Bridge Logistic Support Bridge


Why ZHM Huawu Steel?


Our comprehensive steel modular bridges product range, vast engineering skills, high-tech manufacture and full-scale testing capability, combined with our experience in rapid bridge installation and project finance makes us unique, and earns us the worldwide reputation of being a reliable permanent and temporary bridging supplier and engineering partner.


Full Modular Train Railway Bridge Building Single Clear Span 2 lanes


Permanent Transporting steel Bridge Installation Congo

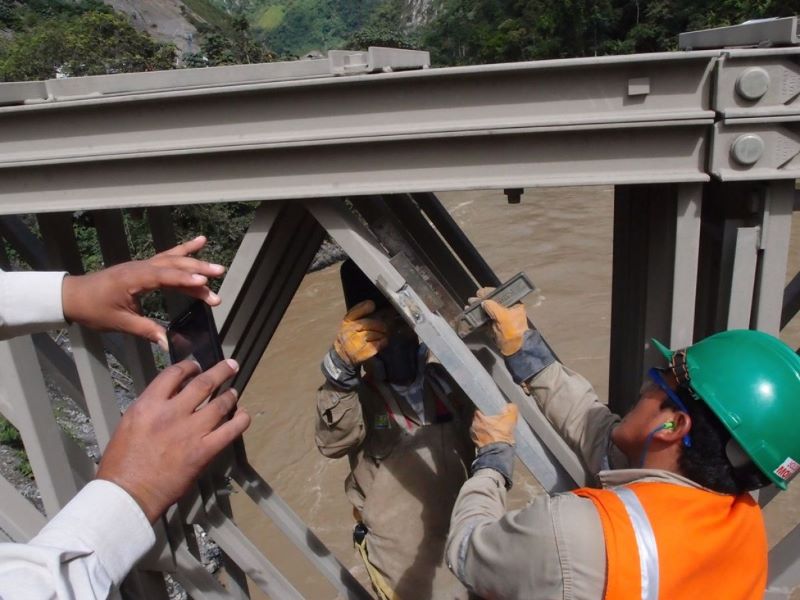

Bailey Truss Diagonal Steelworks Inspection after Erection

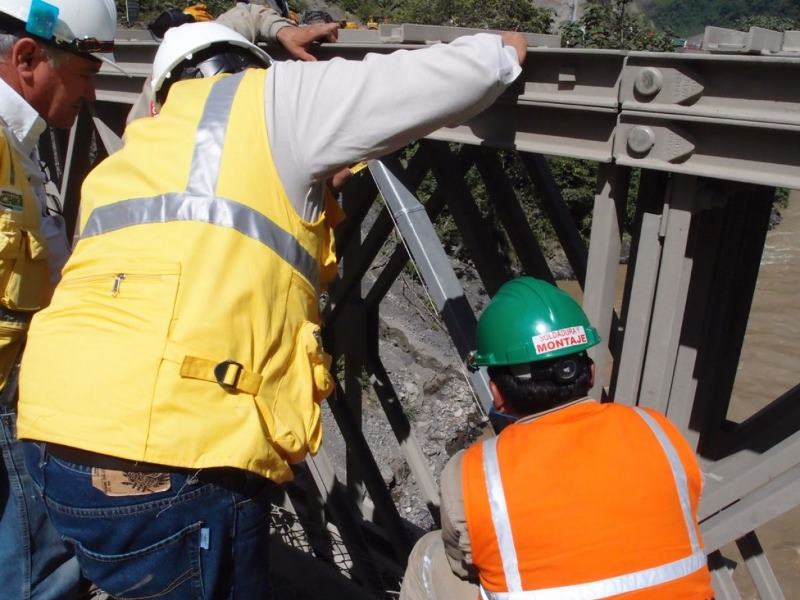

Train Rail Bridge Erection Inspection ZHM China


Detailed Product Description


Material: Q355B(equal to S355JR or ASTM A572 Gr.50)  Steel Surface Treatment: Painted Or Hot Dip.BS/EN 1461 or ASTM A123 etc

Size: According To Client's Need

Installation: Lifted Into Place By Crawler Crane, mobile cranes or even Hand Without Crane, Easier Construction.etc

Multi-use: Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. Carry Capacity: Resist Strong Wind And Earthquake, Bears Heavy Snow.etc
Model Number: CB100(321-Type)&HD200 Grade: Q355B-Q460C

Q355B-Q460C: AISI, ASTM, BS, DIN, GB, JIS Color: Army Blue, Light Gray, Hot Galvanized Or Customized.etc

High Light: Curved String steel truss bridge, Curved String metal truss bridge, Stiffened steel truss bridge

Curved String Steel Truss Stiffened Continuous Beam Structure High-speed Railway Bridge


The third and second strong curved steel truss stiffened continuous beam structure high-speed railway bridge in China, more than 30,000 sets of full bolt connections, after the box girder is connected, it has to go through the tension and the 2000-ton bridge erecting machine 20 times back and forth, the whole bridge forming accuracy Millimeter level.

Product Name Curved String Steel Truss Stiffened Continuous Beam Structure High-speed Railway Bridge
Width14 meter or customer required sizes,etc.
Maximum span 64meter single span and 200meter multi-span or customized.
Bridge deck Steel composite panel,timber,concrete,etc.
Steel grade Q345B (equivalent to ASTM A572) or customized materials,etc.
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted or Hot dip galvanized,army blue,etc.
Advantages Price effective and technical full analysis and supports

Features

  • • Adaptable - pre-engineered to match each application
  • • Fast - modular stocked components, open to traffic in days
  • • Lower Cost - an alternative to custom designed bridges
  • • Easy - to handle, transport, assemble, install and reuse

Advantages
  • Possessing the features of simple structure,
  • convenient transport, speedy erection
  • easy disassembling,
  • heavy loading capacity,
  • great stability and long fatigue life
  • being capable of an alternative span, loading capacity


Why ZHM Huawu Metal Modular Railway Bridges Steel Structures | Universal Emergency Bailey Trusses ?


Reliable_and_customized_DesignsG
Cutting_edge_designing_process
Free_online_Pricing_System
Easy_Bolt-by-number_Assembly
Reliable and Customized Designs Cutting Edge Designing Process Free Online Price System Easy Bolt-by-number Assembly
Over_two_decades_of_Experiencey
Value_Engineering_for_Money
Unmatched_In_Quality
Excellent_Customer_Service
Over Two Decades of Experience Value For Money Unmatched in Quality and Craftmanship Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's Metal Modular Railway Bridges Steel Structures | Universal Emergency Bailey Trusses  ? Visit our Photo Gallery.
