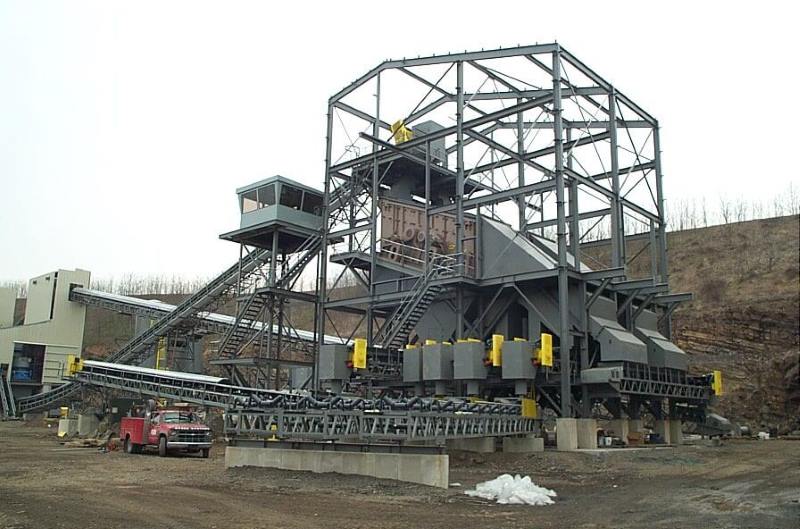

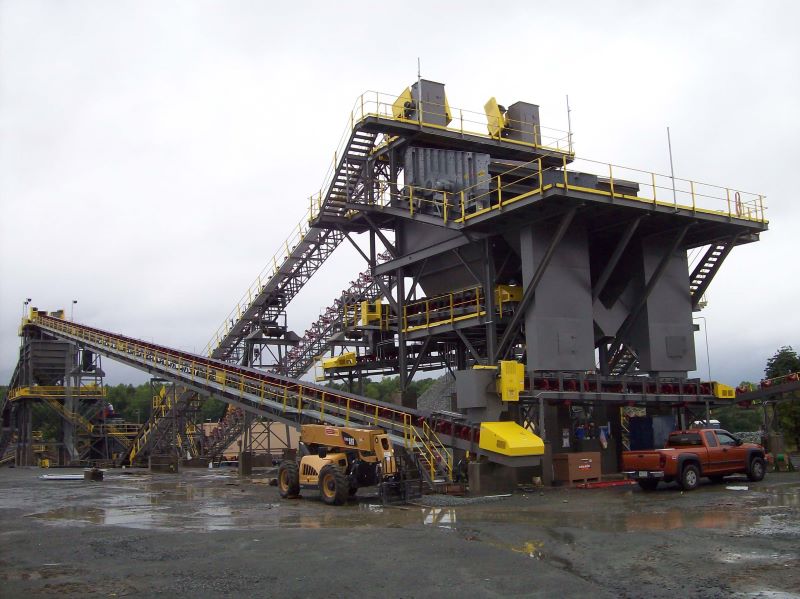

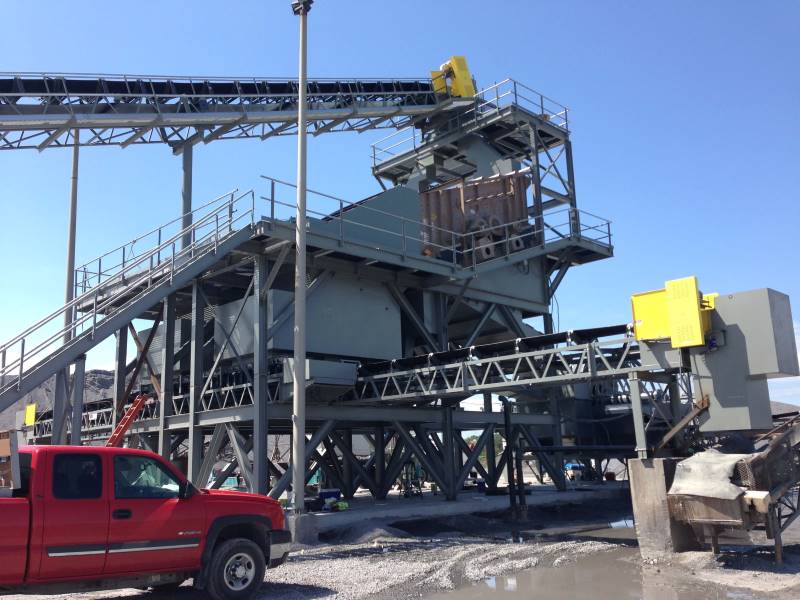

Dual Screen Station Towers Processing Crushed Sandstone | ZHM Huawu Steel,China

2024-6-28 21:12:30
Dual Screen Station Towers Processing Crushed Sandstone | ZHM Huawu Steel,China

Dual Screen Station Tow

Introduction

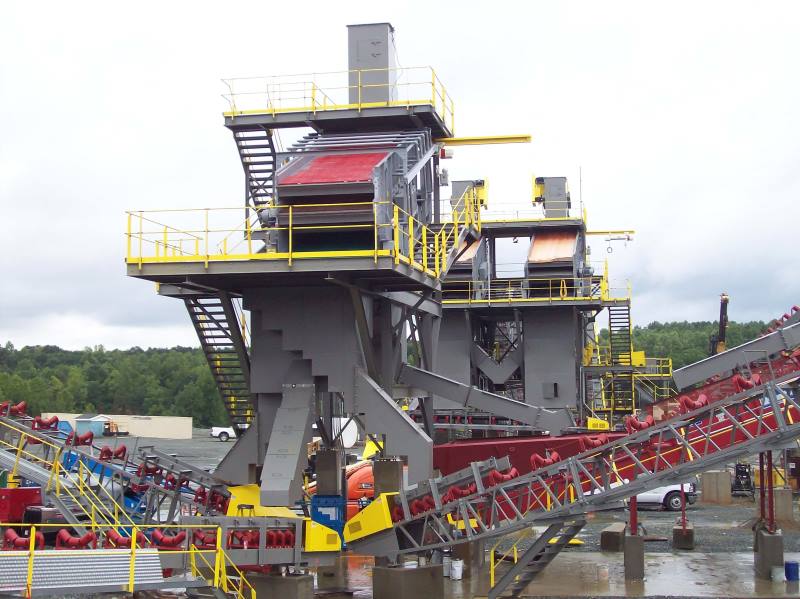

Single Finishing Screen Structure Utilizing Rock-shelf Chutes


Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual Screen Station Towers Processing Crushed Sandstone

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures:Dual Screen Station Towers Processing Crushed Sandstone


Introduction:


Mining activities are one of our planet’s last pioneering undertakings. They use sophisticated scientific principles against hard rock and dirt as they descend through geological strata to seek minerals and ore. The mine face, a rock-breaking zone where you can find workhorse drilling and digging instruments despatch raw rocks of heaps into steel-encased grizzly feeders, is the heart of the operation. We do not believe in taking anything away from the mine’s heart, but we believe that screening and transporting is where aggregate matter is turned into a marketable product.

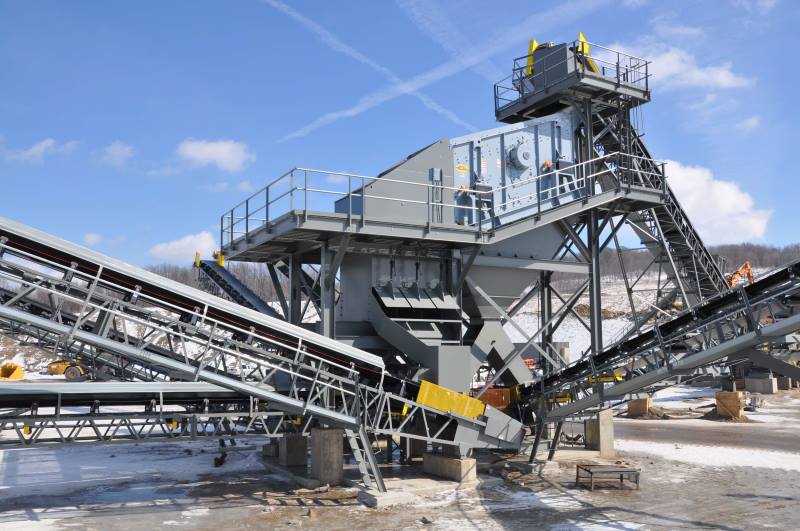

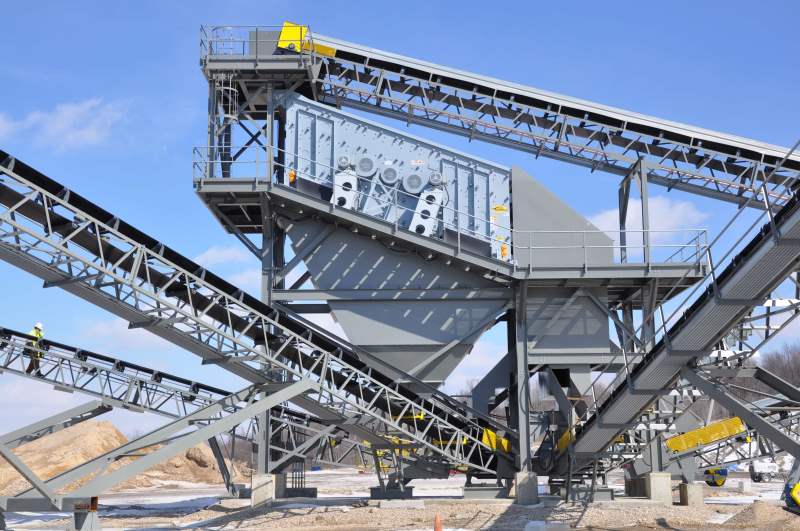

Screening stations are available in a wide variety of configurations, portable or static, and to suit any type of material or production capacity. ZHM Huawu Steel can help you determine the best type of screening station for your facility. We have experience in the design, fabrication, and installation of scalping & finishing screen stations, dry or wet process, hi-frequency screening stations, wet fines recovery and de-watering screening stations.


ZHM Huawu Steel design and manufacture heavy duty hoppers, feeders & frame conveyors for all industrial and commercial applications,These designs performs in tough environments while protecting the product from the weather conditions, capturing of dust emissions, while limiting the risk of igniting flammable products. Common options include: trussed frames, walkways, service platforms, support bents, transfer towers, and reloading tail sections.


The scope of structural steel works:


The scope of structural steel works for Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines usually included the followings:

1. Structural Steel (All Type & Size Members) Raw Material Supply, Fabrication and Site installation of all type & member sizes Structural Steels as sandblasted and painted, Gratings, stair treads, fasteners (Bolts, Nuts, Washers) as per details and design made by ZHM Huawu Steel;
2. Sandblasting & Painting
3. Grating (30*3mm)
4. Stair Treads (L750)

5. Fasteners (Bolts, Nuts, Washers)

6.the supply, fabrication and erection of Building and Conveyor Steel Structures and Plate/Chute Works, associated assemblies and site erection


Project Showcase:

The Asanko Gold Mine (AGM) is Galiano’s flagship asset since 2016, located in Ghana, West Africa. It is full owned and operated by Galiano, with a 10% interest held by the Government of Ghana.

The AGM is a multi-deposit complex, with four main open-pit mining areas: Abore, Miradani North, Nkran and Esaase, and multiple satellite deposits, situated on the Asankrangwa Gold Belt, and a 5Mtpa carbon-in-leach (CIL) processing plant. Gold production commenced in January 2016 and commercial production was declared on April 1, 2016. Galiano Gold is focused on creating a sustainable business capable of value creation for all stakeholders through production, exploration and disciplined deployment of its financial resources. The Company operates and manages the AGM, located in Ghana, West Africa, jointly owned with Gold Fields Ltd. Galiano is committed to the highest standards of environmental management, social responsibility, and the health and safety of its employees and neighboring communities.


The common, standardized basis for steel works and materials supplied and erected for the entire construction of the permanent project.  The stated purpose of this article is to clearly demonstrate that the work performed will result in a safe and fully operable structural system in accordance with the regulations, specifications, contract documents and drawings.


Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Portable Screening Station Plant Building

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Portable Screening Station Plant Building

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower (wet) processing sand and gravel

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower (wet) processing sand and gravel

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Double deck screen in a recycled asphalt application

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Double deck screen in a recycled asphalt application

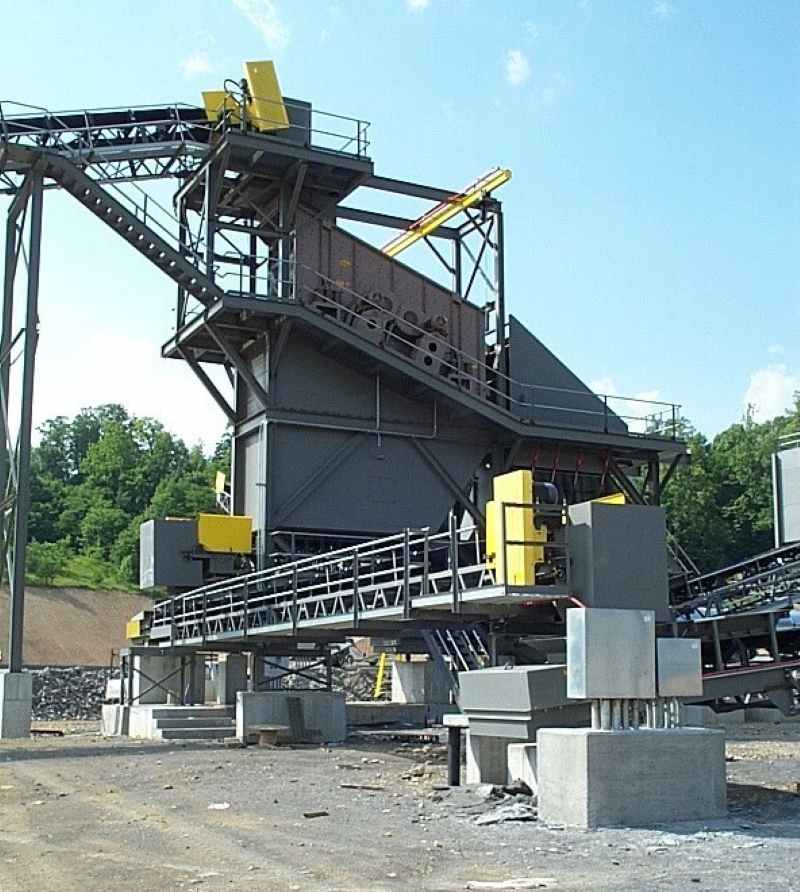

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Triple deck screen station

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Triple deck screen station

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Screening station featuring “roll-away” oversize chute

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Screening station featuring “roll-away” oversize chute

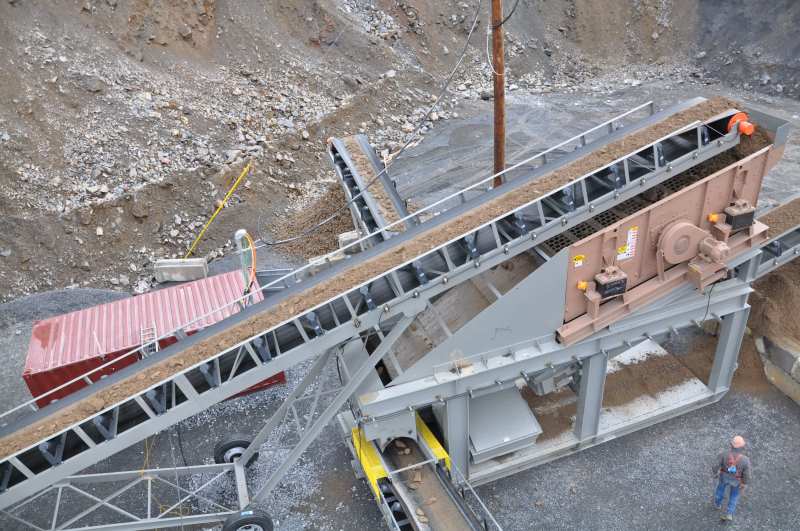

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Semi-portable scalping screen unit

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Semi-portable scalping screen unit

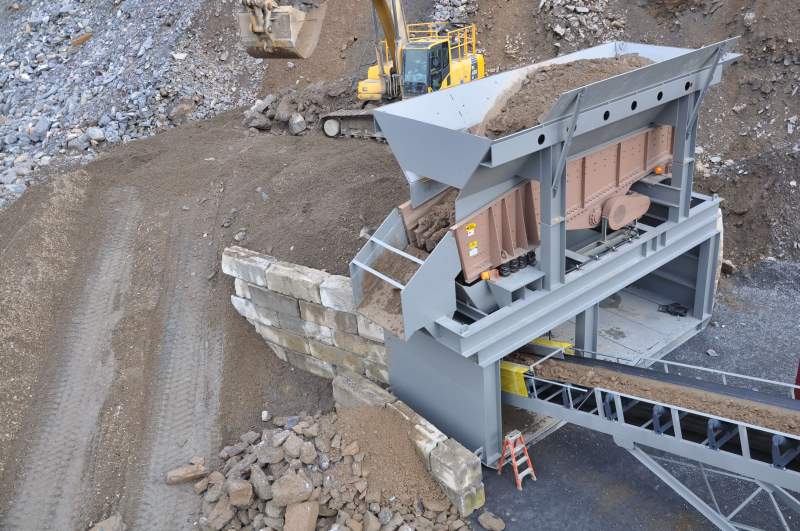

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Semi-portable vibrating grizzly plant

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Semi-portable vibrating grizzly plant

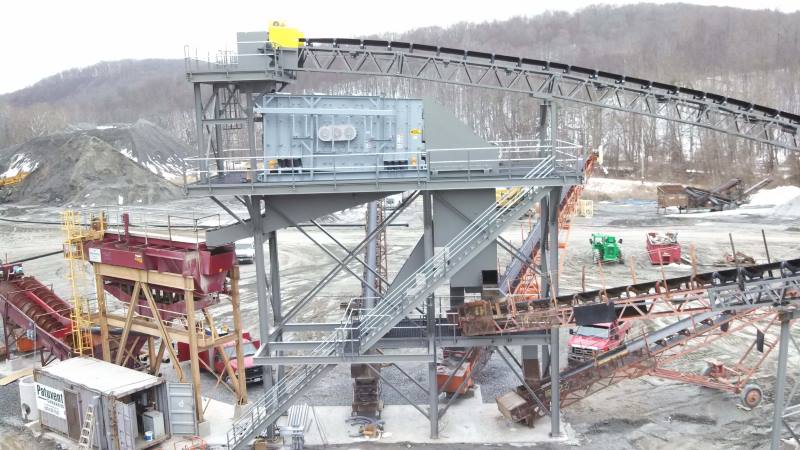

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Horizontal wet screen processing sand & gravel

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Horizontal wet screen processing sand & gravel

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen station; enclosed

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen station; enclosed

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Scalping screen station with “roll-away” over chute

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Scalping screen station with “roll-away” over chute

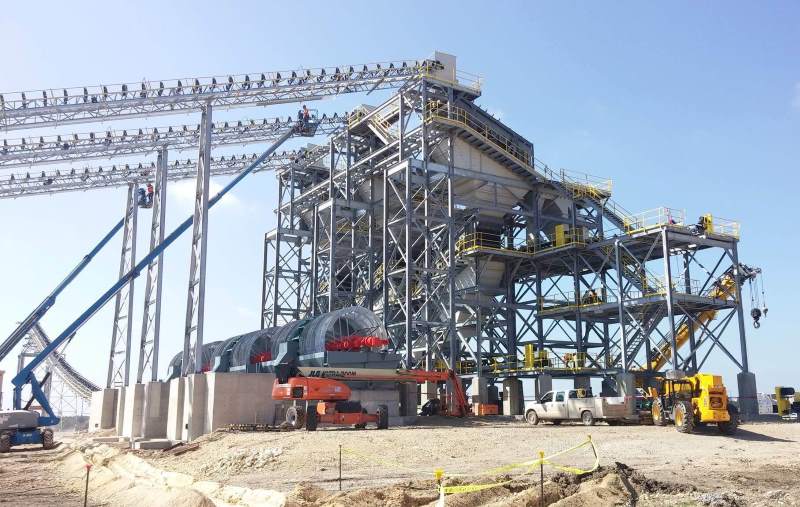

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Wet screening station processing crushed limestone

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Wet screening station processing crushed limestone

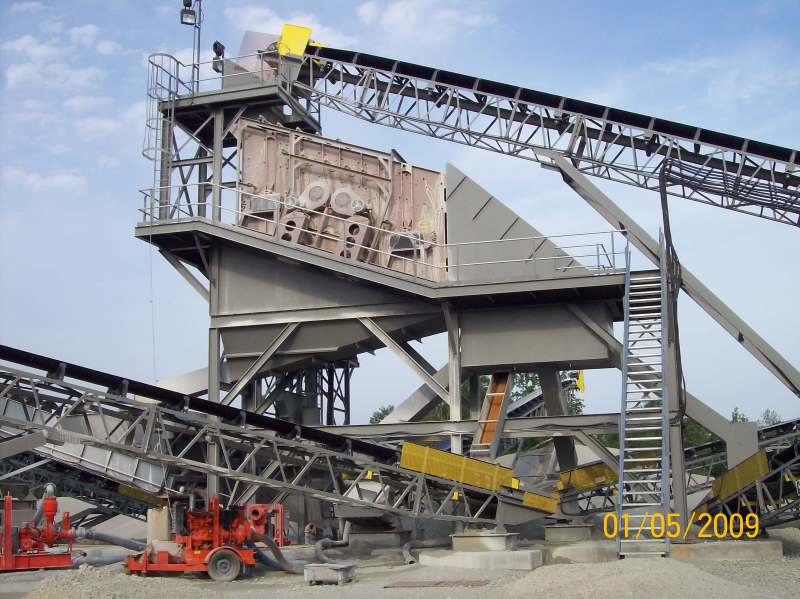

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Wet screen station processing sand

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Wet screen station processing sand

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower processing crushed granite

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower processing crushed granite

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Single finishing screen structure utilizing “rock-shelf” chutes

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Single finishing screen structure utilizing “rock-shelf” chutes

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower processing crushed sandstone

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Dual screen tower processing crushed sandstone

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Portable horizontal screen utilizing a “spread-chassis” design

Screen Station Buildings and Screen Feed&Discharge Conveyors Steel Structures: Portable horizontal screen utilizing a “spread-chassis” design

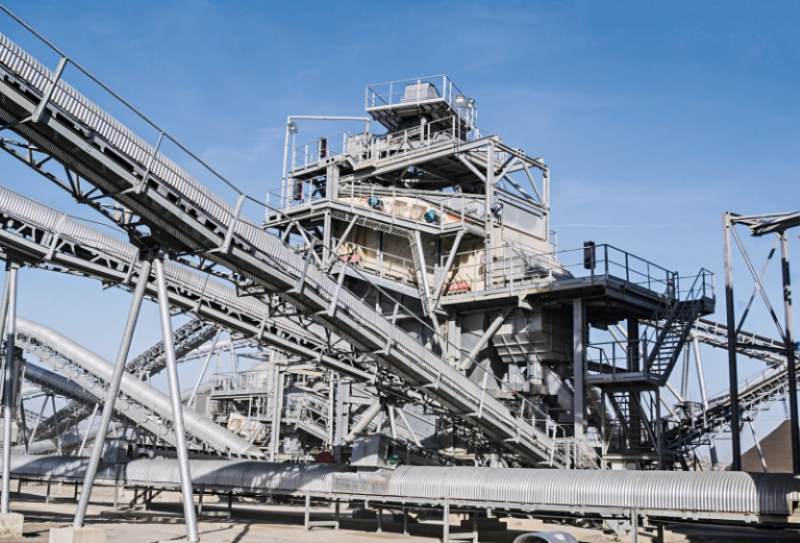

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines

Screen Buildings and Feed&Discharge Conveyers Steel Structures

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines

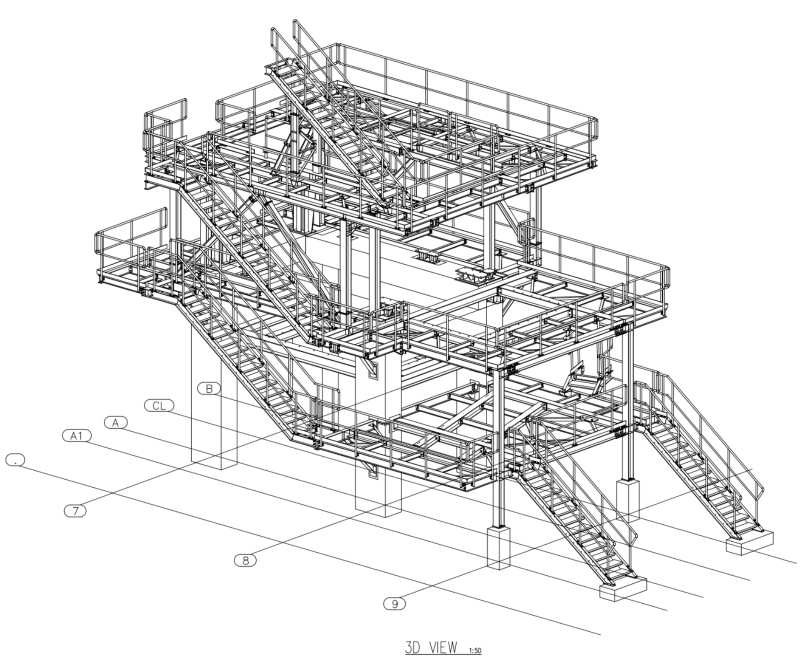

Screen Buildings and Feed&Discharge Conveyers Steel Structures: 3D Isometric View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines 3D Isometric View

Screen Buildings and Feed&Discharge Conveyers Steel Structures for Gold Mines 3D Isometric View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines Elevation View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines Elevation View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines Section View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines Section View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines-Plan View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines-Plan View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: typical Grid Elevation

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines typical Grid Elevation

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Typical Structure Section View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines Typical Structure Section View

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Grating Layout Step Tread Details

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Grating Layout Step Tread Details


1 Materials

1.1 Construction Materials

1.1.1. Structural Steel

.1 Hot-rolled sections (except angles) - 355MPa (S355JR)
.2 Hot-rolled equal leg angles up to and including 50mm leg length - 200MPa (CQ Material)
Minimum.
.3 Al other hot-rolled equal leg angles and al unequal leg angles - 355MPa (S355JR)
.4 Structural hollow sections - 300MPa (300WA) Minimum
.5 All platework - 275MPa (S275UR) Minimum
.6 Cold-formed lipped channels - 200MPa (CQ Material) Minimum

.7 Minimum thickness:
a. Hot-rolled structural sections- 5,0mm.
b. Structural hollow sections - 3,0mm.
c. Cold formed structural sections - 2,5mm.
d. End plates, gussets, and stiffeners -10mm

.8 Unless otherwise specified in the material specification or in the inspection- and testing plan,the inspection (material test) certificates specified in below Table will be followed for the steels to be processed.


Steel Grade
Material Test Certificate
S235JR
EN10204 Type 2.2
S235J0, S235J2+M, S235J2+N, S355JR, S355J0,
S355J2+M, S355J2+N
EN10204 Type 3.1


1.1.2.Bolts, Nuts and Washers:


.1 All bolts, nuts and washers to be hot dip galvanised with tree turning nuts to relevant section of SANS 1700. In Cyanide and corrosive areas the Galvanised bolts shall be primed and painted as per the paint specification for corrosive areas.
.2 Al bolts, nuts and washers shall be minimum M20, Grade 8.0 with Grade 8 nuts, (U.O.N.) for all structural connections.
.3 Bolts, nuts and washers (under nuts) for mechanical plate-work and hand-railing shall be minimum M16, Hot dip galvanised, Grade 8.8 with Grade &nuts. (Stair treads - M12). Bolts to be spaced 150mm for wet platework and 200mm for dry conditions.
.4 Taper washers are to be used where required by the steel section.
.5 All liner plates to be fastened with countersunk nib head bolts with Nyloc nuts or equivalent.


2.Fabrication

2.1 Cutting

.1 Where the ends of members are to bear in compression, the ends shall be cold sawn and then machined so that the loads are evenly transmitted over the entire area of the section.
.2 In all other cases, setting may be by shearing, cropping or sawing. Notches or other shaping to  the ends of members shall be formed by cold or hot sawing.
.3 Machine Flame cutting may be used only where approved, in writing by the Owner.
.4 Manual flame cutting shall not be allowed under any circumstances.
.5 Edges shall be free from any defects which would adversely affect the serviceability of the member. All burrs and similar defects shall be carefully removed. The edges of flame cut plates shall, unless otherwise agreed by the Consultant be machined to remove notches, the heat
affected zone or both.
.6 Flame/thermal cuts must be deburred regarding the burrs.
.7 For flame cutting the freedom from any corrosion by condensed water must be ensured.
.8 All sharp edges must comply with the corrosion protection requirements (chamfering, as  required).
.9 Thermal Cutting: The capability of automated thermal cutting processes shall be checked annually as set out below. Four samples shall be produced from the constituent product to be cut by the process:
  • a. a straight cut from the thickest constituent product.
  • b. a straight cut from the thinnest constituent product.
  • c. a sharp corner from a representative thickness.
  • d. a curved arc from a representative thickness.
.10 Measurements shall be taken on the straight samples over at least a 200 mm length on each and checked against the required quality of the cut surface. The sharp corner and curved samples shall be visually inspected to establish that they produce edges of equivalent standard to the straight cuts.


2.2 Holes For Fasteners


.1 Holes for fasteners shall not be formed by flame cutting. Holes for the assembly of built-up sections shall normally be drilled after the members have been assembled and tightly clamped together.
.2 All burrs shall be removed from holes before assembly except that, where holes are drilled in one operation through parts which would not otherwise be separated after drilling, the parts need not be separated to remove the burrs provided that the holes are for black bolts only.
.3 Finished holes for black bolts shall not be more than 2 mm in diameter larger than the diameter of the bolt passing through them for bolt diameters up to 24 mm and not more than 3 mm larger than the diameter of the bolt for diameters over 24 mm unless otherwise specified by the Owner or required by the design.
.4 Slots, where specified or permitted, shall be formed using a proper slotting machine. Alliteratively, holes may be drilled and the metal between removed by filling or other approved method provided that the surface between the circular ends is even and straight.



2.3 Welding Operations


.1 Any fillet welds with a fillet depth a > 3 mm, which are not subjected to any submerged arc welding, must be made with multiple pass.
.2 Stud shear connectors, where specified, shall be welded in accordance with the manufacturer's  instructions.
.3 For any load-bearing structural parts, columns, crossbeams, diagonal stays, etc. an allocation of the welder to the seams welded by him is to be ensured. This can be achieved by a stamping of the seams with the relevant welder's number or allocating of the welder stamp by marking in a drawin
g/sketch.

4.2.1. Welding Qualification Records (WPQR/ WPAR)


.4 The suitability of welding procedure for the following cases is to be determined by welding procedure qualification tests (WPQR/ WPAR) according to EN/ISO norms.
a. For every welding procedure and filler metal (type designation according to the standard) for steels ≤ S355,
b. For every welding position which occurs in the production
c. Steels > S355 separated agreement.
d. Fillet welds shall be qualified separately and shall not be covered by butt welds.

4.2.2. Welder's Qualification Tests (WQT)


.5 Welders must have a valid welder's qualification certificate according to EN/ISO norms. In addition to EN/ISO norms it is defined that welders who perform the fillet welding must have welded a fillet weld test piece. Operators must have a valid operator's qualification record
according to EN/ISO.
a. The technical qualification must have been proved.
b. The scope of qualification must cover the welder’s/operator’s scope of app


4.2.3. Quality of Welds


.1 All slags, weld spatters, ignition points and deposits due to welding must be removed. Any auxiliary materials resistant to spatters are subject to the explicit approval by Owner.
.2 Any inadmissible notches must be removed in a professional manner – primarily by flush grinding, in particular cases by re-welding.

.3 Preheating and temperature of intermediate layers, rate of cooling and as required heat control and heat application depend on the specifications of each applicable welding procedure qualification test (WPQR/ WPAR).
.4 A sufficiently wide and homogeneous heat distribution (≥ 50 mm on both sides of the groove as a function of the component thickness and ambient temperature) is to be ensured.
.5 Welding points must be protected against harmful weather influences, e.g. precipitation, condensation water, draught and wind.

4.3. Testing of Welds


.1 Owner reserves the right to demand test welds. The weld seam quality is evaluated according to the criteria of standard EN ISO 5817 (see also below Table).
.2 The following testing shall be applicable to non-destructive tests:

  • a. (VT) Visual inspection
  • b. (PT) Dye penetrant inspection
  • c. (MT) Magnetic particle test of welded joints
  • d. (RT) Radiographic inspection
  • e. (UT) Ultrasonic inspection
.3 Unless otherwise specified, in the static stress calculation or the order related inspection- and test programs, below table shall be applicable.

Weld Joint
NDT Ratio
NDT Ratio
NDT Ratio
Weld Joint
VT
(%)
RT or UT
(%)
MT
(%)
Full Penetration Butt Welds
100 100 20
Fillet Welds
100 --- 20
T-Joint Butt Welds
100 100 20


4.4. Payment For Testing


.1 ZHM Huawu Steel, as the Manufacturer,  will include in his rates for the cost of providing and using equipment for the non-destructive testing of welds (radiographic, ultrasonic, dye penetrate and
magnetic particle), during fabrication and on site as required by the radiographic films and other test results and reports available to the Owner.


4.5. Painting

.1 Steel plate work shall be protected against corrosion by the application of coatings as shown on the drawings and specified below. The EU/ISO standards and guidelines shall be binding for the corrosion protection, unless otherwise specified by Owner.


4.5.1. Surface Preparation


.1 The surface preparation of any non-galvanized parts shall be done by means of dry abrasive blast cleaning.
.2 In this respect, all steel parts including the weld seams are de-rusted according to EN ISO12944-4 immediately prior to the application of the primer coat by means of dry abrasive blast cleaning at least until the standard preparation grade Sa 2½ is reached. For any cast parts of metal an
equivalent pre-treatment is taken for granted.
.3 For any non-galvanized parts any rust, welding residues, weld spatters, slag, burrs, salt, atypical impurities and similar must be removed from the surfaces prior to blast-cleaning. Rust, weld spatters, slag, burrs must be removed. Any boreholes shall be considered as surfaces and
accordingly prepared in an equivalent manner. Any existing edges from flame cuts, saw cuts, punched holes and cutting work, etc. shall be chamfered. Any screw holes and boreholes shall be deburred.

4.5.2. Application of Painting


.1 The application of the factory-made coating(s) shall be affected in closed rooms by airless guns. All corners, clearances, screw holes and hardly accessible areas must be pre-painted after the surface preparation. The primer coat shall be applied immediately after blasting. For the application of the intermediate and finishing coats the rework periods shall be complied with according to the manufacturer's specifications.
.2 The specifications of the paint supplier must be followed with priority.
.3 For the storage and processing of the coating materials the regulations of the coating manufacturer shall be additionally observed.
.4 Before the start of any corrosion protection work the Contractor must inform the Owner as follows:

  • a. execution site
  • b. period of execution
  • c. any commissioned subcontractors
  • d. any applicable coating materials and coating systems incl. manufacturer ZHM Huawu Steel


.5 Inspections of the corrosion protection work shall be made possible to the Owner, the coating manufacturers and any companies commissioned with the application of the later finishing coats at any time and without prior notice.
.6 The specified film thicknesses are to be understood as nominal dry film thicknesses according to EN ISO 12944-5. In this respect, any individual values of the dry film thickness, which are below 80 % of the nominal dry film thickness, shall not be permissible. Individual values between 80 % and 100 % of the nominal dry film thickness are permissible, provided the mean value of all measuring results is equal to or greater than the nominal dry film thickness.
.7 For the max. film thickness the data in the Technical Data Sheet of the coating supplier shall be applicable. If no data is contained in these data sheets, the max. film thickness must not be greater than three times the nominal dry film thickness.
.8 For any applied factory-made coating systems with multiple layers the coating materials shall be purchased from the same manufacturer.
.9 In case of any contact surfaces of pre-stressed screwed connections the contact plate surface may only be provided with a prime coat. A thickness of max. 60 μm is sufficient.
.10 All used fasteners, also galvanized screws, shall receive an equivalent coating structure.
.11 Apart from components, which are delivered according to supplier standard, the following paint


suppliers are released:


  • a. Akzo Nobel / International
  • b. Sigma Coatings
  • c. Hempel
  • d. Sika Protective Coatings
  • e. Jotun


4.5.3. Painting System


- The formulation of paint shall comply with SANS and EU norms.
- All paints forming anyone painting system shall be obtained from one manufacturer and the source of supply shall not be changed. Paint shall be supplied in sealed containers and shall be used in strict order of delivery.


4.5.3.1. COATING/PAINT SYSTEMS


4.5.3.1.1. System 1 (indoors)


Description:


This specification covers the coating of structural steel work, plate work, not insulated, system correspondence to C3 according to EN ISO 12944.

Examples for Application areas:


- Steel structure inside of buildings
- Stairs, platforms, brackets, girders
- Railings, vertical ladders
- Vertical members, corner connection
- Pipes, pipe supports
- Cold air ducts (inside and outside surface), Tanks
- Temporary support for erection of steel structure etc.


Surface preparation:


Blast-cleaning according to ISO 8501-1 grade Sa 2 ½. Surface roughness according to the specifications of the coat supplier.


SYSTEM 1

Layer
Paint Type
Nominal Dry Film Thickness
(NDFT)
Prime Coat

Two-component epoxy resin (EP) zinc phosphate primer.
Clearly other colour shade than top coat
100 μm

Top Coat

Two-component acrylic-polyurethane (PUR).

80 μm


Sum     180μm

4.5.3.1.2. System 2(outdoors)


Description:


This specification covers the coating of structural steel work, plate work, not insulated parts which directly subjected to weather effects, system correspondence to C5-I according to EN ISO 12944.


Examples for Application areas:

  • - Steel structure outside of buildings
  • - (outside) Stairs, platforms, brackets, girders
  • - (outside) Railings, vertical ladders
  • - (outside) Vertical members, corner connection
  • - (outside) Pipes, pipe supports
  • - (outside) Cold air ducts (inside and outside surface), Silos, Tanks etc.

Surface preparation:


Blast-cleaning according to ISO 8501-1 grade Sa 2 ½. Surface roughness according to the specifications of the paint supplier



SYSTEM 2

Layer
Paint Type
Nominal Dry Film Thickness
(NDFT)
Prime Coat

Two-component epoxy resin (EP) zinc phosphate primer.

80 μm

Second
Coat
Two component epoxy resin (EP) zinc phosphate primer.
Clearly other colour shade than prime and top coat
80 μm

Top Coat

Two-component acrylic-polyurethane (PUR).

80 μm


Sum 240μm



The colour scheme will be provided by the Owner


4.5.4. Site Welding and Painting


1 Any areas, in which site welding is performed, shall be pasted over prior to the application of the coating at a distance of 5 cm from the welding bevel for the prime coat and each 5 cm for every other coating layer to be applied. It is not allowed to weld over any welding primers or shop primers.


.2 Where any steel parts are welded to already finish-coated structural steel parts, an area of min.10 cm must be free from any coating materials.



.3 The relevant areas shall be pasted over with suitable adhesive tapes for the avoidance of any major under-rusting. This shall also apply to pipes, headers and similar, which must be additionally closed with plastic protective caps.


.4 The surface pre-treatment and coating shall be performed in conformity with the system requirements.

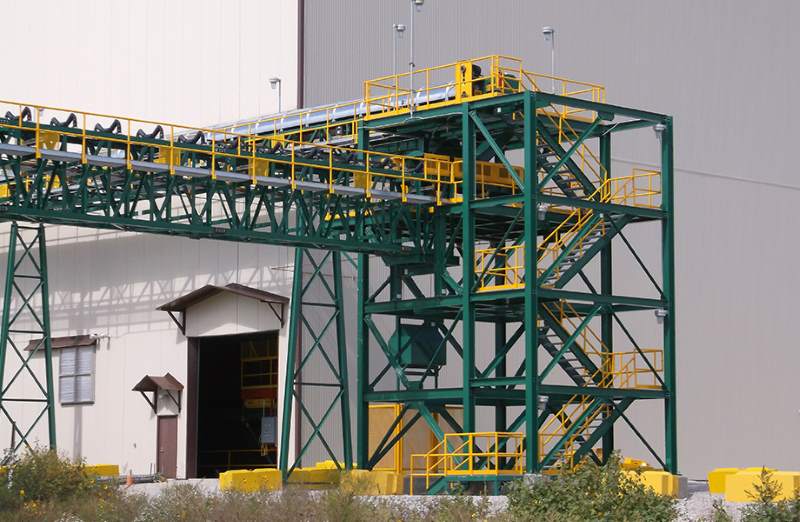

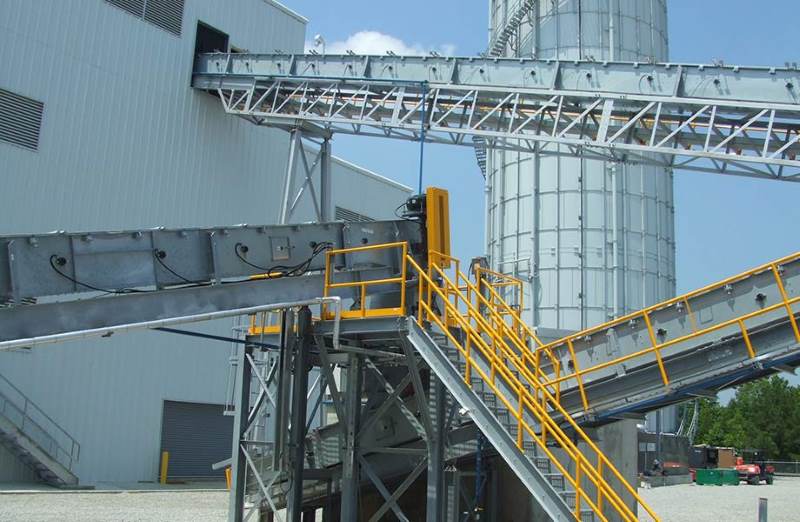

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Transfer Towers

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Transfer Towers

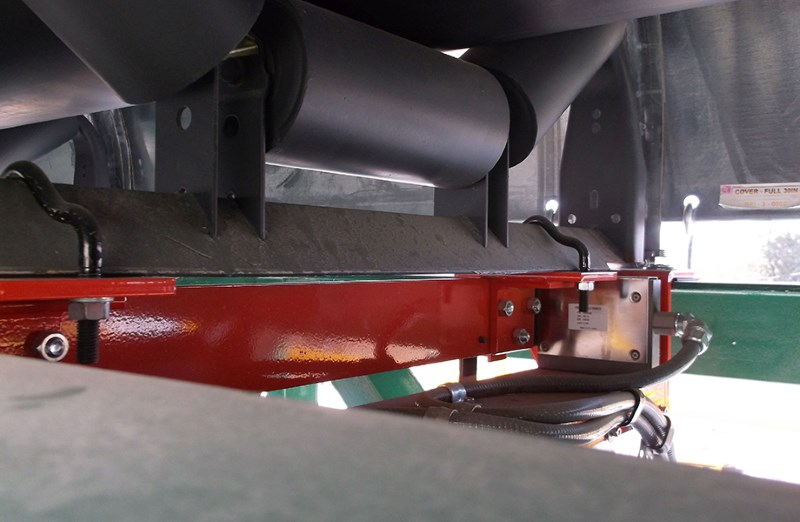

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt Scales

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt Scales

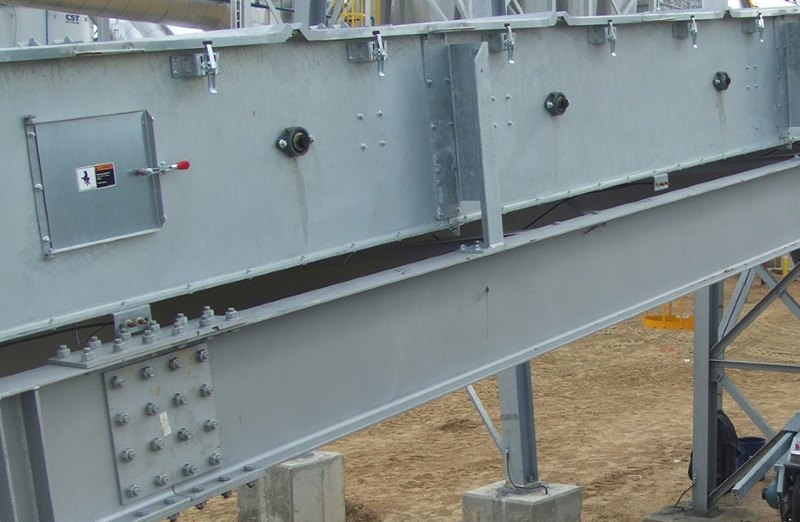

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:Beam Frames

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:Beam Frames

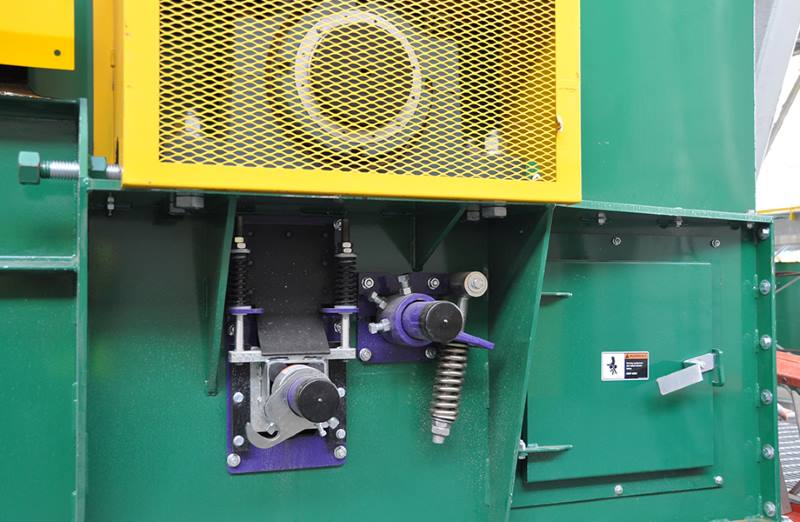

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt cleaner

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt cleaner

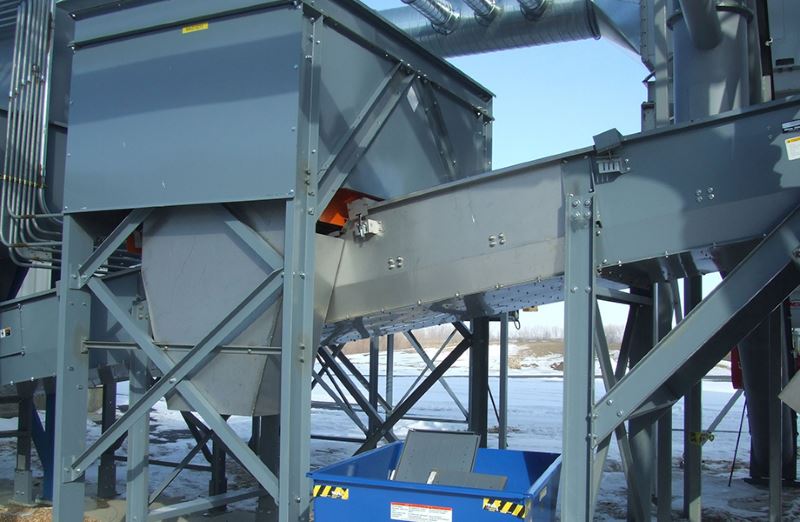

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt Magnet

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Belt Magnet

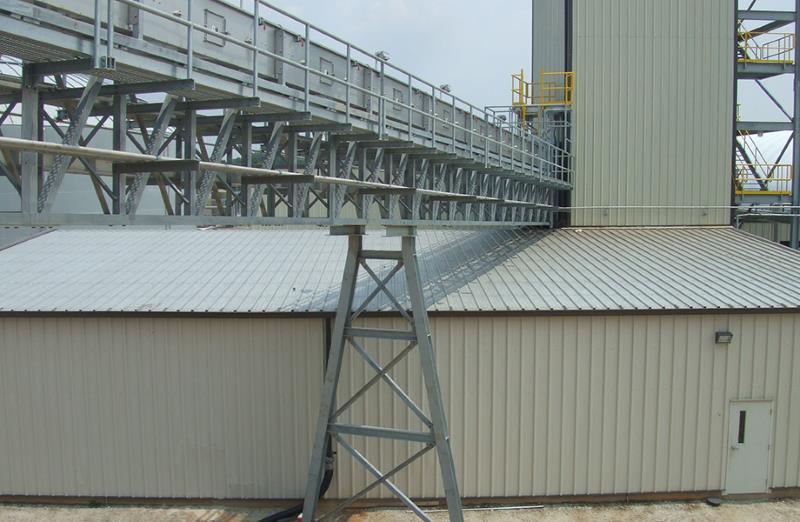

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Box Support Truss

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Box Support Truss

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Box Trusses

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Box Trusses

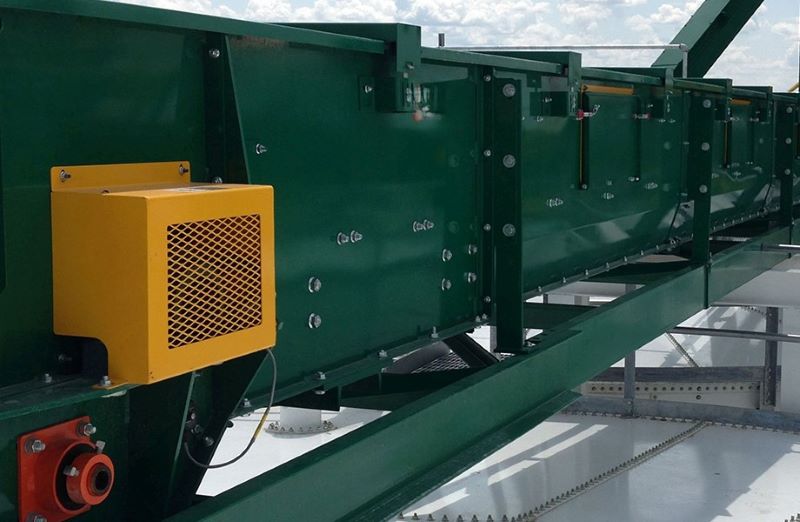

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Channel Frame Trusses

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Channel Frame Trusses

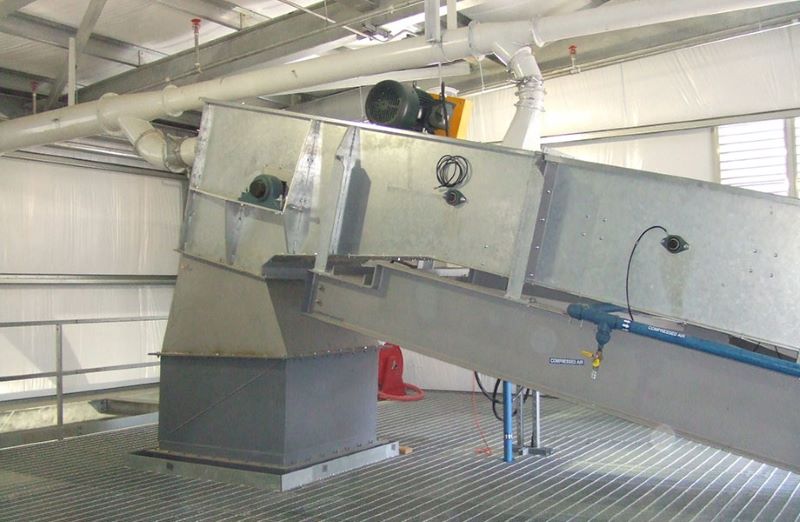

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Chutes_Transitions

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Chutes_Transitions

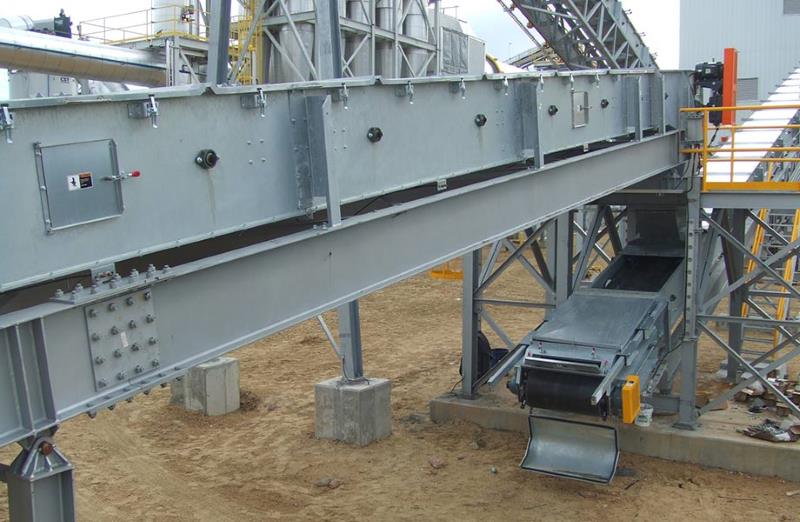

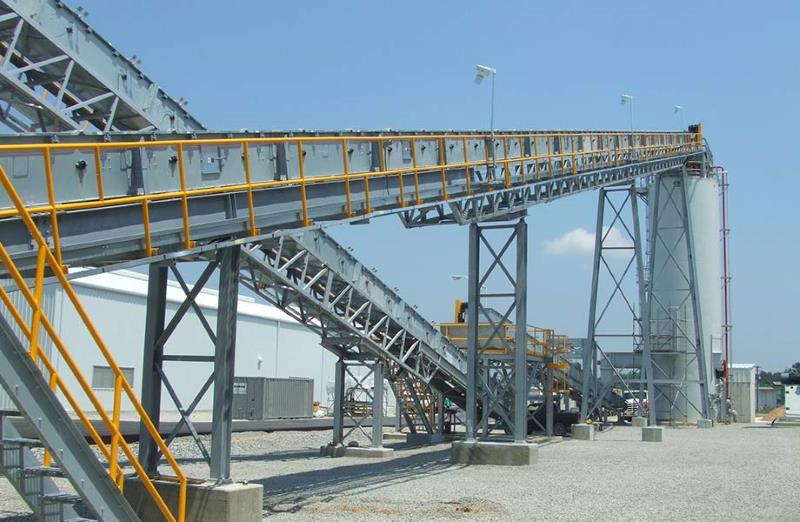

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Supports

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Supports

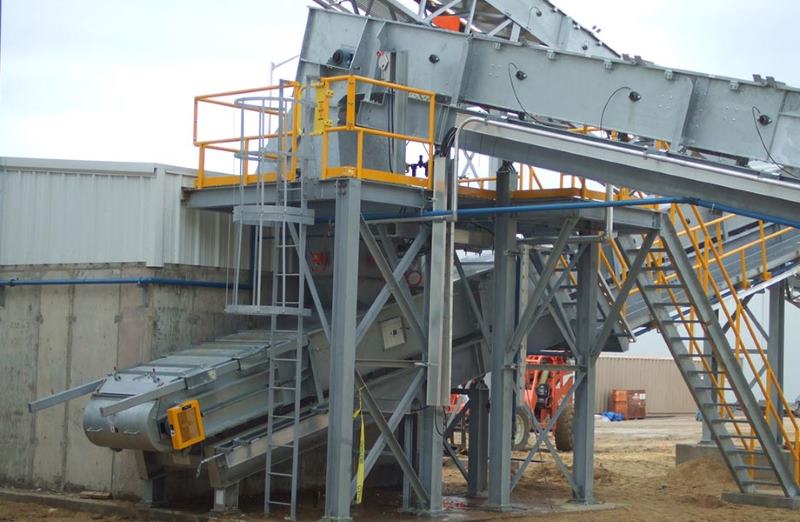

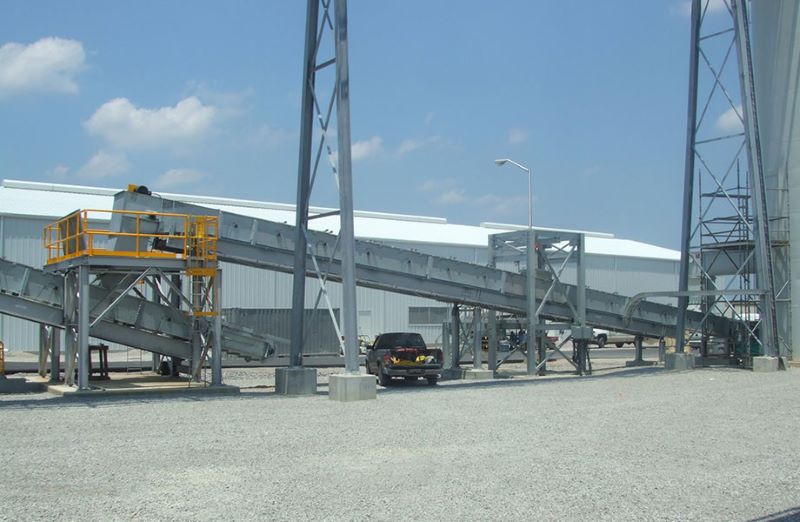

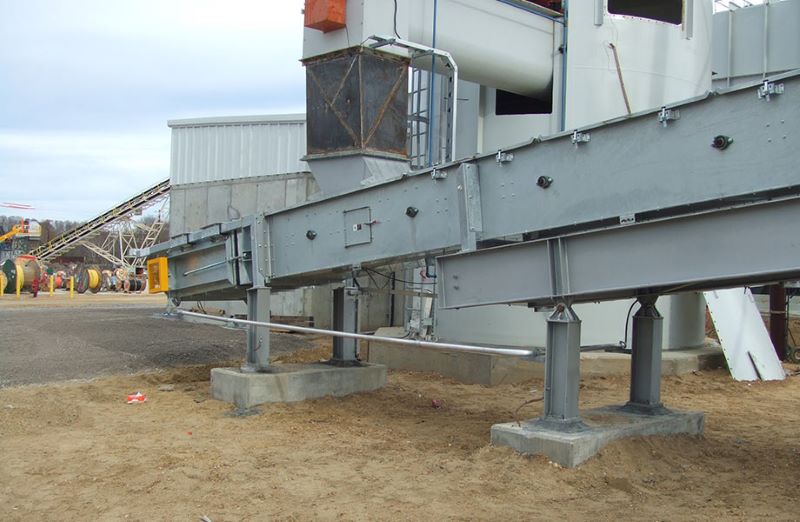

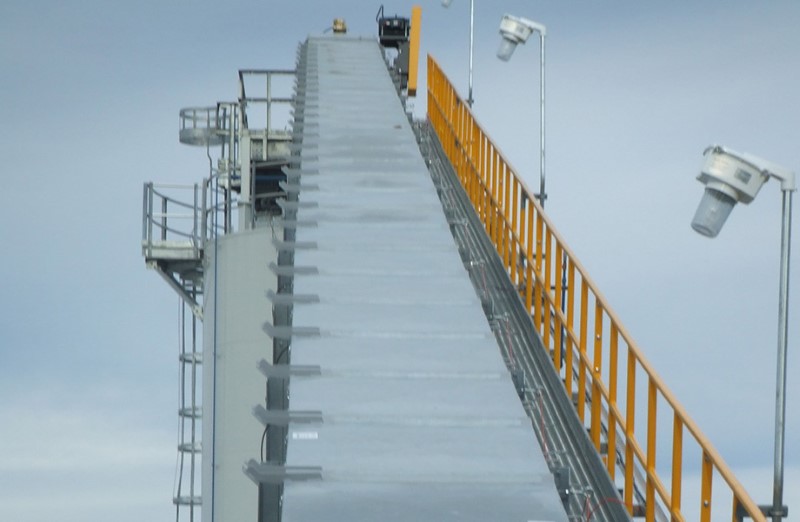

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Transfer Tower

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor Transfer Tower

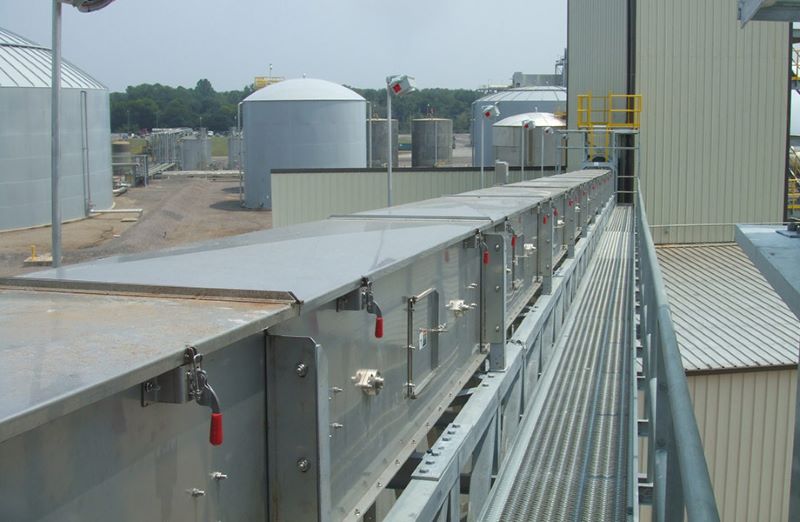

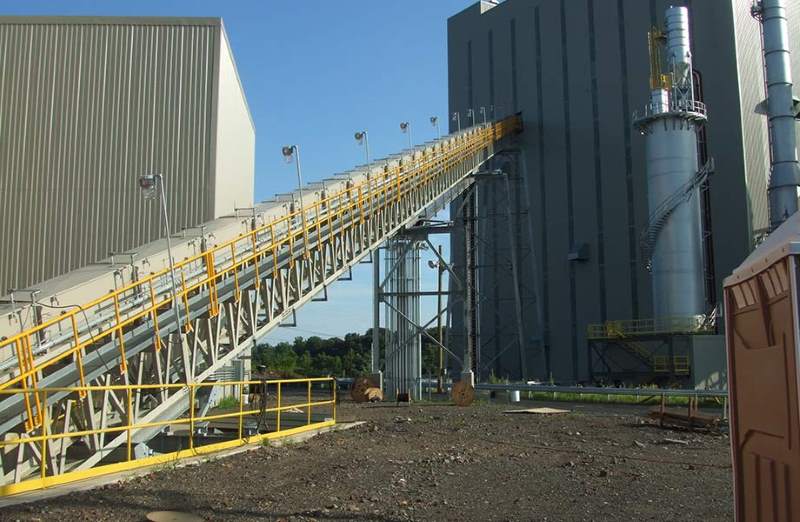

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor_transfer_Tower_12_Conveyor_transfer_Tower

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Conveyor_transfer_Tower_12_Conveyor_transfer_Tower

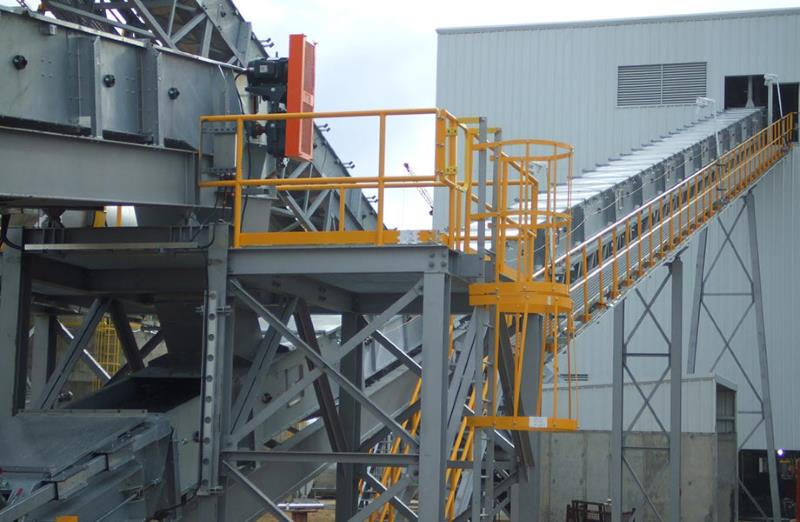

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Custom Platforms

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Custom Platforms

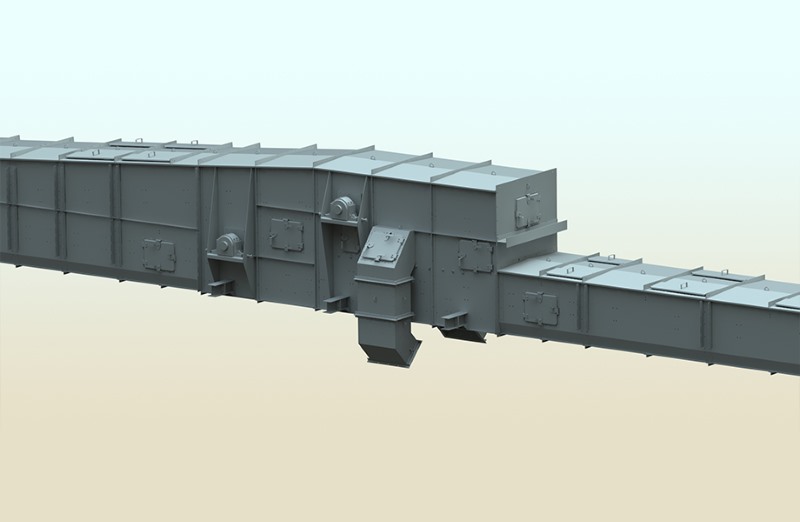

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Fixed Tripper

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Fixed Tripper

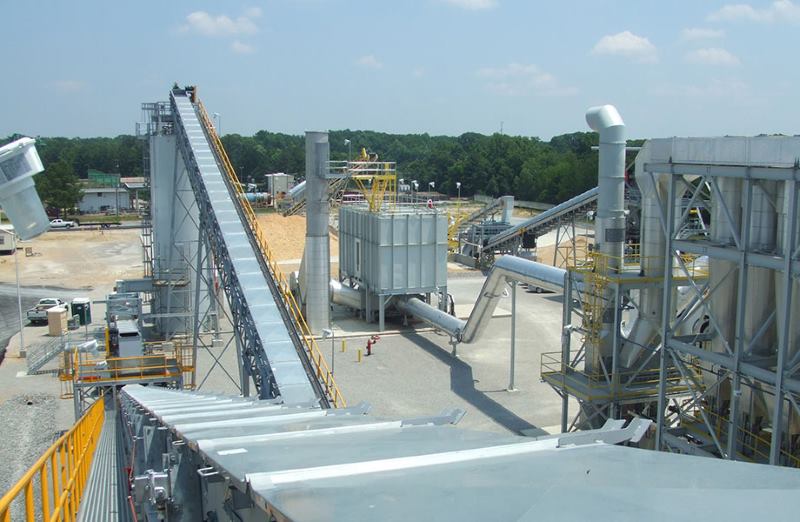

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gallery Trusses

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gallery Trusses

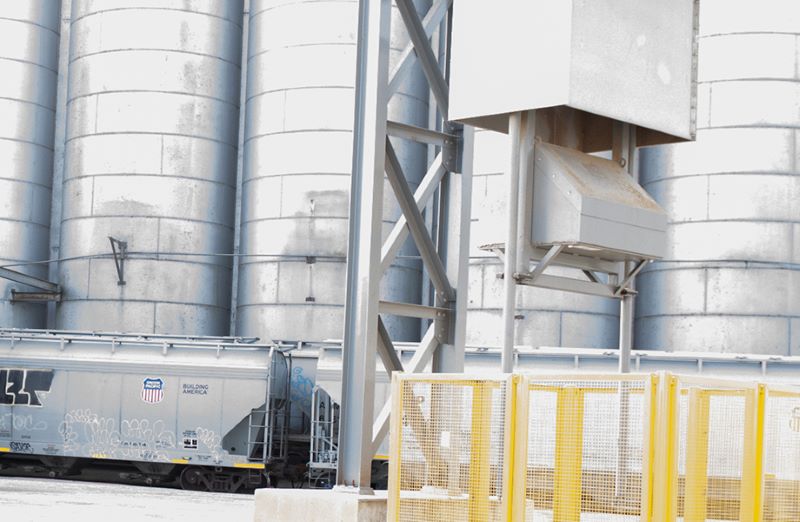

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gravity Take Up

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gravity Take Up

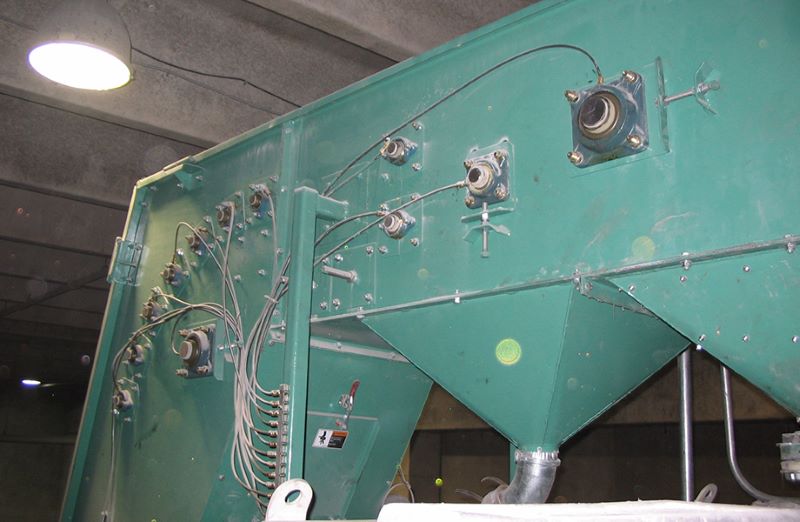

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Grease Lines Flx

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Grease Lines Flx

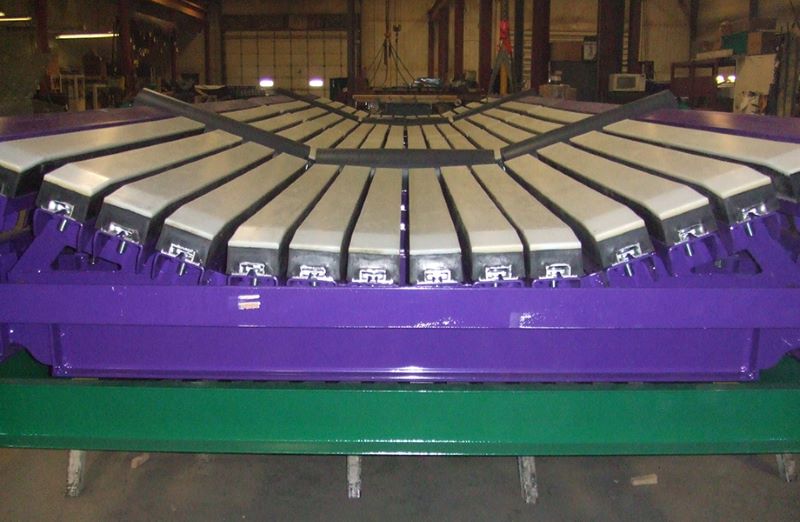

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Impact Beds

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Impact Beds

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines:

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gallery Trusses

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Gallery Trusses

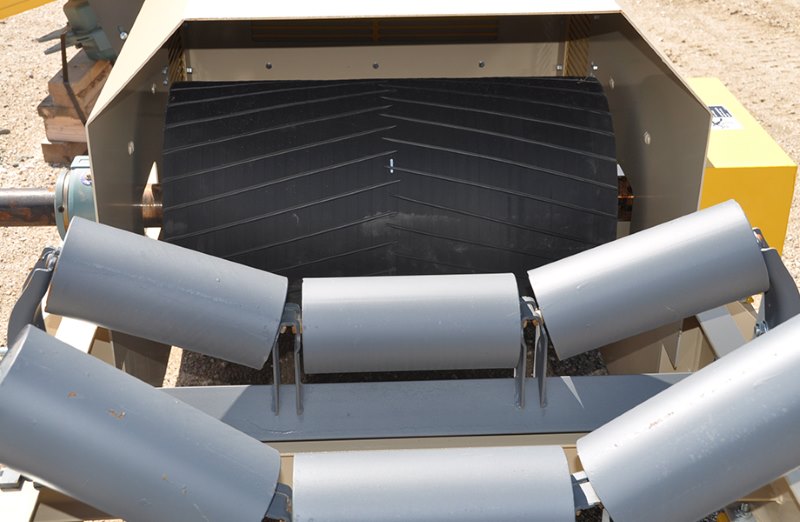

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Pulleys and Idlers TCTR

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Pulleys and Idlers TCTR

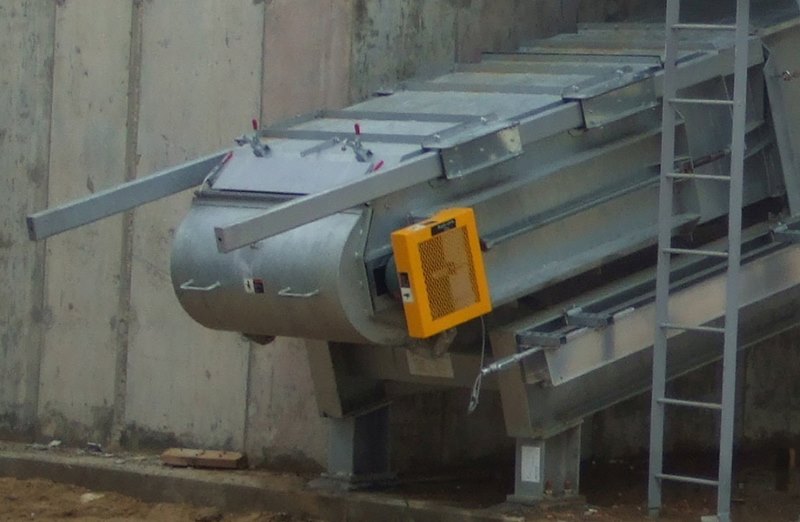

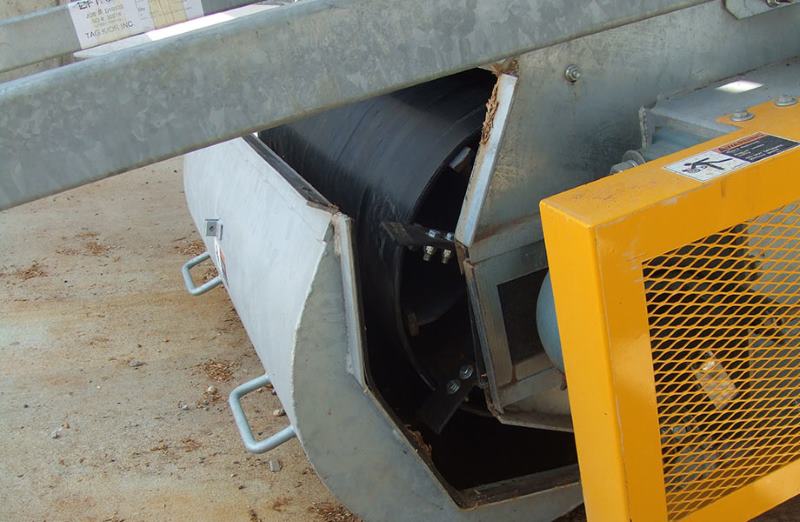

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Self-cleaning Tail

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Self-cleaning Tail

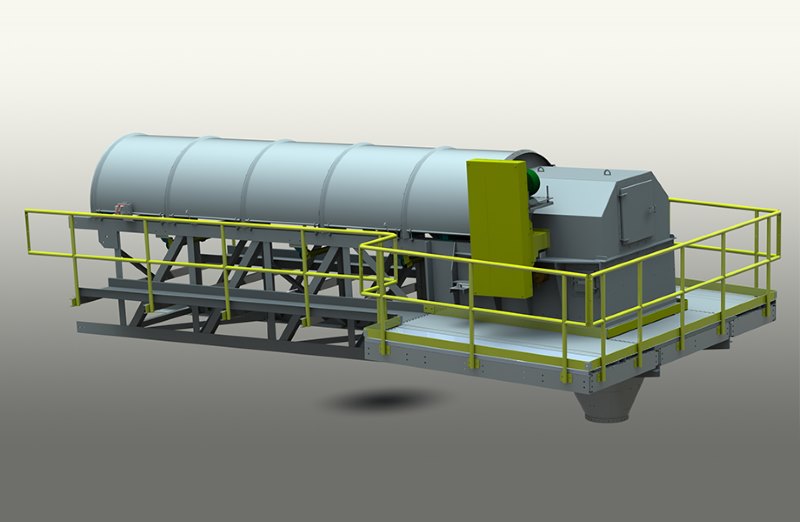

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Service Platform Model TCTR

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Service Platform Model TCTR

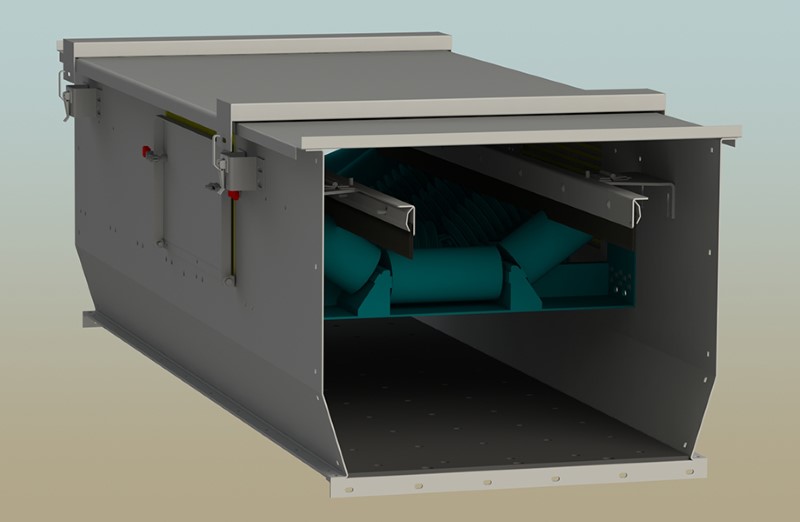

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Skirting

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Skirting

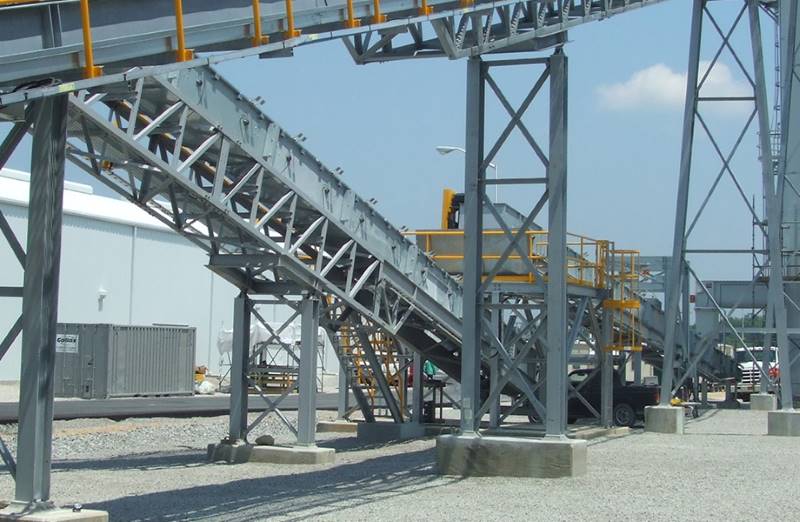

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Support Bents

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Support Bents

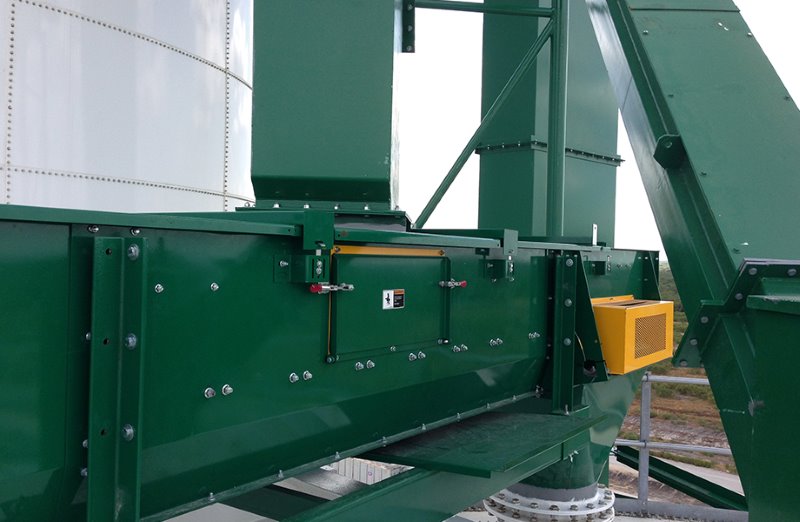

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Tail Discharge Transition ETR

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Tail Discharge Transition ETR

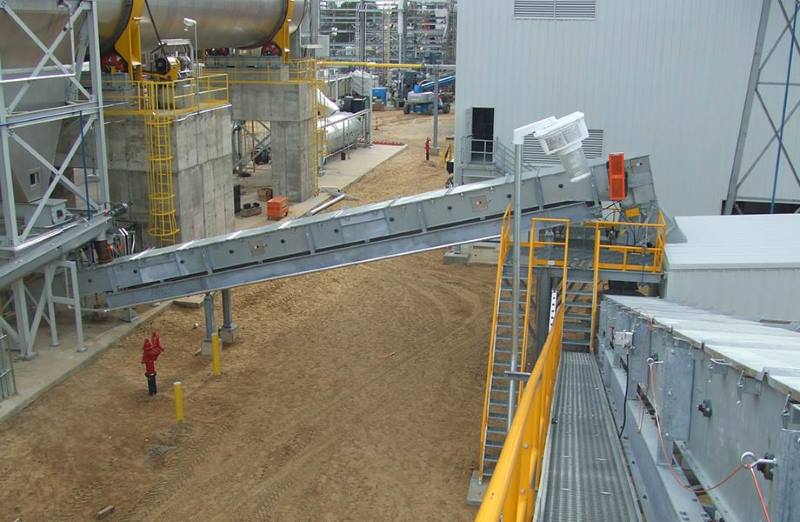

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Transfer Tower

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Transfer Tower

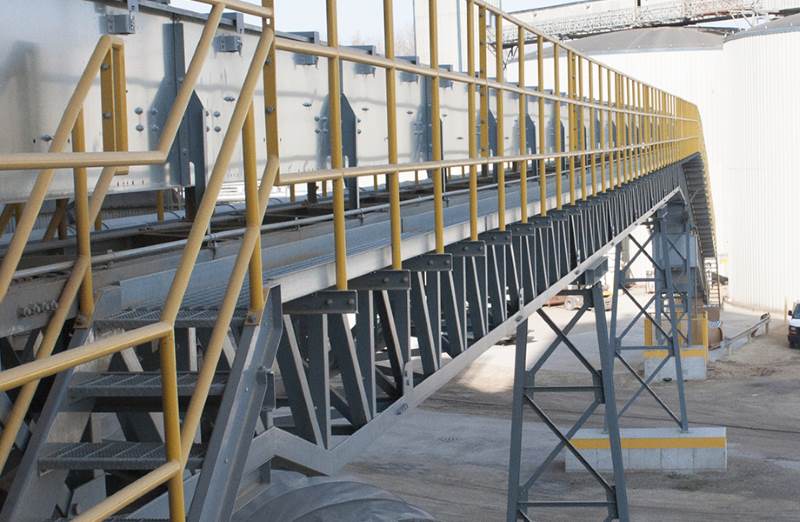

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Walkways

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Walkways

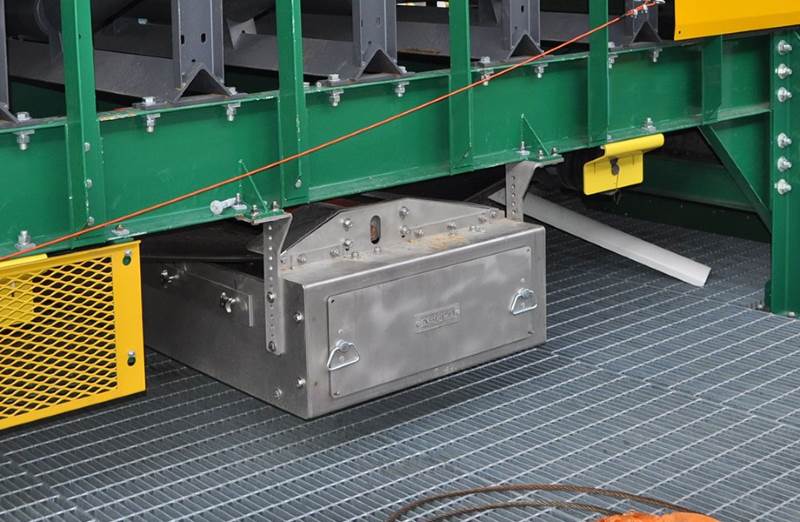

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Washbox TCTR

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Washbox TCTR

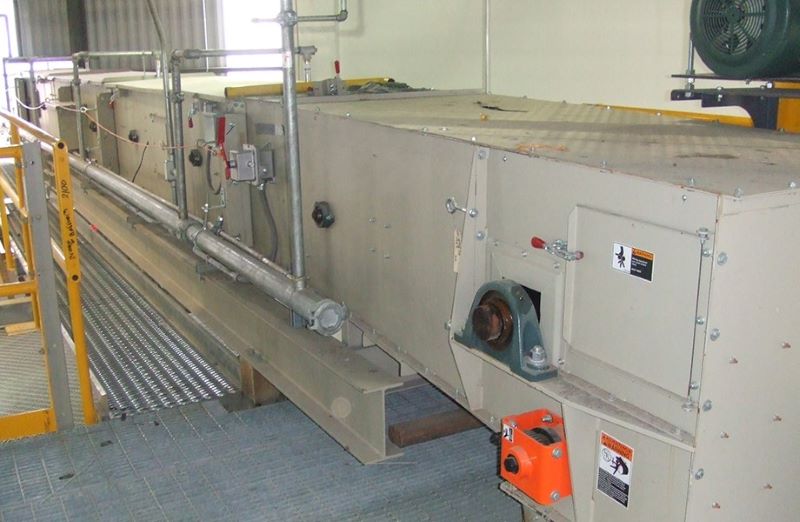

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Water Deluge Lines

Screen Buildings and Screen Feed&Discharge Conveyors Steel Structures for Gold Mines: Water Deluge Lines


Why ZHM Huawu Steel Dual Screen Station Towers Processing Crushed Sandstone?


Reliable_and_customized_DesignsG
Cutting_edge_designing_process
Free_online_Pricing_System
Easy_Bolt-by-number_Assembly
Reliable and Customized Designs Cutting Edge Designing Process Free Online Price System Easy Bolt-by-number Assembly
Over_two_decades_of_Experiencey
Value_Engineering_for_Money
Unmatched_In_Quality
Excellent_Customer_Service
Over Two Decades of Experience Value For Money Unmatched in Quality and Craftmanship Excellent Customer Service

Would you like to see more information and images of ZHM Huawu Steel's Dual Screen Station Towers Processing Crushed Sandstone? Visit our Photo Gallery.

HOW CAN WE HELP YOU?

ZHM’s world-class team — together with our raw material suppliers and subcontractors — works to solve your most challenging design, engineering, farbrication or construction issues.

Contact ZHM by telephone at +86 135-8815-1981 (wechat and whatsapp) or send us your questions via email to info@zhmsteelworks.com

More Pics
