How to Trim Metal Building Roof And Wall Cladding System

2024/4/16      view:

How to Trim Metal Building Roof And Wall Cladding System


The Trim and flashing of the metal building, which mainly uses for waterproofing. Generally refers to the colored metal sheet folding parts, which folded according to the actual size. In this article, we detail to introduce how to Trim Metal Building

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_2_Steel-Building-Trim-1
Steel Building Trim

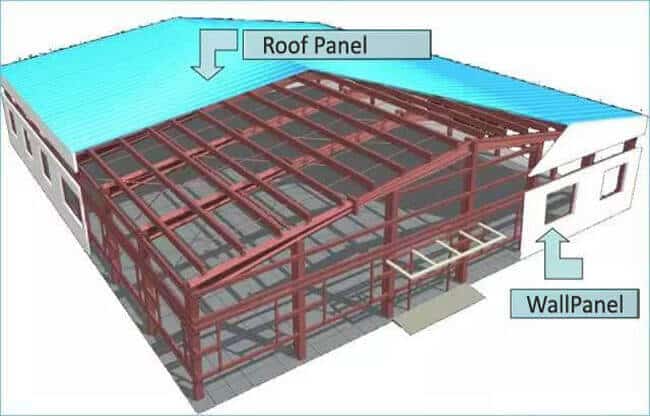

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_1_Steel-Building-Trim-2
Steel Building Trim


There are two main effects for Steel Building Trim :


It is preventing rain leakage; 2. Its uses for decoration.


Roof Trim System: roof ridge cap, eave trim, gable trim, gutter
Material: color steel coil, thickness: 0.4-0.6mm, length 4m, overlap length: 50-100mm.


1.Roof ridge cap


The ridge cover used on the roof of a steel structure building, where the two roofs meet at the ridge to prevent roof leakage and moisture penetration.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_3_Roof-Ridge-Trim
Steel Building Trim
How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_4_Roof-Ridge-Cap
Steel Building Trim

Steel Building Trim


2.Eave trim
The eave trim is located at the end of the roof panel near the top of the wall panel, creating a beautiful appearance, it also guiding the rainwater, which prevents it from falling on the wall panel and windows.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_5_Eave-Trim
Steel Building Trim
How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_6_Eave-Trim-2
Steel Building Trim

Eave Trim


3.Gable trim


Gable trim is a metal waterproof panel used at the intersection of roof panels and wall panels along the edge of the roofline. It used to block the color steel plates at the junction and prevent rainwater from seeping into the steel structure from the intersection.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_7_Gable-Trim-
Steel Building Trim

Gable Trim
How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_8_Gable-Trim-
Steel Building Trim

Gable Trim

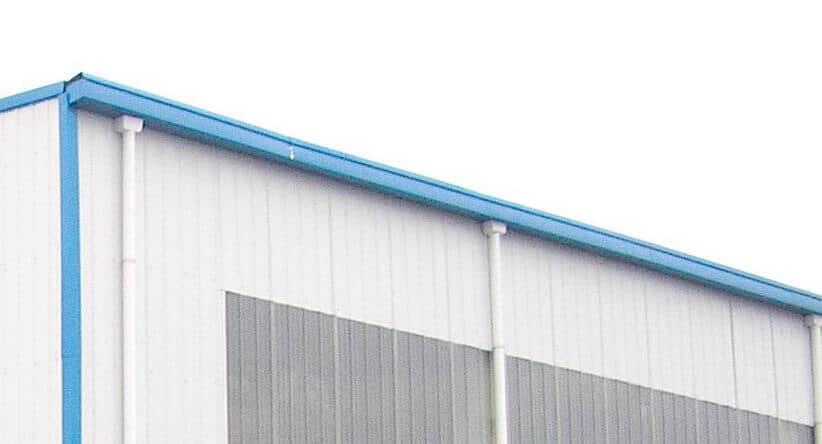

4.Gutter


The gutter can replace the edge of the cornice to guide the rainwater from the roof to the downspout. The downspout is connected to the channel and fixed on the wall girt. The rainwater flows to the ground and away from the foundation without encountering the wallboard.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_9_Gutter-
Steel Building Trim

Gutter

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_10_Gutter
Steel Building Trim
Gutter


5.Wall Corner trim


It uses at the corner of the wall, which applies to decorate the wall panels and prevent rainwater from flowing into the interior of the building.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_11_Wall-Corner-Trim-
Steel Building Trim
How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_12_Wall-Corner-Trim

Wall Corner Trim

Steel Building Trim


6.Base Trim
Its uses at the intersection between the wall panel and the foundation or brick wall. It uses to cover the foundation or brick wall to prevent rainwater from flowing into the interior of the metal building.

How_to_Trim_Metal_Building_Roof_And_Wall_Cladding_System_13_Base-Trim

Base Trim
