Structural Components of Steel Bridges
1. Beams – They are steel sections or fabrications that runs continuous from pier to pier to span the gap and support the weight of the bridge. Steel beams are the main structural components of the bridge. They come in different shapes, including I-beams or H-beams, box girders, and trusses.

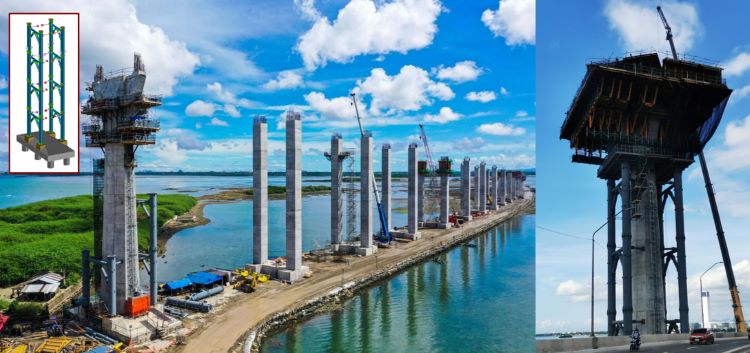

2. Columns - They provide vertical support for the bridge and anchorage to the foundation. Being in critical location and conditions, steel bridge columns especially water-borne, are normally reinforced concrete or combination of steel and reinforced concrete. Foundation construction including columns located in bodies of water requires the use of temporary or permanent steel casement to facilitate concrete casting. In some cases, steel columns are jacketed with concrete to provide protection to the steel against corrosion.
3. Girders – Steel girders can be plate girders or box girders and known as large beams. These steel components provide lateral support for the bridge. Girders has high load bearing capability and are designed to carry large amounts of dynamic and moving loads.
4. Deck - The deck of the bridge is the roadway or walkway surface that vehicles or pedestrians uses to pass. It is usually made of reinforced concrete or steel. Modern deck designs called as composite deck slabs involve galvanized sheet profiles as a reinforcement against positive moment and formwork for concrete placing at the same time. These galvanized sheet profiles are connected to beams or girders by fasteners or welding. The deck is supported by a series of girders that run parallel to the beams.
Types of Steel Bridges
1. Pedestrian bridge also called footbridge or overpass is designed solely for pedestrians, in short, an elevated walkway. It comes in different shapes and structural designs – rigid, truss, cable-stayed, arch, and more.
2. Highway bridge, road bridge, or skyway is an elevated major road structure for vehicles of all types. These types of bridges are constructed to avoid obstructions.
3. Railway bridge is designed to carry rail transits or passenger trains. The purpose of constructing railway bridge other than avoiding obstructions is to create an isolated, uninterrupted means of transportation which is way faster than the normal means.
1. Girder Steel Bridge – can either be done using truss girder or solid web girder. Solid web girder comes in two types: plate girder or box girder. Plate girders are also known as I-beam or H-beams while box girders have shapes of closed four-sided trapezoids. Plate girders are adopted for simply supported spans of less than 50 meters and box girders for continuous spans up to 250 meters. Truss girders are suitable for bridges at span range of 30 meters to 350 meters.
3.Cable-stayed Steel Bridge – depends on a tower or pylon that extends high where the high-tension cables or tendons that carries the deck are anchored or tied-up. This type of bridges is economical for spans of 150 meters up to over 500 meters. In this type of bridge support system, the cables originate from the top of pylon and runs directly to the girders at intervals appearing like the ribs of a fan. Towers or pylons are reinforced concrete, fabricated structural steel, or combination
4. Suspension Steel Bridge – The difference between cable-stayed bridge and suspension steel bridge is the arrangement of the cables or stays. In suspension bridge, the cables supporting the deck are suspended vertically from the main cable. The cables are distributed both at the top and bottom making them in right angle with the deck. The main cables that hold the stays runs from tower to tower and deeply anchored at ground at both ends. Suspension bridges are the best solutions for long span bridges.
Advantages of Steel Bridges
2. Long span - Steel bridges can span long distances with minimal or without the need for intermediate supports. This makes them suitable for crossing large bodies of water, valleys, and other obstacles.
3.Speed of construction - Steel bridges can be prefabricated off-site and then assembled on-site. This enables reduction of construction time due to multiple tasks that can take place simultaneously with each other. It also enhances quality and safety due to controlled production environment and parameters.
4. Low maintenance - Steel bridges require minimal maintenance, as they are resistant to corrosion and deterioration when properly equipped with protection. This makes them cost-effective in the long run especially with the ability of steel to be relocated, replaced, re-used, and re-cycled.
5. Aesthetically pleasing – Monumental bridges are mostly steel bridges because they can be designed to be aesthetically pleasing, with unique shapes and designs that complement their surroundings.
Areas of Improvement: Steel Bridges
2. Thermal expansion - Steel bridges can expand and contract with temperature changes, which can cause stress on the structure. This requires careful design and construction to avoid damage.
3. Cost – At some project extent, steel bridges can be more expensive than other materials, such as concrete or wood.
4. Environmental impact - The production of steel requires significant energy and resources, which can have a negative environmental impact.
Expert Touch on Steel Bridges

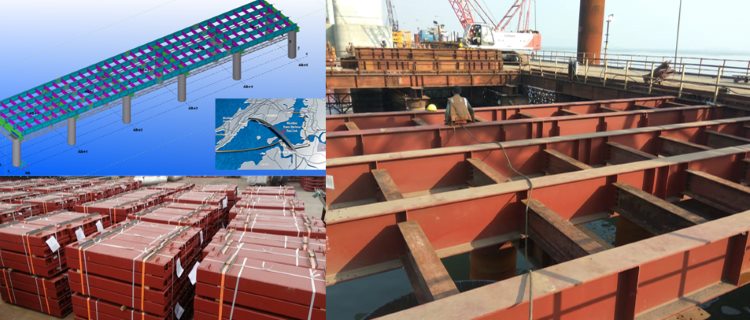

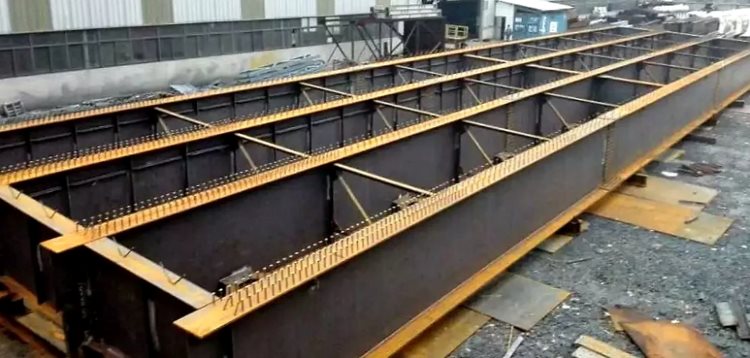

steel bridge girders
Today’s broad capability and experience of ZHM Huawu Steel in Steel Bridge Structures resulted from a long and successful journey in challenging and engaging world-wide projects involving multiples kinds of the following:
- Steel highway bridges
- Railway Bridges
- Movable Bridges – e.g., Bascule, Swing
- Heavy truss structures
- Multiple plate girders
- Trapezoidal box girders
- Suspension Bridges
- Steel Arch Bridges
- Temporary or Modular bridges
- Bailey Bridge
- Special Bridges, and more
Why ZHM Huawu Steel pre-engineered bridge ?
 |
 |
 |
 |
| Reliable and Customized Designs | Cutting Edge Designing Process | Free Online Price System | Easy Bolt-by-number Assembly |
 |
 |
 |
 |
| Over Two Decades of Experience | Value For Money | Unmatched in Quality and Craftmanship | Excellent Customer Service |
Would you like to see more information and images of ZHM’s Metal Steel Structure pre-engineered bridge ? Visit our Photo Gallery.
