The compact 100 Bailey bridge (HZCB100) (you may also want to know Compact 200 Bailey Bridge) is a steel truss bridge that can be used as a temporary bridge or a semi-permanent bridge. Due to the modular design of the compact 100 Bailey bridge, the components have good interchangeability, reusable, simple structure, convenient transportation, and rapid erection period. It is widely used in various construction trestle bridges, suspension bridges, construction platforms, and cast-in-place construction formwork support, large tonnage gantry crane, bridge erecting machines, etc.

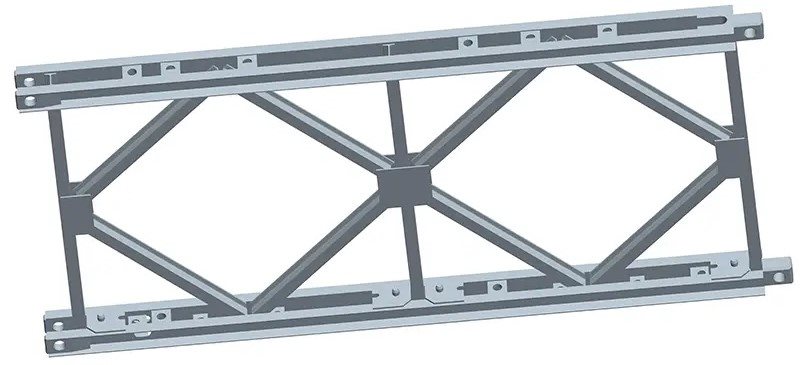

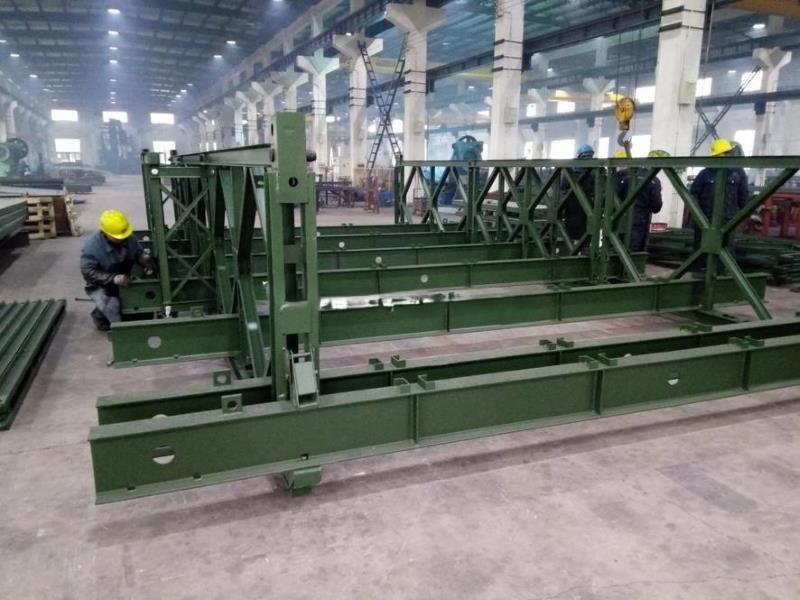

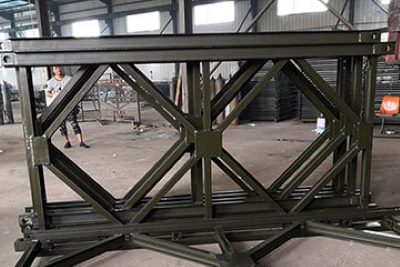

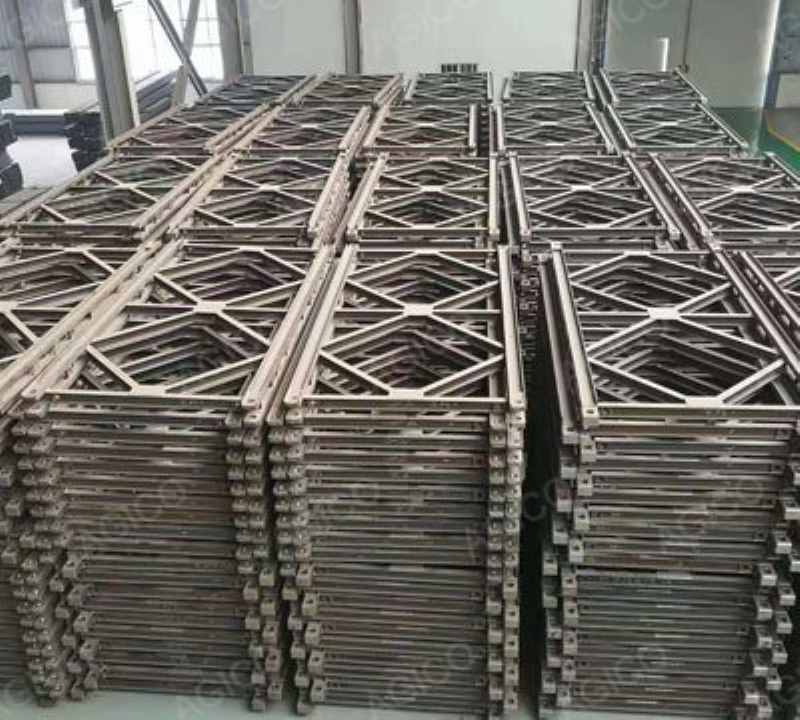

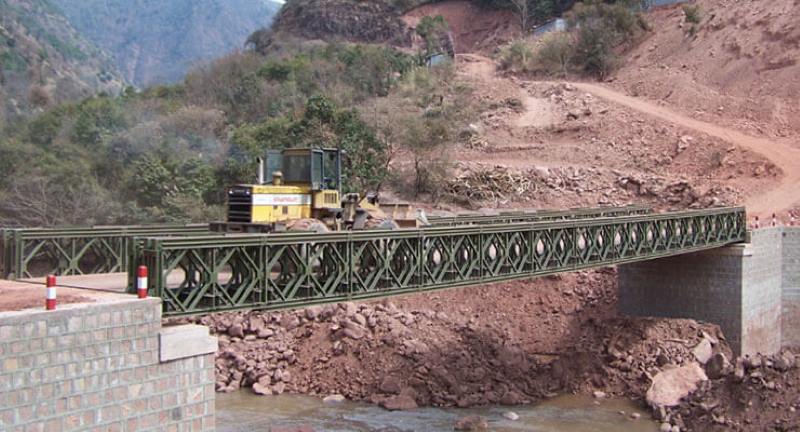

Photos of Compact 100 Bailey Bridge (HZCB100)

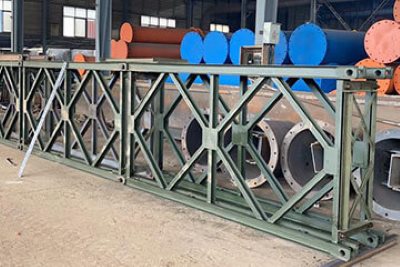

HZCB100 Bailey bridge panel	HZCB100 Bailey bridge panel

Specifications

1.military structed
2.conveniently-transported
3.rapid erection/easy assembled/fast installed
4 huge load
5.Long service life
6.strong corrosin resistance

Bailey Bridge is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. Using the bridge equipment, the suspension bridges of varied span can be erected. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like compact 100,compact 200 International bridge. It is assembled by each 3m panel, and invented by Donald Bailey. The 321 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins. It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temprary or permanent bridge.Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc. Portable Steel Bridge can change by 3.048m as a segment to assemble various bridges.

• · Bailey Bridge is the most popular type of bridge which is used widely all over the world. Bailey Bridge has simple structure and can be transported, installed and disassembled easily. Bailey Bridge also has the advantage of heavy load capacity, strong structure rigidity and long fatigue life.
• · The panel is the basic component of Bailey Bridge, with the dimension of 3.048 x 2.134m. The length of bridge can change by 3.048m as a segment to assemble bridges with various spans and loads.
• · The width of carriageway is 4.2m single lane and 7.35m double lanes.
• · The surface processing is painted or galvanized according to the requirement.
•


Tag: bridge components, bailey steel bridge, two/double lane bailey bridge/compact steel bridge
