Steel Structure Workshop In Mozambique

2024-6-22 11:58:45
Steel Structure Workshop In Mozambique

Steel Structure Worksho

Introduction
Steel Structure Workshop In Mozambique

ZHM Huawu Steel design, manufacture, and delivered the Steel Structure Workshop in Mozambique. The steel structure workshop in Maputo, the capital of Mozambique, which is used to produce mineral water. The Republic of Mozambique located in southeastern Africa, with a population of approximately 30 million, and its official language is Portuguese. The local mineral resources are abundant and attract a lot of foreign investment.

Metal Building Kits


Steel Structure Workshop In Mozambique


Steel Structure Workshop In Mozambique


Project Description


The owner of this steel structure factory building is a Portuguese company, which invested and built a factory in Mozambique.

The size of the steel structure workshop in Mozambique as follows:


Length: 50m, width: 50m, eave height 6.5m, and height of parapet wall 2m.

The width of the workshop is 50 meters. To save the quantity of steel structure, we added a center pillar. Therefore, there is two-span, and each span is 25 meters wide.

The steel structure workshop in Mozambique is designed and produced by our company, and the owner hires local workers to construct according to the installation drawings provided by us.

We market a number each steel component, which is consistent with the number of the installation drawing so that workers can refer to the installation drawing for construction.


The components of the steel structure workshop in Mozambique:


Foundation: It uses the embedded anchor bolts.
The foundation is the hinged connection, columns connected with the foundation through the anchor bolts.
Steel column, roof beam: Q345B welded H-shaped steel,
Tie beam: welded round pipe
Bracing: rod steel.
Roof purlin: Z-shaped steel
Wall purlin: C-shaped steel
Roof and wall panel: 75mm EPS sandwich panel.

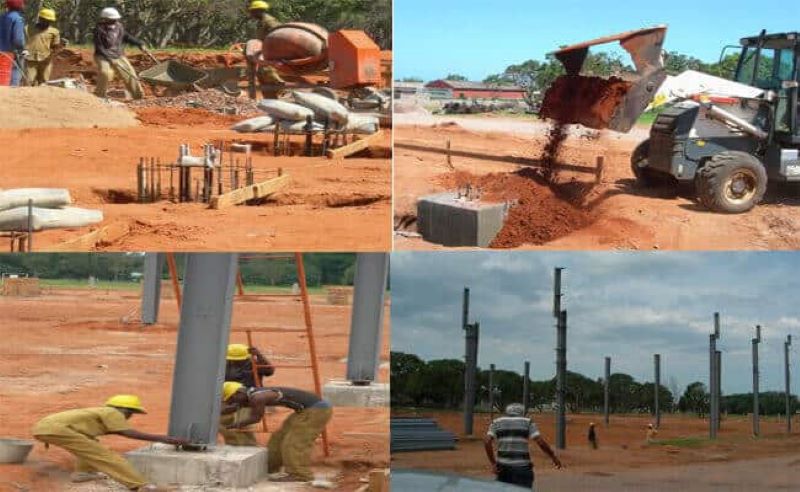

Installation sequence of steel structure workshop:


Make the foundation of steel structure and embed anchor bolts.
Install steel columns and bracing between columns.
The steel column connected the embedded anchor bolts. The column bracing is a steel rod, which can stabilize steel columns.
Install roof beams and horizontal roof bracing. The steel column and the roof beam are connected through high-strength bolts without on-site welding.

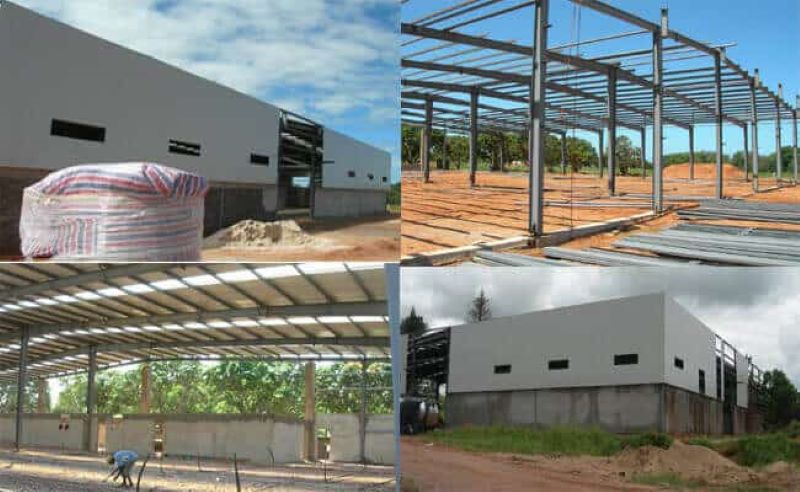

After installing the steel columns and beams, then erect the roof purlins and wall girt, and finally, the enclosure structure plus window, door.

Ask a Free Quote

Steel Structure Workshop In Mozambique


Steel Structure Workshop In Mozambique


Steel Structure VS Concrete Structure


At present, more and more workshop buildings choose to use steel structure buildings. Compared with concrete structures, steel structure workshop have many advantages.


1. The steel structure building is dry construction and does not need to use a lot of water. It can protect water resources and save water for arid and water-deficient Africa.
2. The steel structure is light in weight, and the amount of soil taken from the foundation is small, which can protect land resources. The cost of the foundation is also low compared with civil construction.
3. The installation is simple. Bolts connect most of the steel components, and only a few of them need to weld on site.
4. Long service life. Concrete structures will become construction waste in 50 years, while steel structures still used in 50 years.

Features of steel structure workshop:


1. The steel used in the steel structure workshop has good plasticity, and generally will not break suddenly due to accidental overload or partial overload. Steel has good toughness, making the structure more adaptable to dynamic loads.
2. Steel structure workshop building adopts uniform material steel, with high structural reliability.
3. The steel structure used in the workshop building is tall in strength and light in architecture, which could apply to construct a large span structure.
4. The steel has strong weldability, which simplifies the connection of the steel structure and suitable for the manufacture of various complex shapes and structures.


Steel Structure Workshop In Mozambique

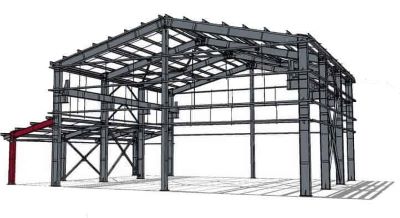

The Design of Steel Structure Workshop


Compared with the traditional building model, the factory has more prominent advantages and is favored by many builders and enterprises. So, we need to pay attention to the issues in the design of steel structure workshop buildings. The attention to the design of steel structure workshop: Load-bearing of steel workshop building The first thing that needs to be solved in the design of steel structure factory buildings is the load-bearing. The steel structure workshop building must withstand construction, rain, dust, wind, snow, and maintenance loads. The load-bearing performance of the metal roof panel is related to the section characteristics of…

Read more
